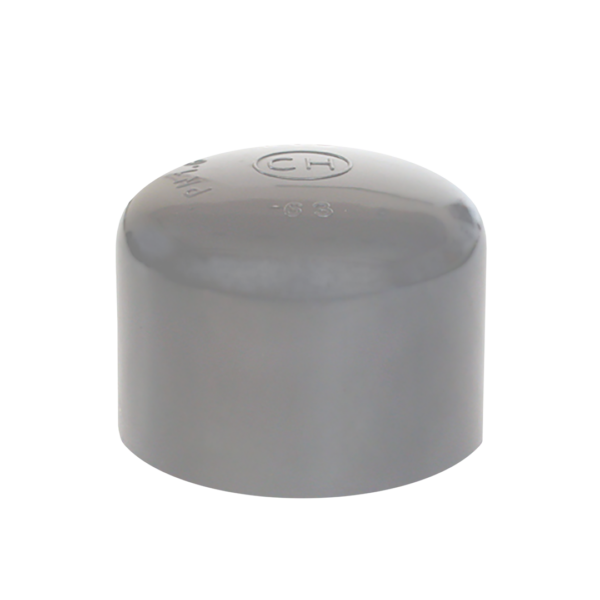

Cap
MODEL:
CANI
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Work Conditions:
- Cement joint fittings: PN16.
- Threaded fittings: PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a tetrahydrofuran adhesive for solvent cement fittings is recommended.

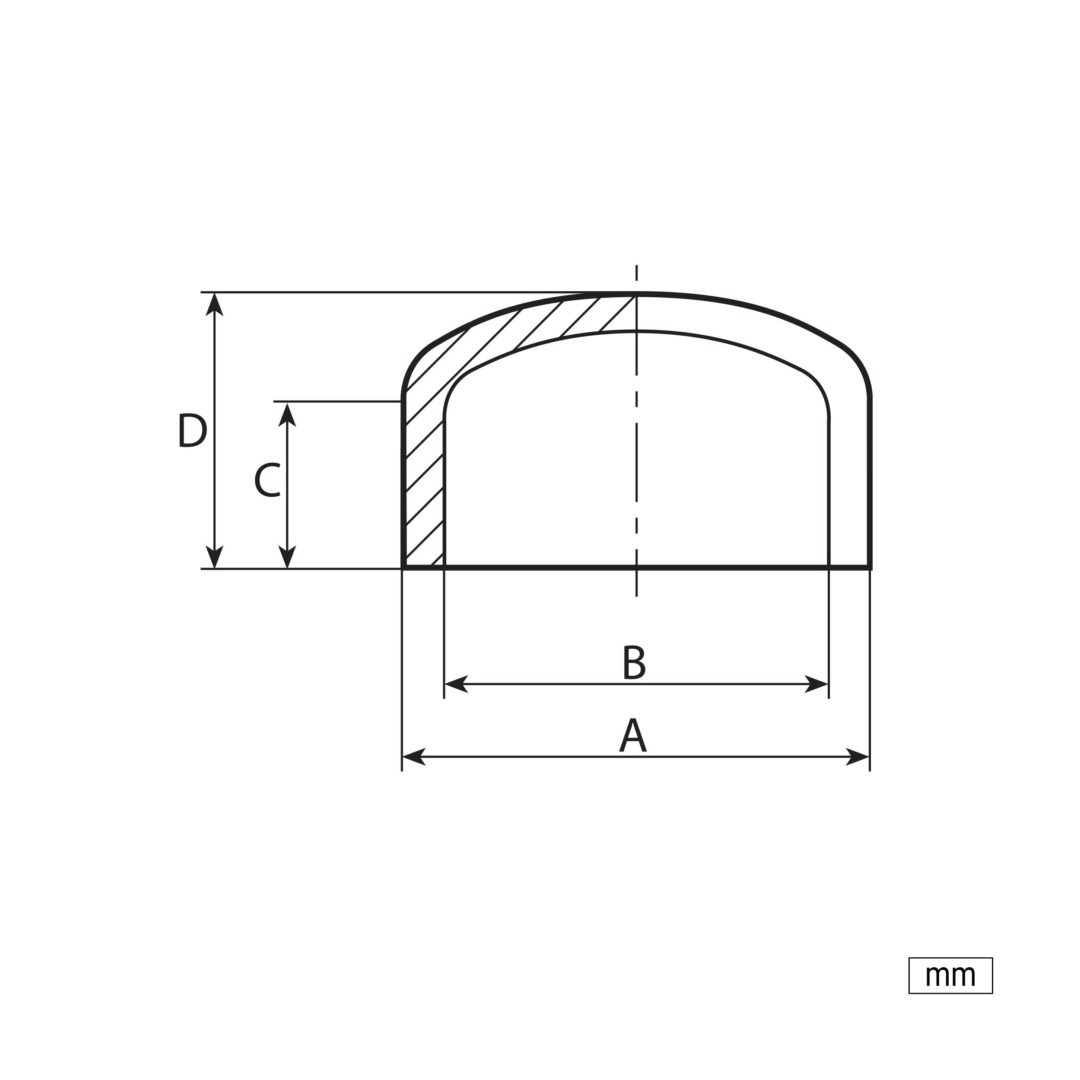

Dimensions & Performances
ZOOM IN
| Code | A | B | C | D | PN | Ø |
|---|---|---|---|---|---|---|
| CANI−0050 | 50 | 63 | 31 | 47 | 16 | 50 |
| CANI−0063 | 63 | 75 | 38 | 59 | 16 | 63 |
| CANI−0075 | 75 | 90 | 44 | 61 | 16 | 75 |
| CANI−0090 | 90 | 110 | 51 | 75 | 16 | 90 |
