Complete filtration housing
MODEL:
CJA
MANUFACTURER:
Complete technical filtration housing, manufactured in polyester and fiberglass, reinforced lid in blue colour lid including -for its opening and closing- two pneumatic dampeners.
JUMBO series housings are specially designed for incorporating the ARTIK filter series of Ø760mm.

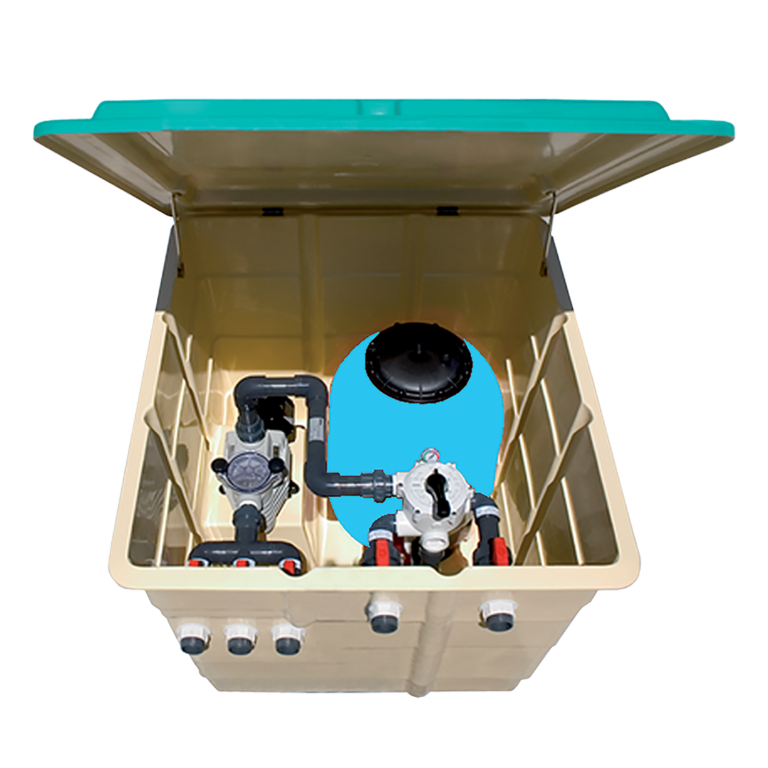

Housing consisting of a filter, pump, selector valve, pressure gauge, five ball valves Ø63 for the skimmer, the bottom, bottom cleaners, drainage and return.
Specifications
- Assembled and tested for 1.5Kg/cm².
- Filtration speed: 50m³/h/m².

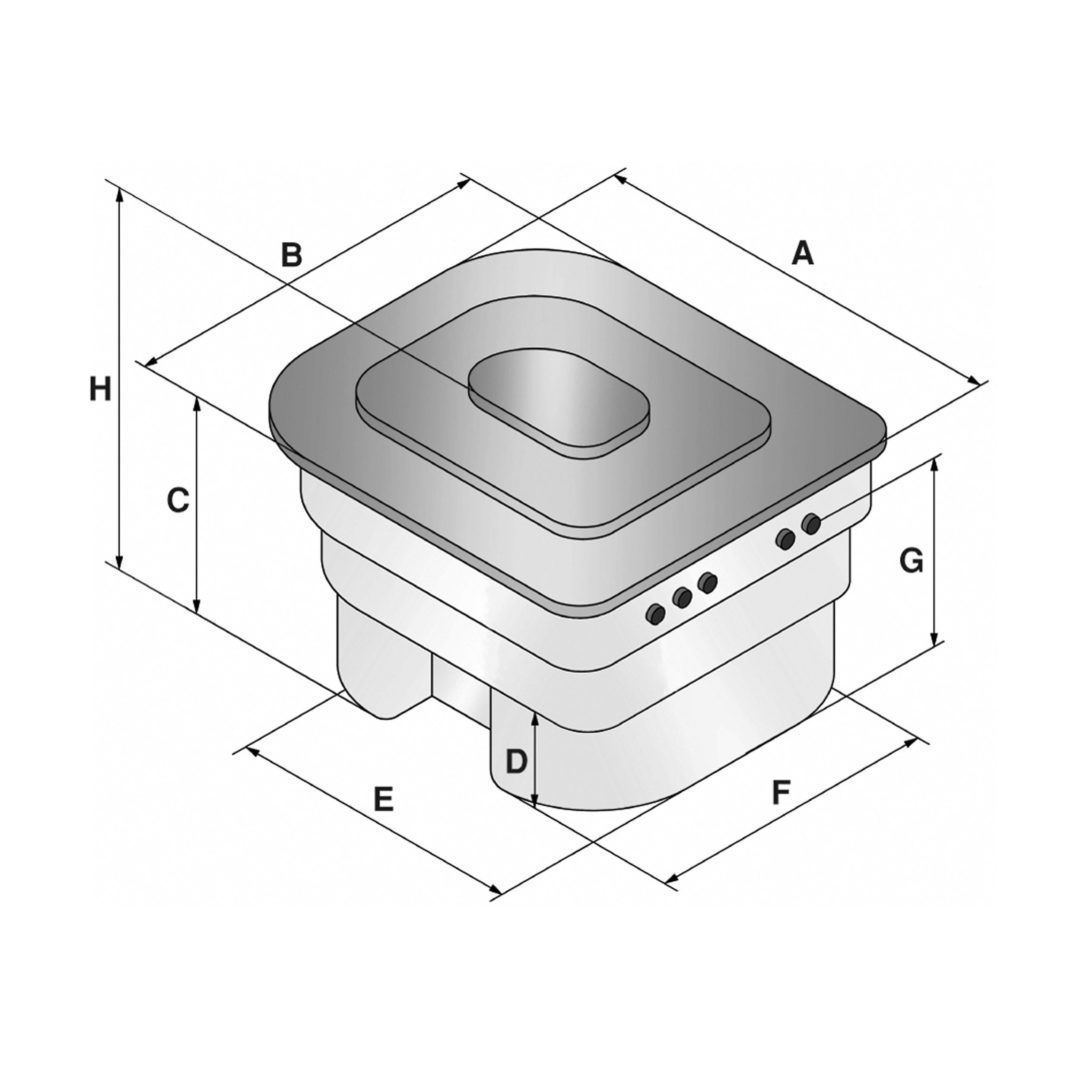

Dimensions & Performances
ZOOM IN
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| CJA76.20.B | 1750 | 1550 | 1050 | 450 | 1480 | 1150 | 850 | 1150 |
