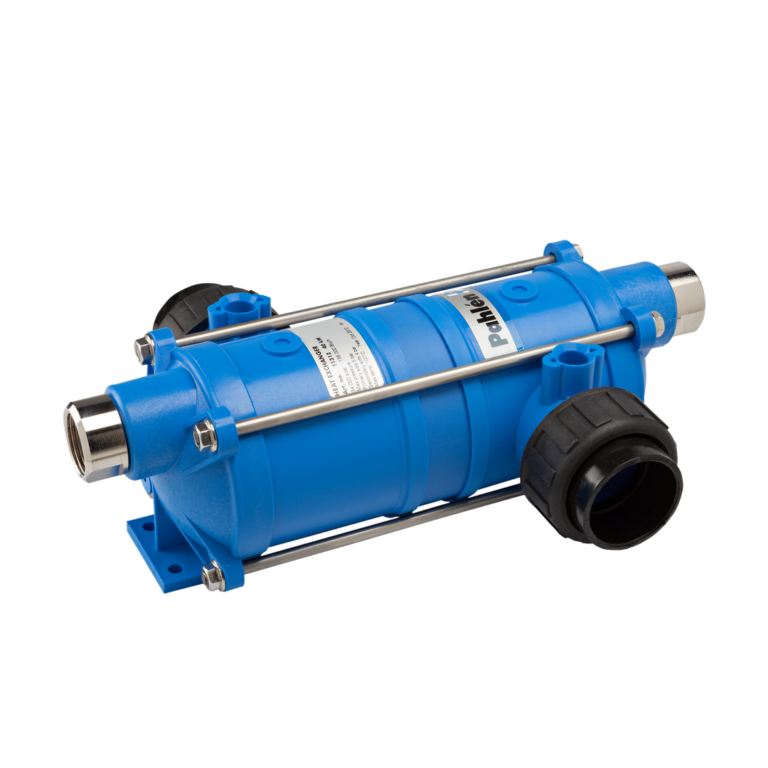

Pahlen Hi-Temp heat exchangers are designed to suit all types of swimming pools and spas, where low-pressure drop and high heat capacity are required.
The heat exchangers are supplied with union connections or adhesive bonding of Ø 50mm pipes. All models are light and compact and can be connected to a boiler, heat pump, solar collector system or another heat source.
The secondary (pool water) side is made of glass-fibre-reinforced plastic and the primary (hot water) side is made of acid-resistant stainless steel.
Max. pressure: Primary side (hot water) 5 bar, Secondary side (pool water): 4 bar.
|Model||kW||A (mm)||B (mm)||C (mm)|
|11312 (HT 40)||40||277||360||315|
|11314 (HT 75)||75||454||535||492|
