Complete filtration housing
MODEL:
CM/CS
MANUFACTURER:

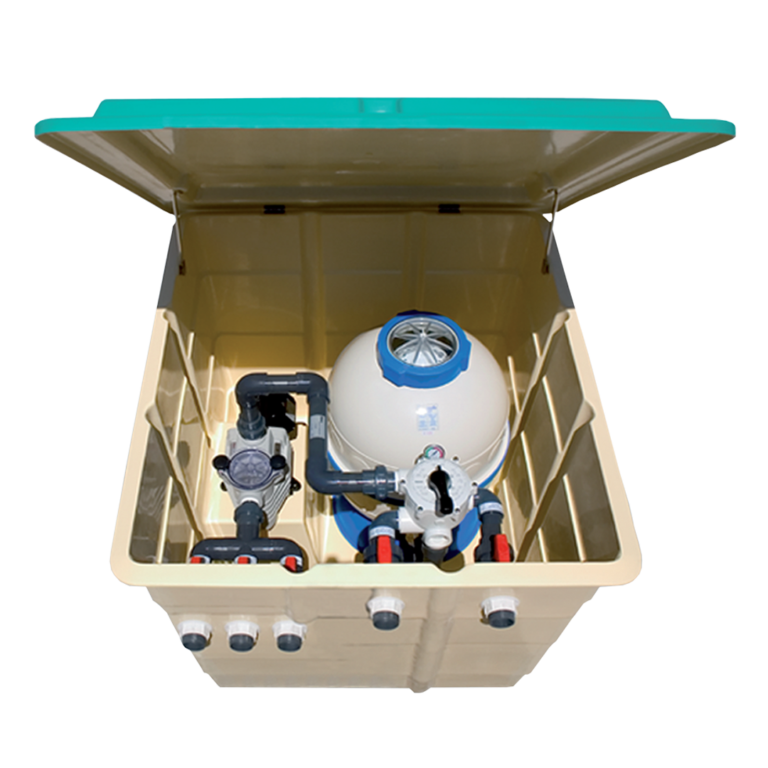

Complete technical filtration housing, manufactured in polyester and fiberglass with reinforced green colour lid.
Includes: filter, pump, selector valve, pressure gauge, five ball valves for the skimmer, the bottom, bottom cleaners, drainage, and return.
Specifications
- Assembled and tested for 1.5Kg/cm².
- Filtration speed: 50m³/h/m².

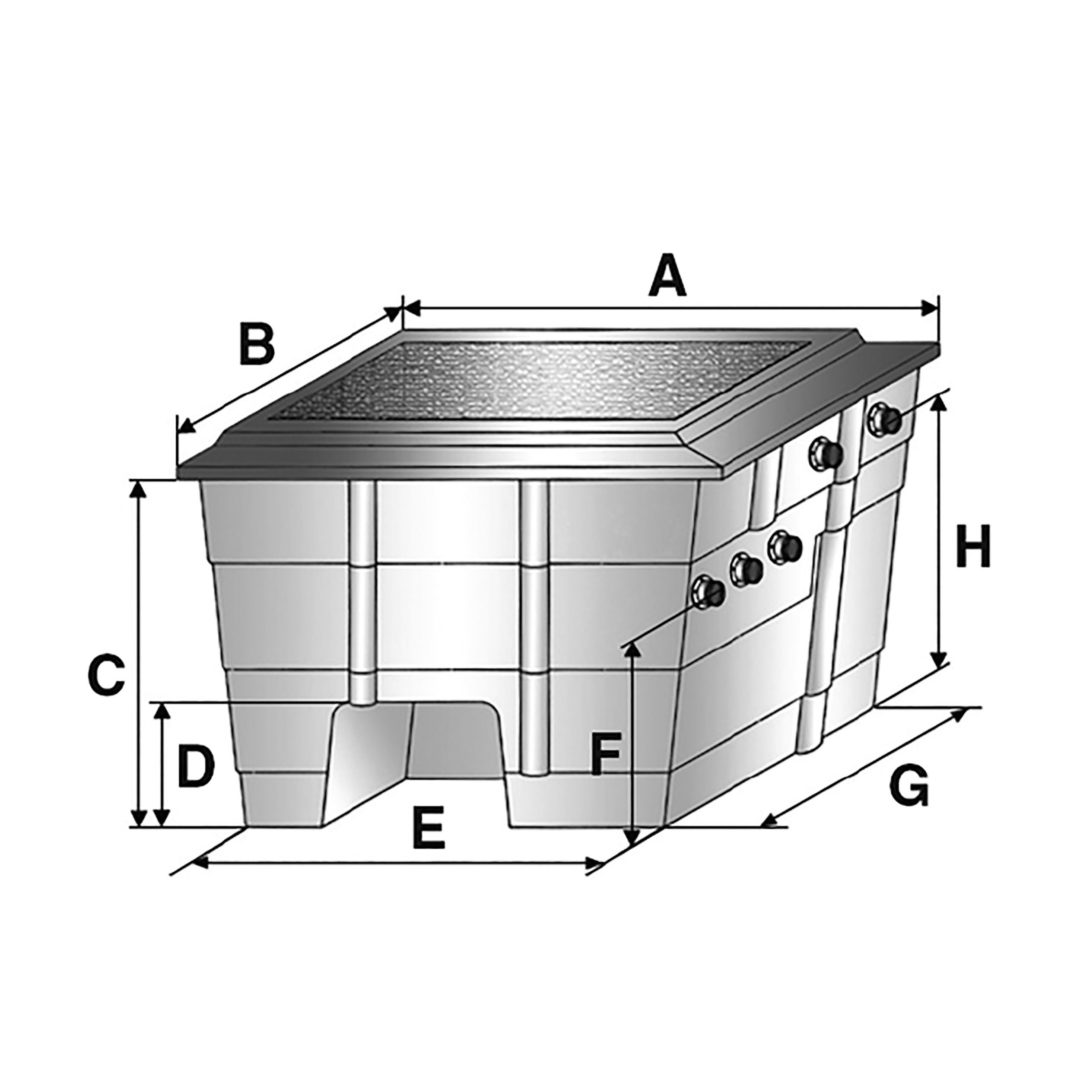

Dimensions & Performances
ZOOM IN
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| CMGO506-71.B | 1150 | 1030 | 800 | 175 | 900 | 350 | 800 | 665 |
| CSGO606-100.B | 1270 | 1170 | 850 | 295 | 1000 | 495 | 890 | 675 |
