19512

Elbow 90°H/M

MODEL: 73015
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN 16 bar.
    From 160mm to 315mm = PN 10 bar.
  • Threaded fittings:
    All sizes PN 10 bar.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

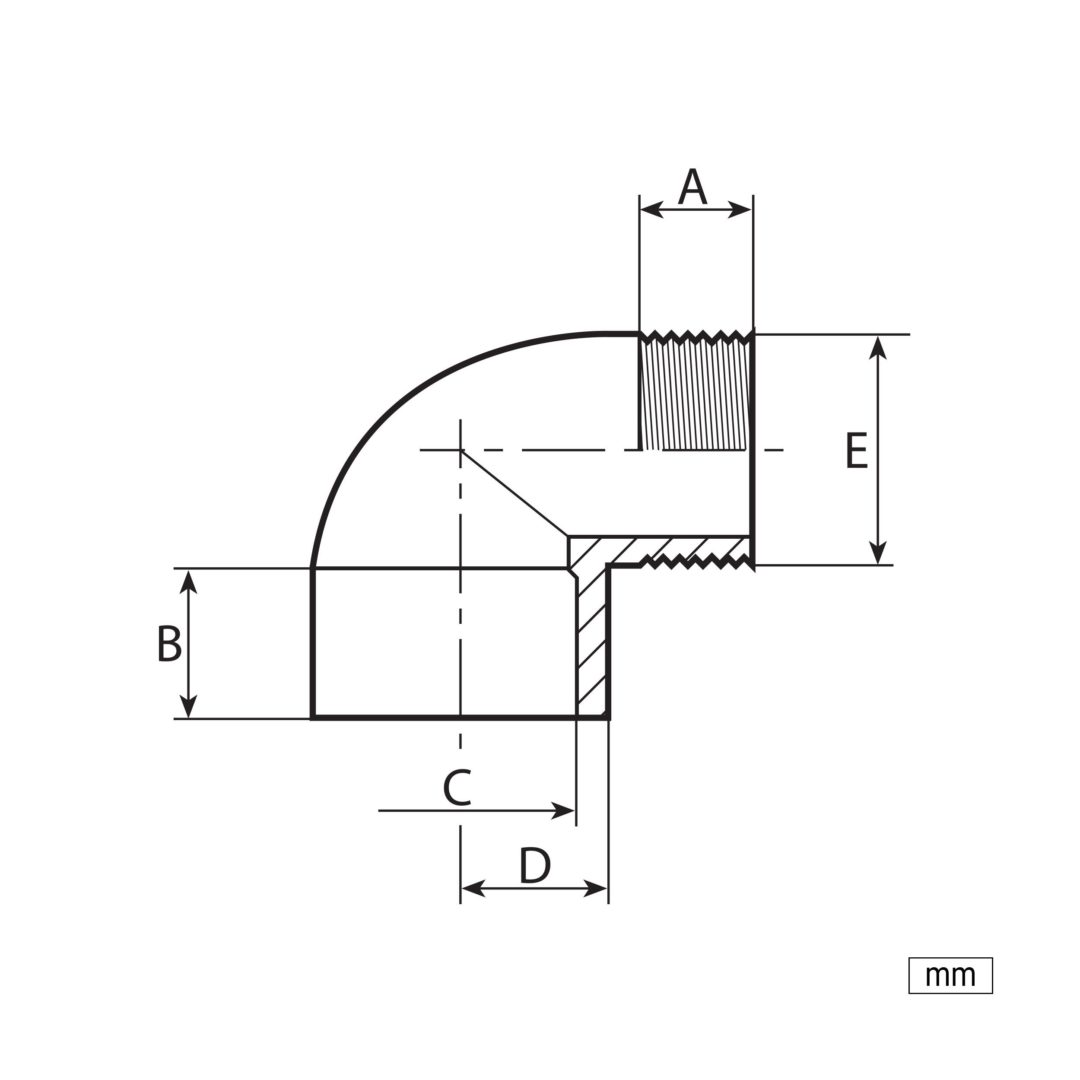

    Dimensions & Performances
    CodeØABCDE
    730153232-1¼”19,52232411¼”
    730155050-1½”233150611½”
    730155150-2”263150622”
    730156363-2”253863762”
