Transformer
MODEL:
SLT
MANUFACTURER:

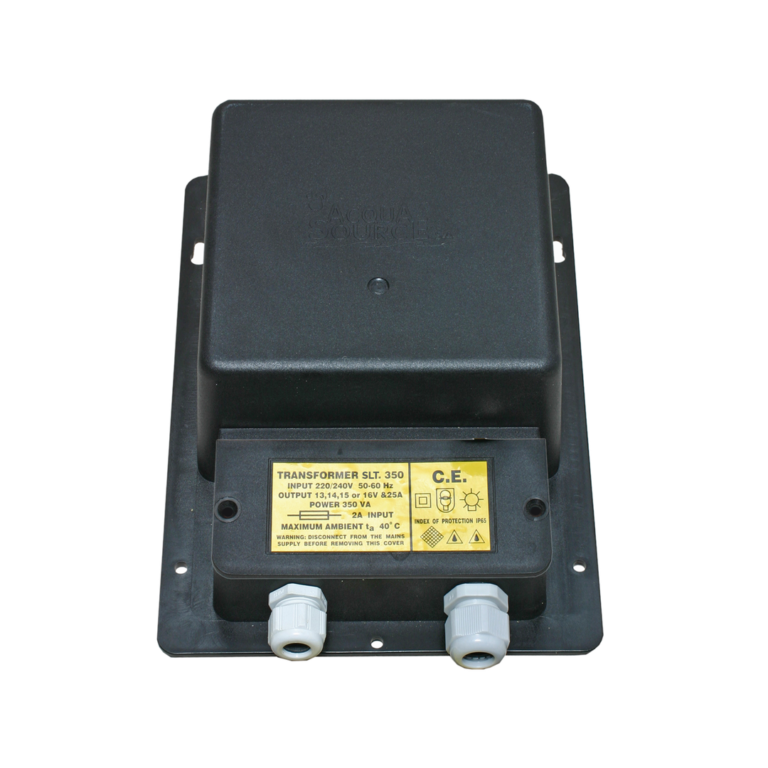

Transformer encapsulated in cast resin material protected by a plastic cover-box. Available in 150W up to 800W with 220-240V primary voltage and secondary output voltage 12V, 24V or multi-voltage 13/14/15/16V.
This variation in output voltage does not allow voltage drop between transformer and connection box in order to suit a range of different lengths and sizes of cable.
Fixation on the wall.
IP protection: IP65. 50/60Hz.
Specifications
- Material: plastic cover, unit filled with resin.
- IP protection: IP65.
- Installation: on the wall.
- Multiport voltages.

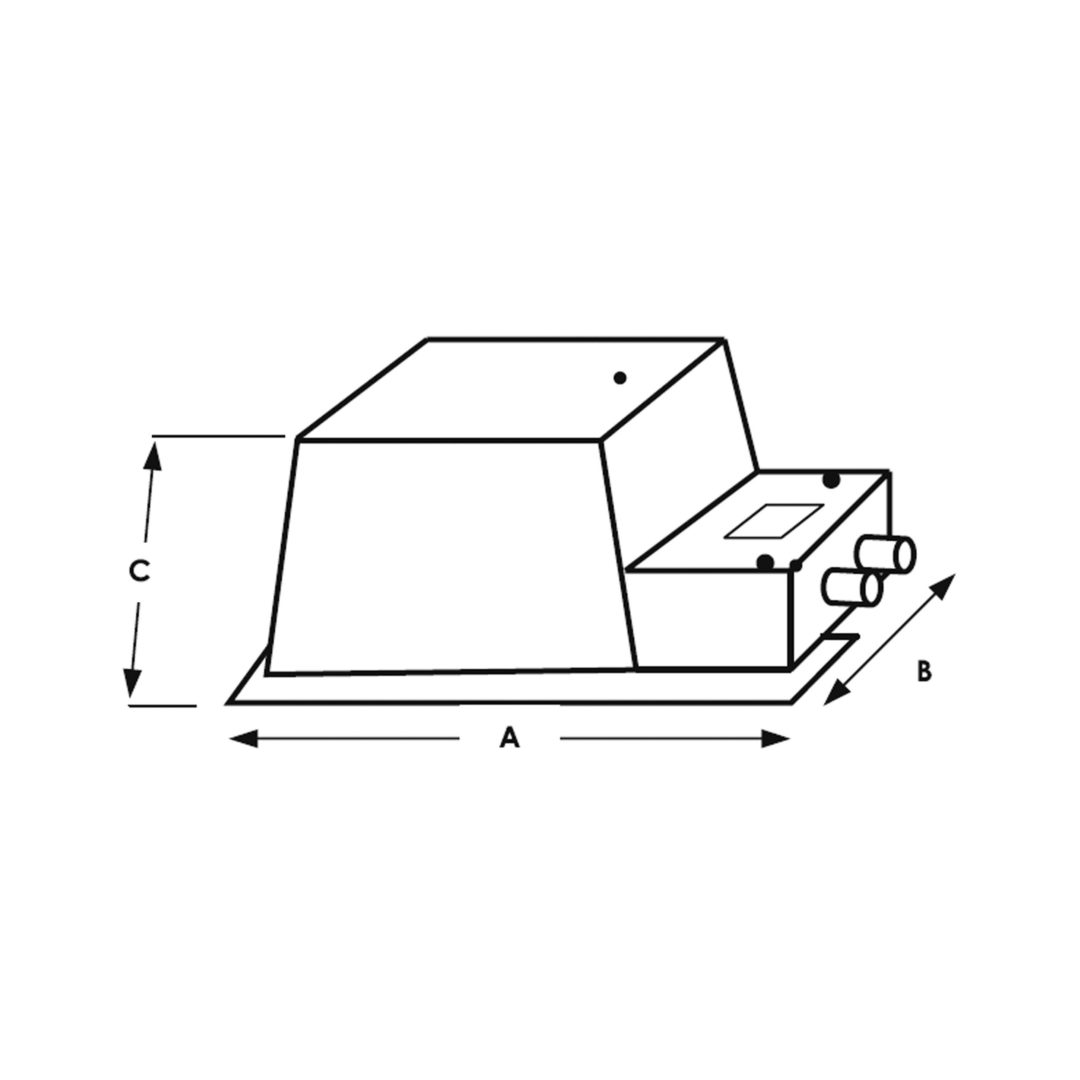

Dimensions & Performances
ZOOM IN
| Model | Primary | Secondary | Power | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|---|
| SLT-150 | 220-240V | 13/14/15/16V | 150W | 225 | 180 | 110 |
| SLT-151 | 220-240V | 12V | 150W | 225 | 180 | 110 |
| SLT-152 | 220-240V | 24V | 150W | 225 | 180 | 110 |
| SLT-350 | 220-240V | 13/14/15/16V | 350W | 225 | 180 | 110 |
| SLT-351 | 220-240V | 12V | 350W | 225 | 180 | 110 |
| SLT-352 | 220-240V | 24V | 350W | 225 | 180 | 110 |
| SLT-800 | 220-240V | 13/14/15/16V | 800W | 278 | 203 | 92 |
| SLT-801 | 220-240V | 12V | 800W | 278 | 203 | 92 |
| SLT-802 | 220-240V | 24V | 800W | 278 | 203 | 92 |
