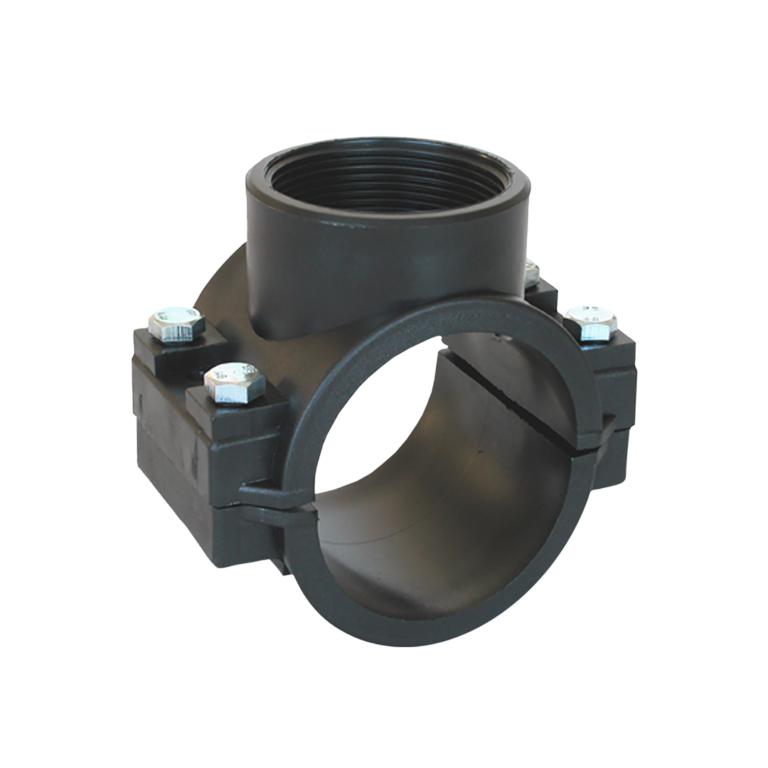

Clamp saddle PN10

MODEL: 7601
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN 16 bar.
    From 160mm to 315mm = PN 10 bar.
  • Threaded fittings:
    All sizes PN 10 bar.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

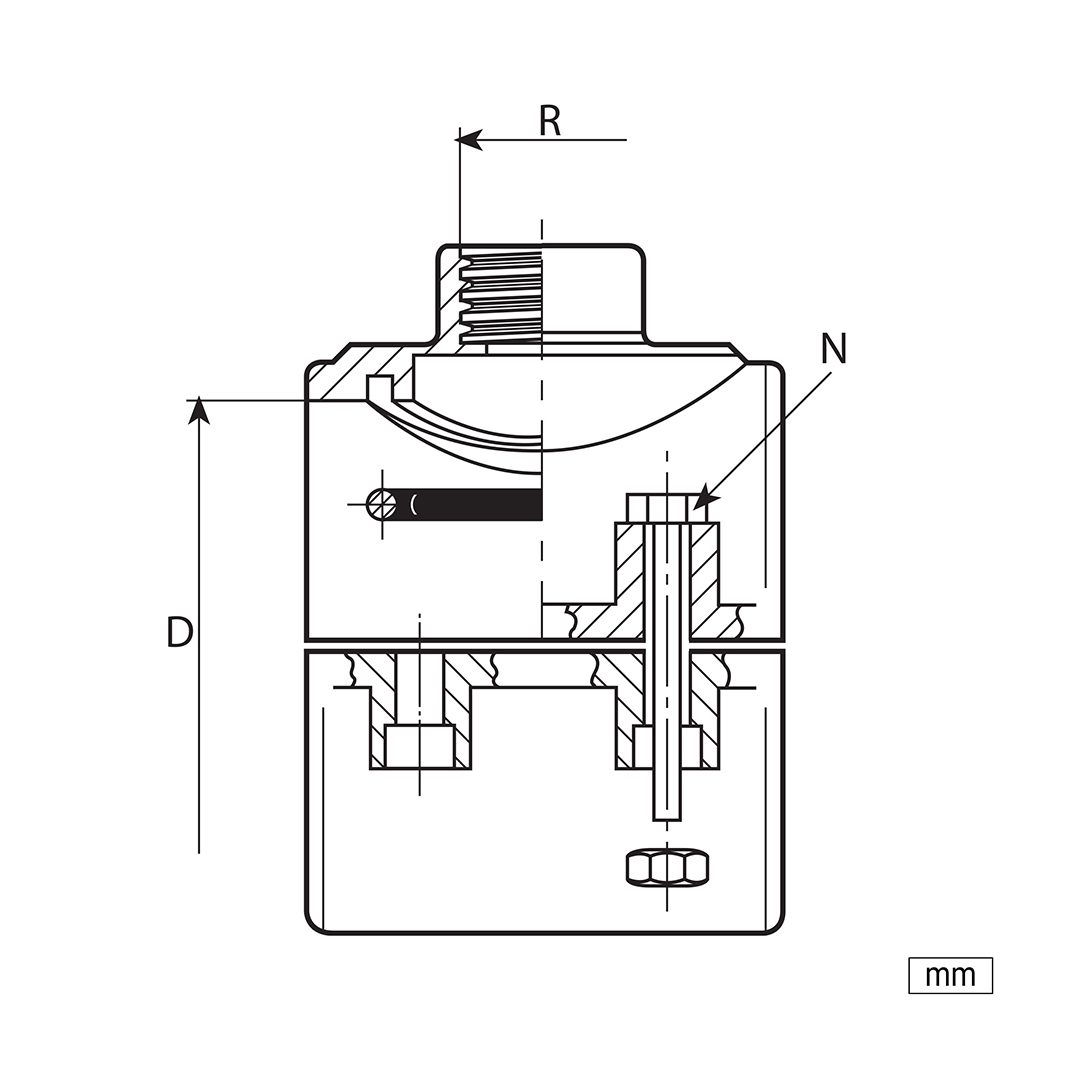

    Dimensions & Performances
    CodeD−R  (Ø Thread)N (Screws)
    760102020−½”2
    760102525−½”2
    760102625−¾”2
    760103232−½”2
    760103332−¾”2
    760103432−1”2
    760104040−½”2
    760104140−¾”2
    760104240−1”2
    760105050−½”2
    760105150−¾”2
    760105250−1”2
    760105350−1¼”2
    760106363−½”4
    760106463−¾”4
    760106563−1”4
    760106663−1¼”4
    760106763−1½”4
    760107575−½”4
    760107675−¾”4
    760107775−1”4
    760107875−1¼”4
    760107975−1½”4
    760108075−2”4
    760109090−½”4
    760109190−¾”4
    760109290−1”4
    760109390−1¼”4
    760109490−1½”4
    760109590−2”4
    7601109110−½”4
    7601110110−¾”4
    7601111110−1”4
    7601112110−1¼”4
    7601113110−1½”4
    7601114110−2”4
    7601115110−2½”4
    7601125125−¾”4
    7601126125−1”4
    7601127125−1¼”4
    7601128125−1½”4
    7601129125−2”4
    7601130125−2½”4
    7601140140−1”6
    7601141140−1¼”6
    7601142140−1½”6
    7601143140−2”6
    7601144140−3”6
    7601160160−1”6
    7601161160−1¼”6
    7601162160−1½”6
    7601163160−2”6
    7601164160−3”6
    7601165160−4”6
    7601199200−1”6
    7601200200−1¼”6
    7601201200−1½”6
    7601202200−2”6
    7601203200−3”6
    7601204200−4”6
    7601225225−1”6
    7601226225− 1¼”6
    7601227225−1½”6
    7601228225−2”6
    7601229225−3”6
    7601230225−4”6
    7601250250−1”6
    7601251250−1¼”6
    7601252250−1½”6
    7601253250−2”6
    7601254250−3”6
    7601255250−4”6
    7601315315−1”6
    7601316315−1¼”6
    7601317315− 1½”6
    7601318315−2”6
    7601319315−3”6
    7601320315−4”6
