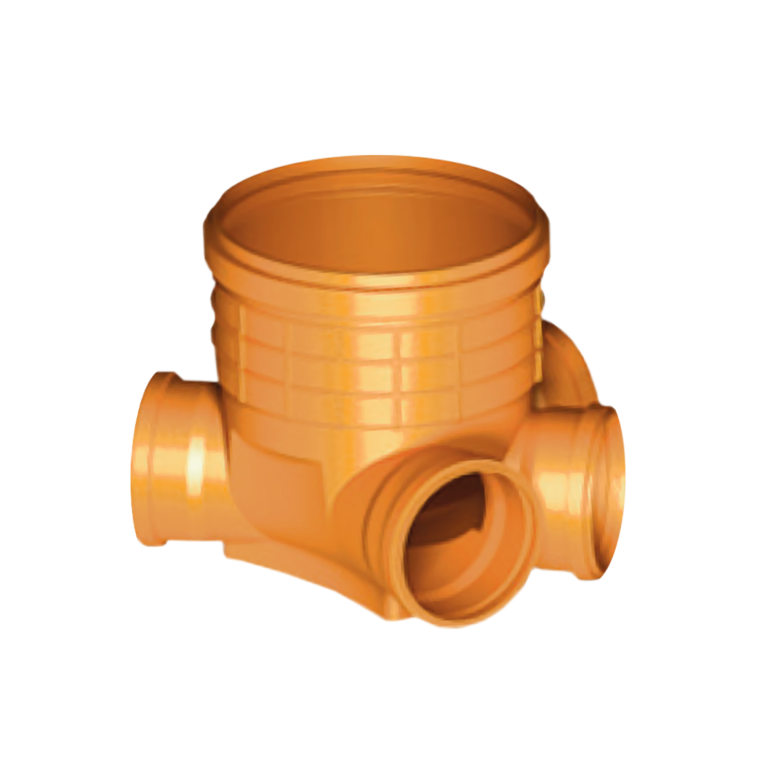

Drain manholes, 1 inlet/3 outlets
MODEL:
293151601300
Pipes for domestic and street sewerage systems together with the appropriate coupling sleeves are intended to be used for the removal of all kinds of wastewater.
They are produced from unplasticized polyvinyl chloride (PVC-U).

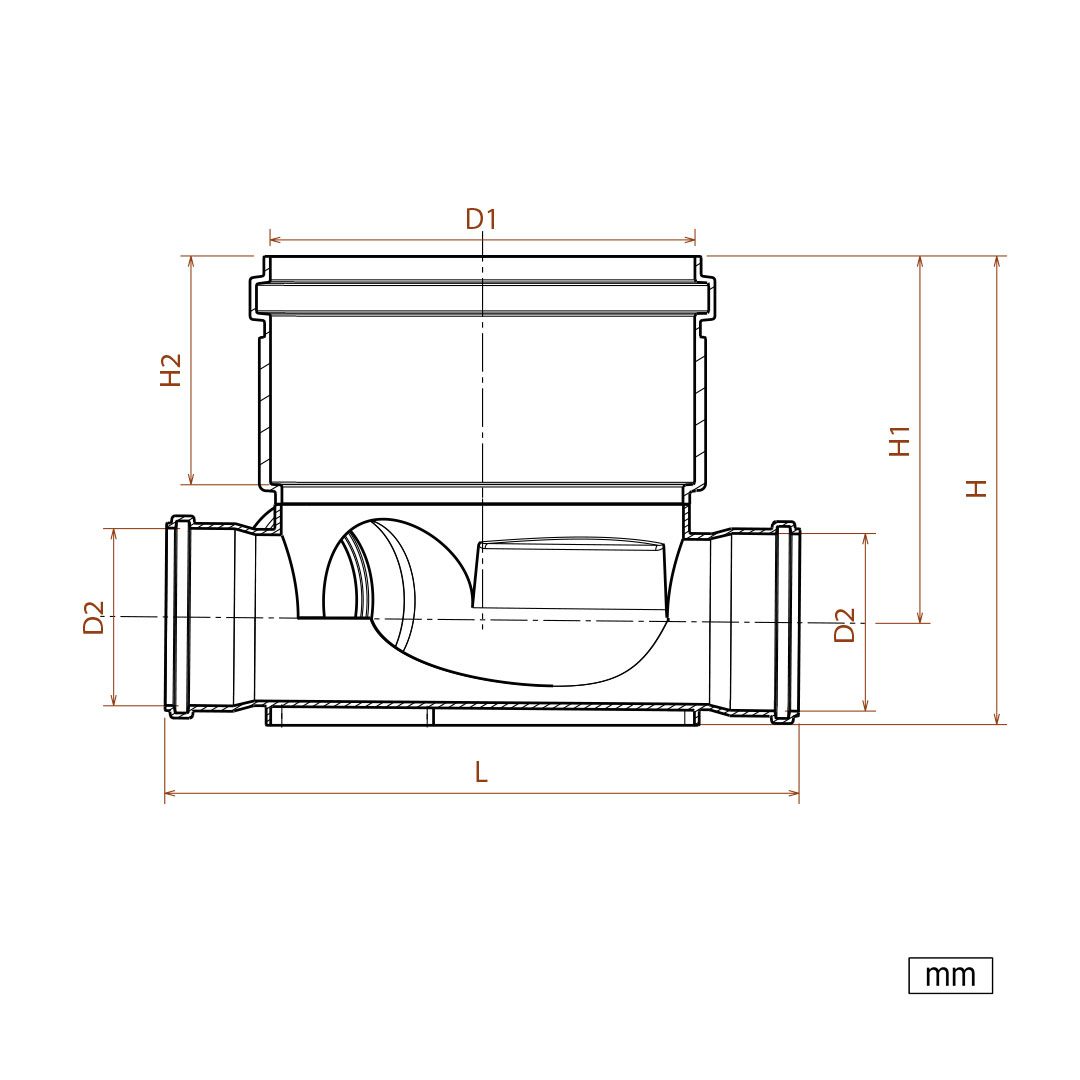

Dimensions & Performances
ZOOM IN
| Code | D1/D2 | H | H 1 | H 2 | L |
|---|---|---|---|---|---|
| 293151601300 | 315/160 | 395 | 309 | 185 | 490 |
| 293152001300 | 315/200 | – | – | – | – |
| 294001601300 | 400/160 | 420 | 319 | 207 | 559 |
| 294002001300 | 400/200 | 470 | 344 | 207 | 584 |
Catalogue
