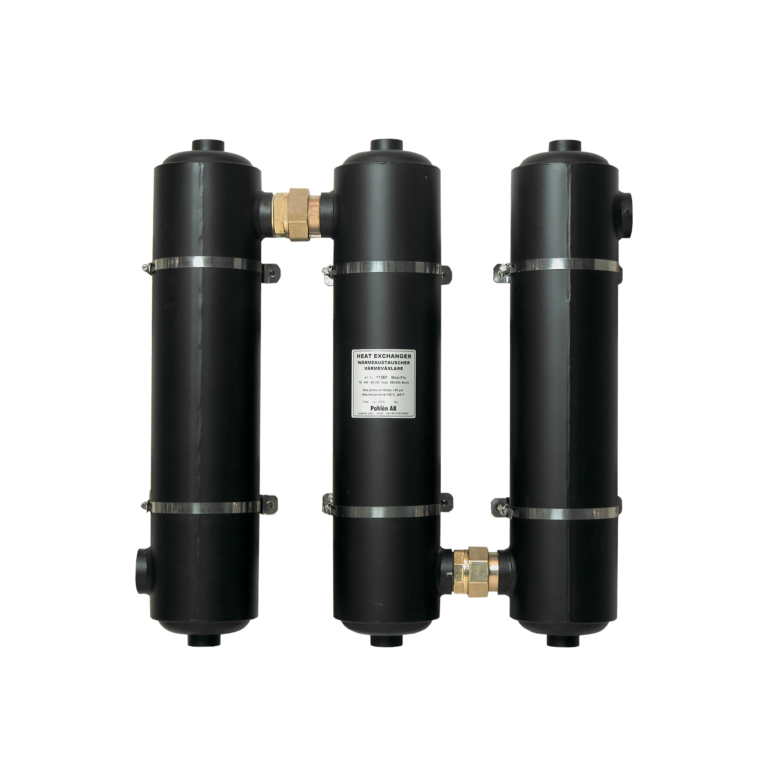

10074 Serial connection

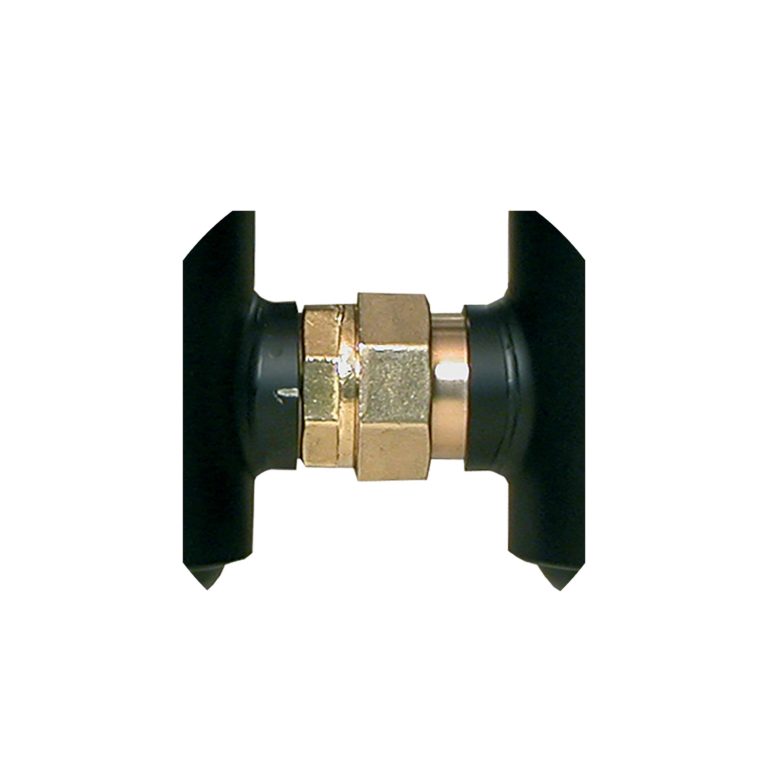

10070 Coupling 2”
10074 Serial connection
10070 Coupling 2”

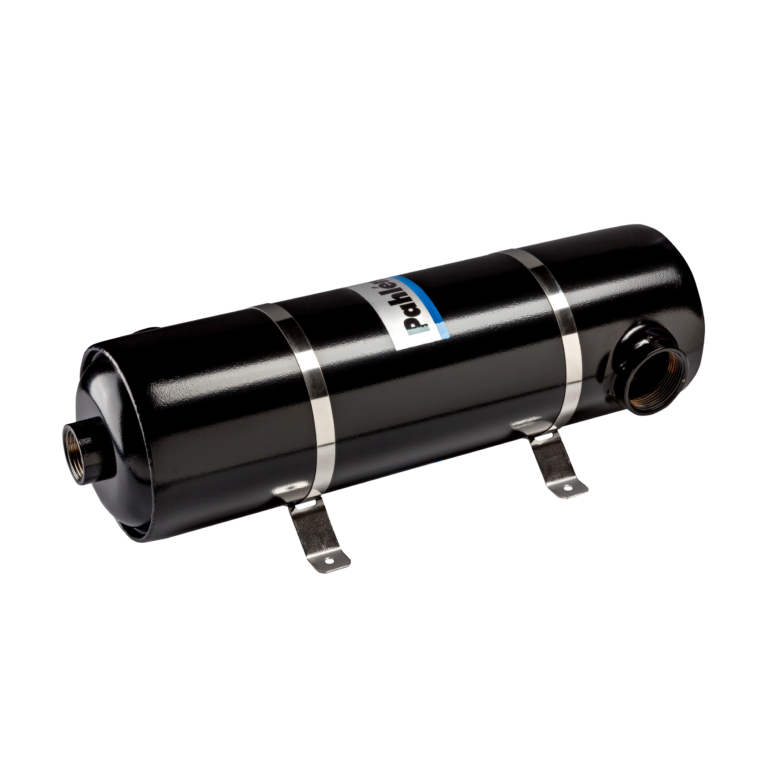

Ηeat exchanger

MODEL: Maxi-Flo

Pahlen Maxi-Flo is well-tried and tested heat exchanger with effective heat transference capabilities. It is intended for swimming pools and other applications where there is a demand for high capacity together with a low-pressure drop.

All models can be installed together with boilers, heat pumps, solar panels or other heat sources.

These heat exchangers are light and compact and have fully welded jackets and a soldered pipe system for the transfer medium.

The material used is acid-proof stainless steel AISI 316L.

Stainless steel adjustable fixings are included.

Maximum pressure: Primary (hot water) 5 bar – Secondary (pool water) 10 bar.

Suitable up to 450 m³ pool.

Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.

    * Obligatory fields

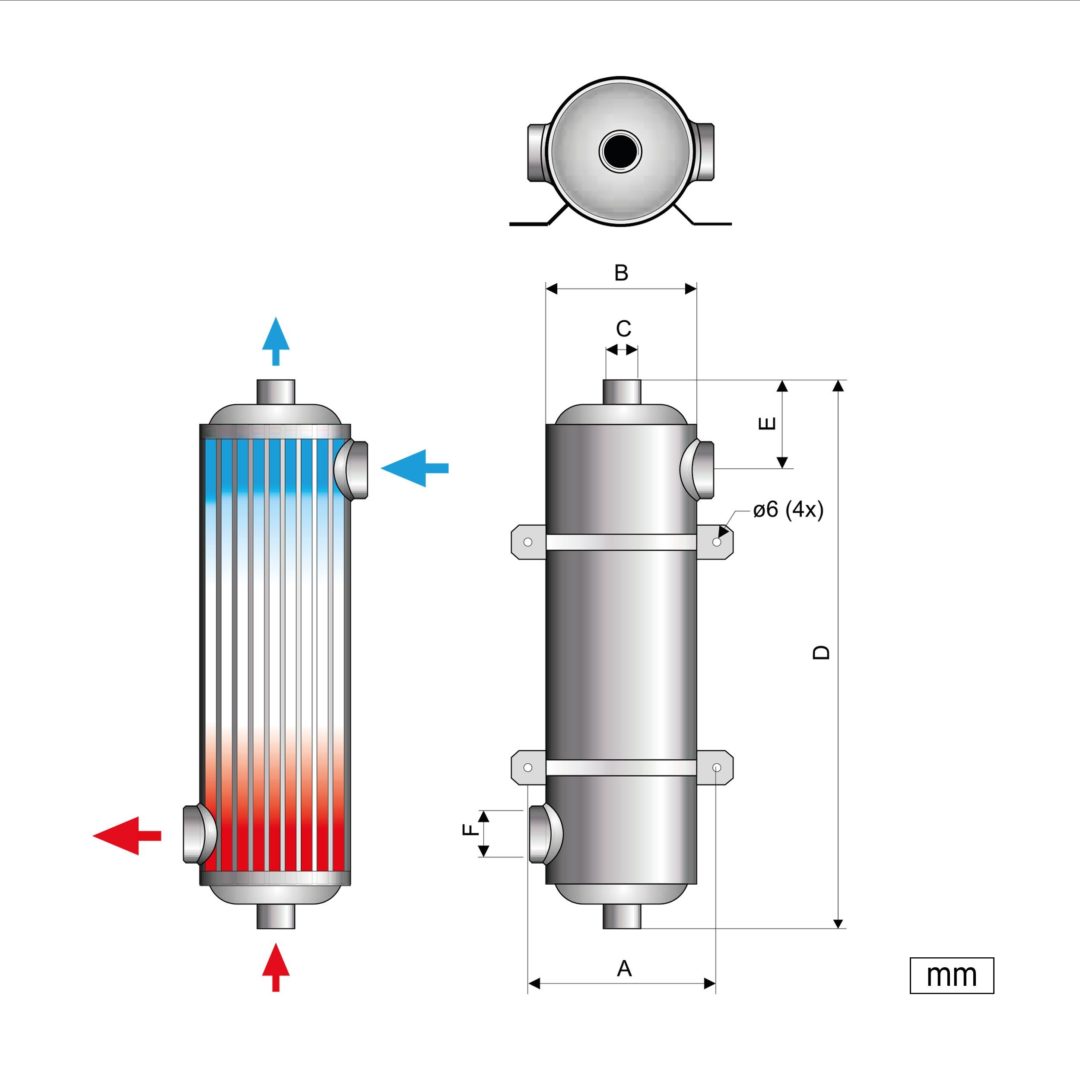

    Dimensions & Performances
    ModelkWA (mm)B (mm)C (mm)D (mm)E (mm)F (mm)
    11365 (MF 135)401391291”355921½”
    11366 (MF 200)601391291”485921½”
    11367 (MF 260)751391291”600852”
    11368 (MF 400)1201391291½”1070852”
