S.S. water bottom inlet with oscillating base

Name: S.S. water bottom inlet with oscillating base
SKU: ASBI
Availability: InStock

MODEL: ASBI

MANUFACTURER:

Injection-moulded bottom inlet made of high-strength ABS and stainless steel AISI-316.

The top part of this inlet is flat-shaped.

Oscillating base allowing up to 120 inlet adjustment.

Adjustable flow rate. Suitable for concrete pools.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

Body made of highly resistant ABS material and face made of stainless steel AISI-316.
Flat shape for inlet’s top part.
Οscillate base allowing up to 12° inlet adjustment.
Flow rate: 14m³/h.
Designed for concrete swimming pools.
UV protection.

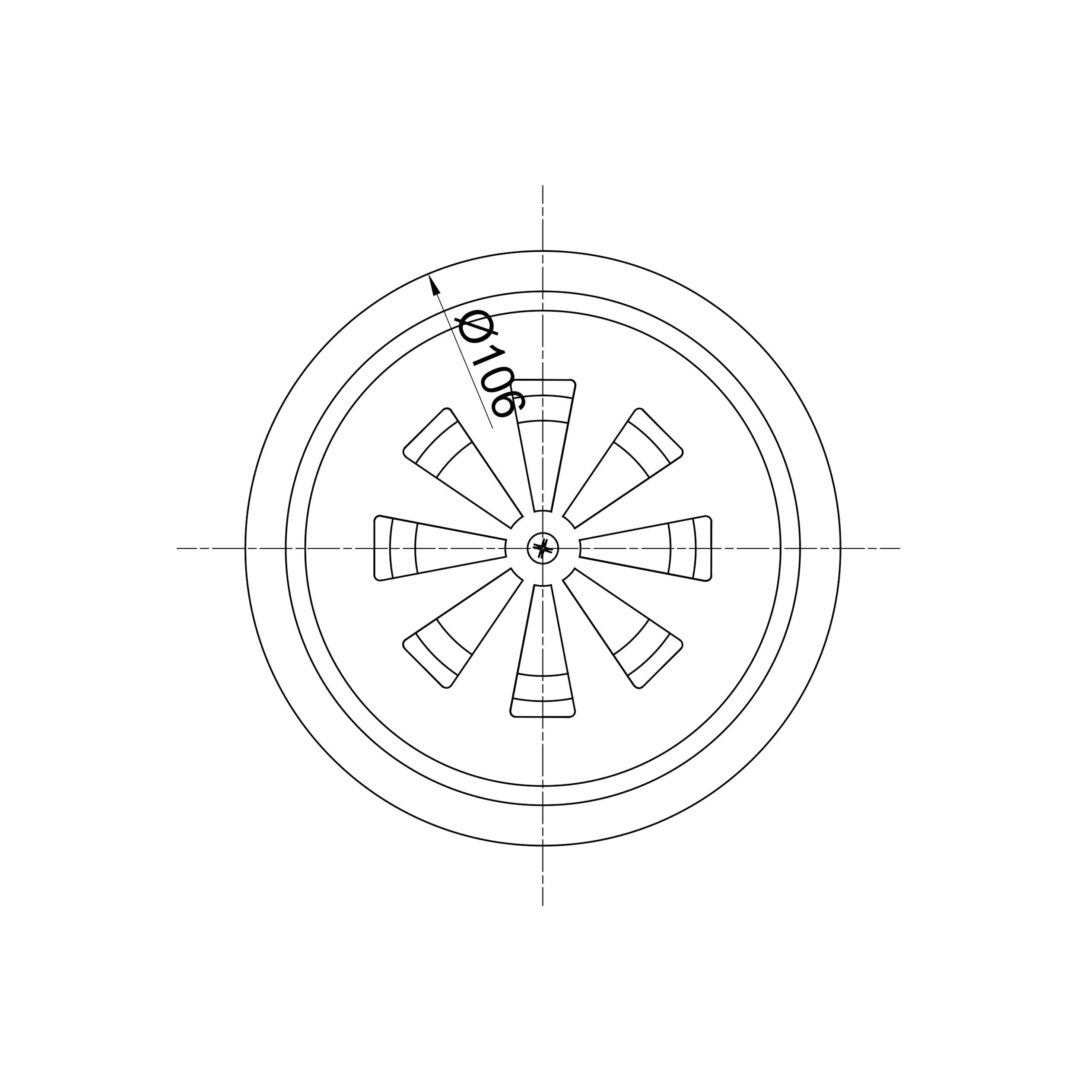

ZOOM IN

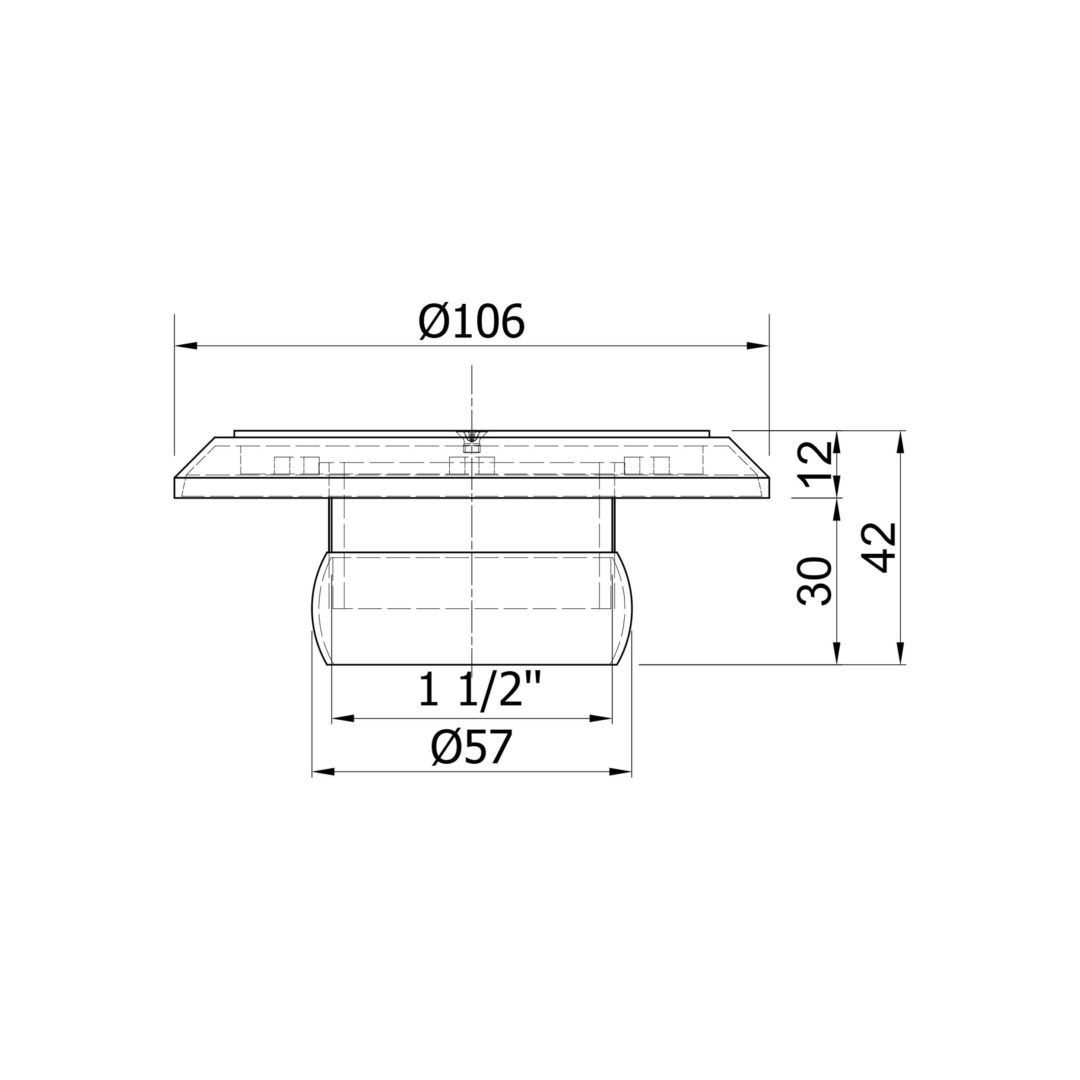

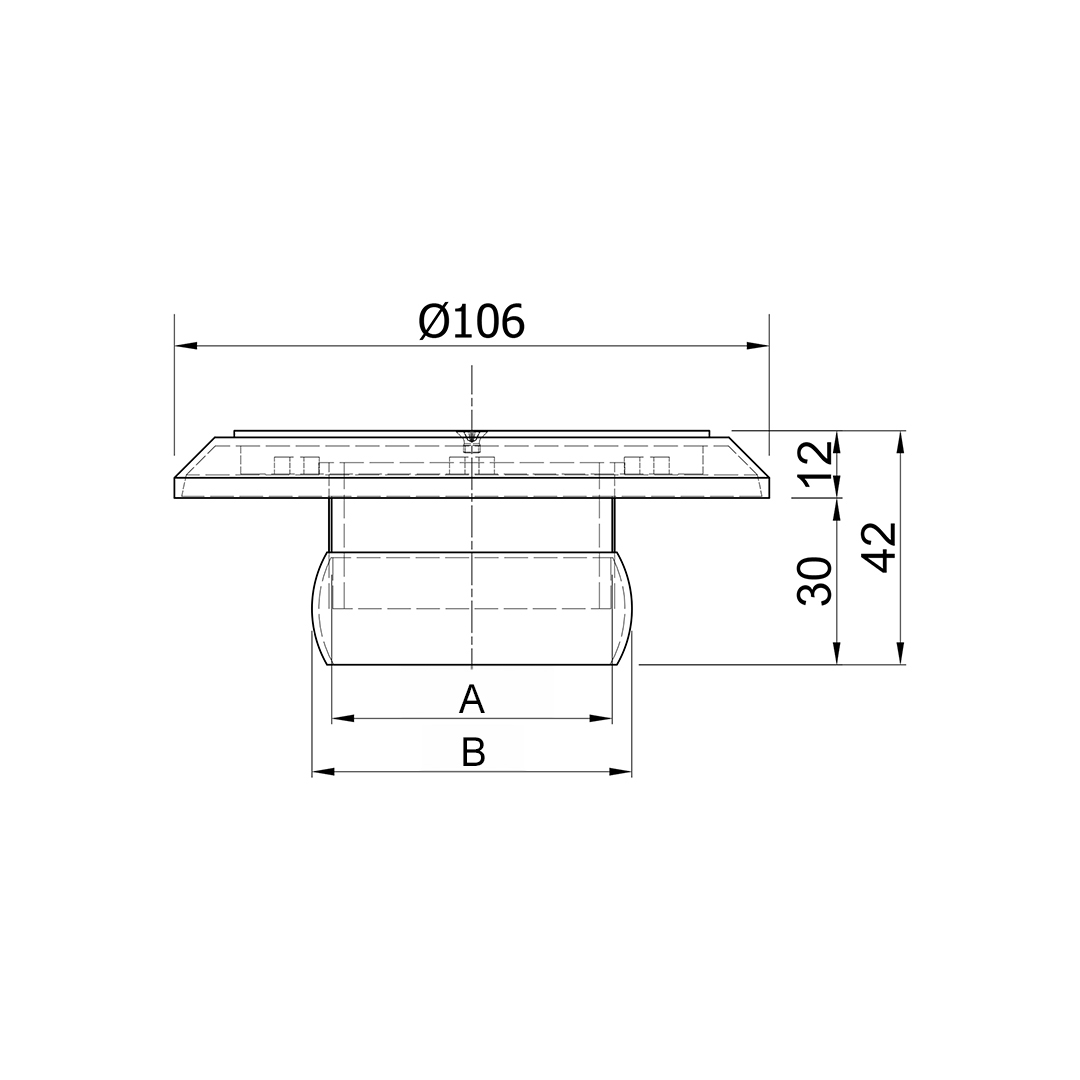

Code	Connection	A	B
ASBI-500	50mm adjustable	1″	43
ASBI-630	63mm adjustable	1½”	57

Download
