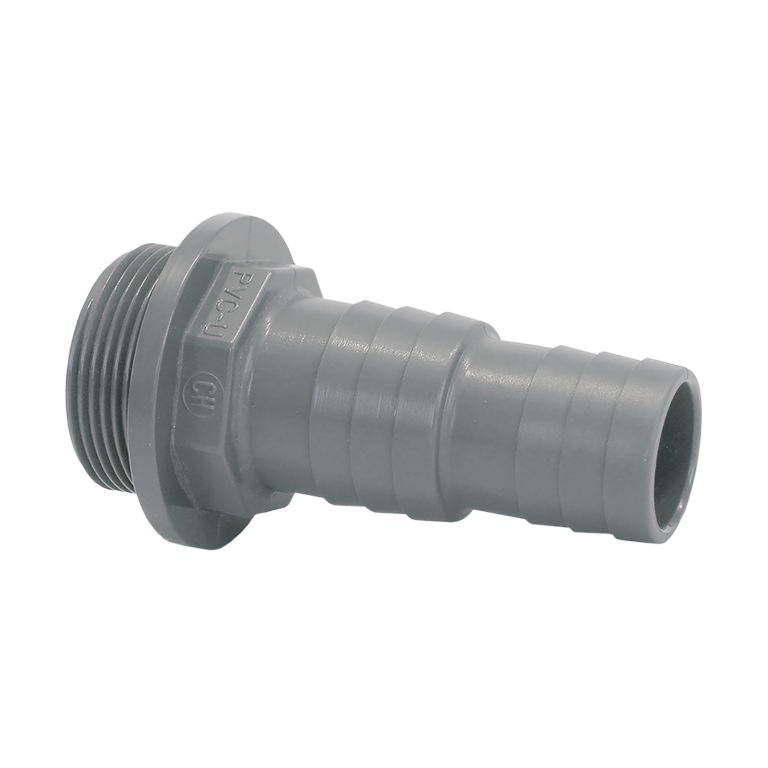

Spigot connection BSP male thread

MODEL: 7136
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

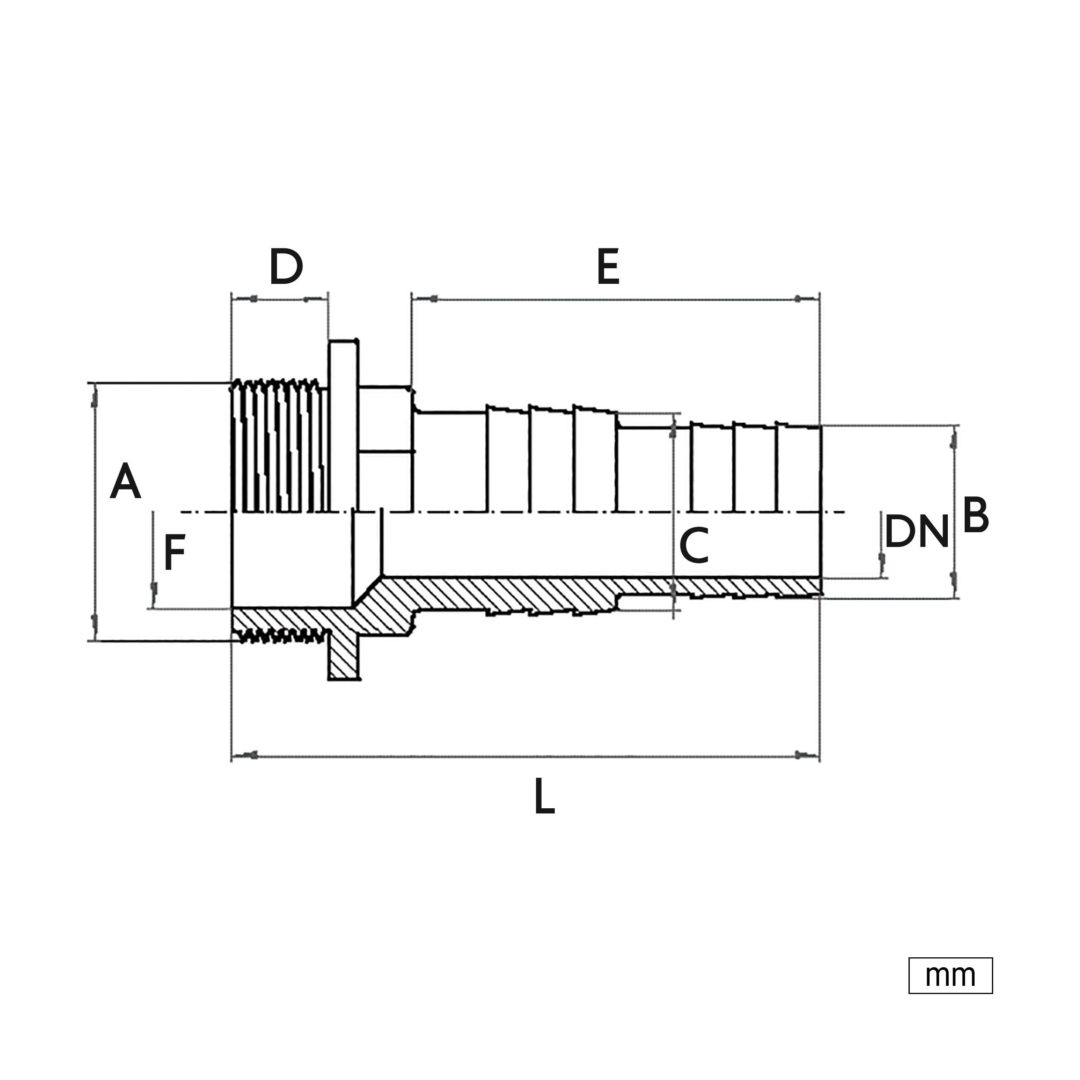

    Dimensions & Performances
    CodeDNABCDEFLØ
    7136050251½”323818763611038−1½”
