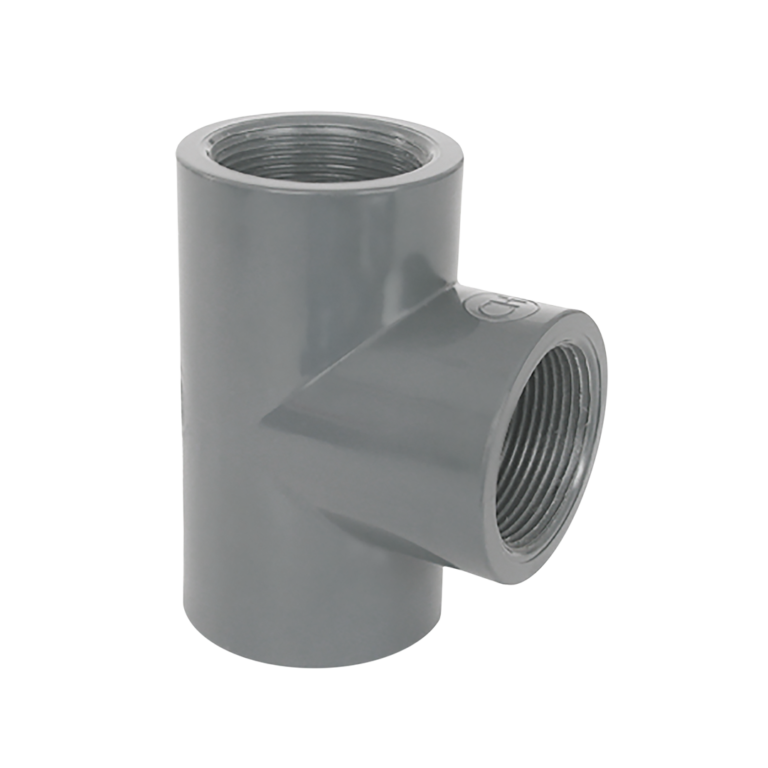

Tee 90° with female thread

MODEL: 7203
MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN 16 bar.
    From 160mm to 315mm = PN 10 bar.
  • Threaded fittings:
    All sizes PN 10 bar.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

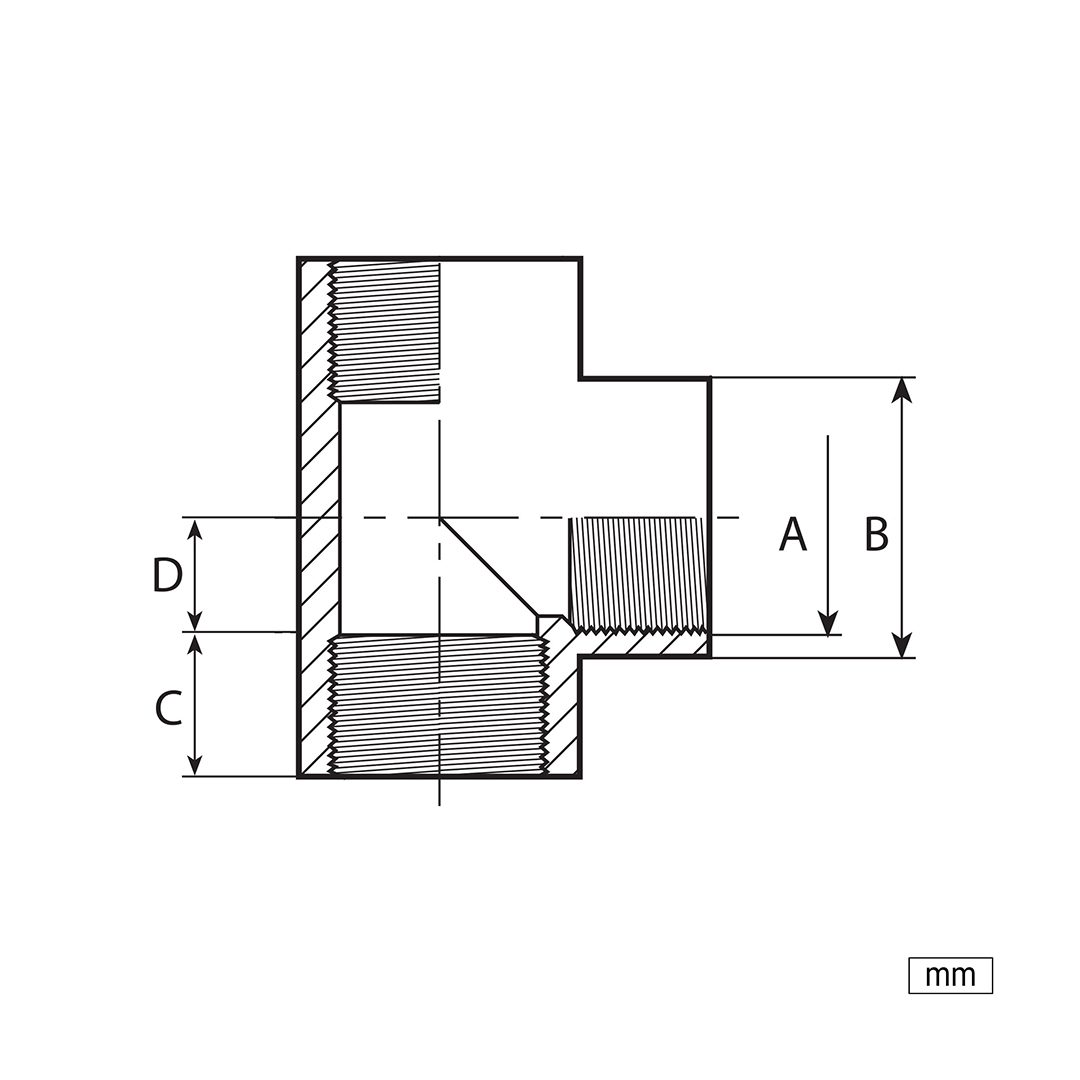

    Dimensions & Performances
    CodeØABCD
    72030163/8”3/8”22149
    72030201/2”1/2”251611
    72030253/4”3/4”321914
    72030321”1”402217
    72030401¼”1¼”502621
    72030501½”1½”633126
    72030632”2”753832
    72030752½”2½”904439
    72030903”3”1105147
    72031104”4”1316158
