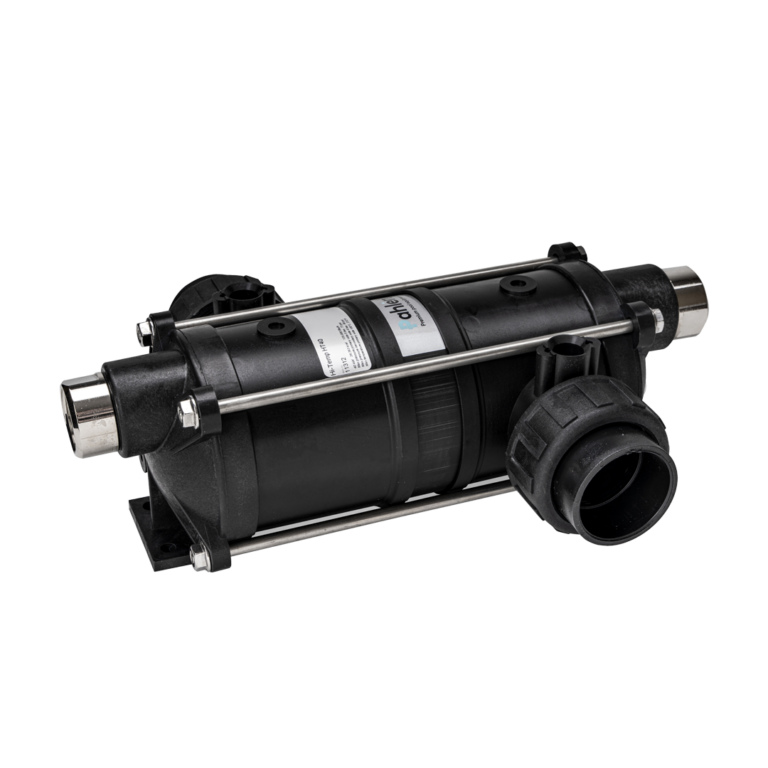

Thermoplastic heat exchanger
MODEL:
Hi-Temp
MANUFACTURER:
Pahlen Hi-Temp heat exchangers are designed to suit all types of swimming pools and spas, where low-pressure drop and high heat capacity are required.
The heat exchangers are supplied with union connections or adhesive bonding of Ø 50mm pipes. All models are light and compact and can be connected to a boiler, heat pump, solar collector system or another heat source.
The secondary (pool water) side is made of glass-fibre-reinforced plastic and the primary (hot water) side is made of acid-resistant stainless steel.
Max. pressure: Primary side (hot water) 5 bar, Secondary side (pool water): 4 bar.

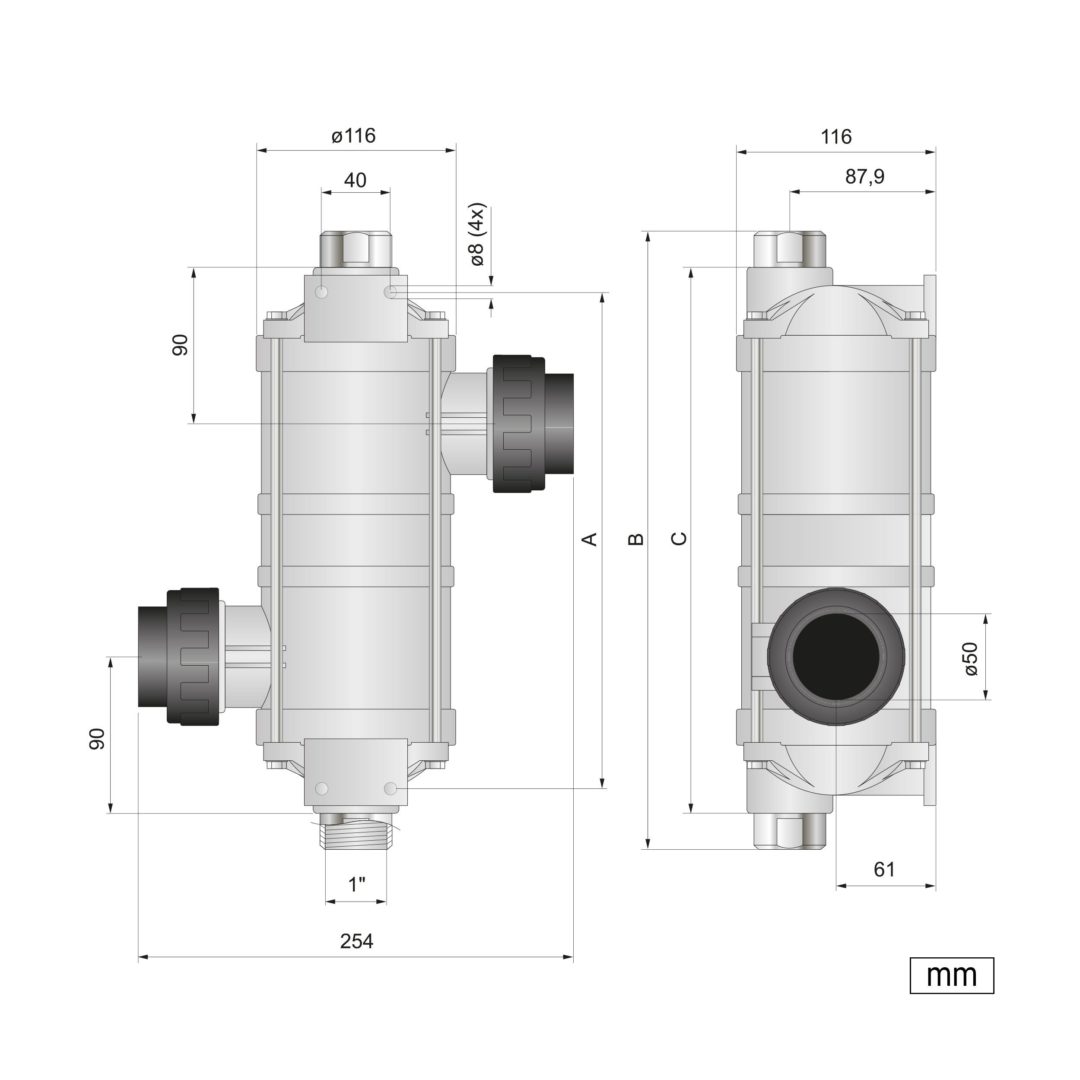

Dimensions & Performances
ZOOM IN
| Model | kW | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 11312 (HT 40) | 40 | 277 | 360 | 315 |
| 11314 (HT 75) | 75 | 454 | 535 | 492 |
