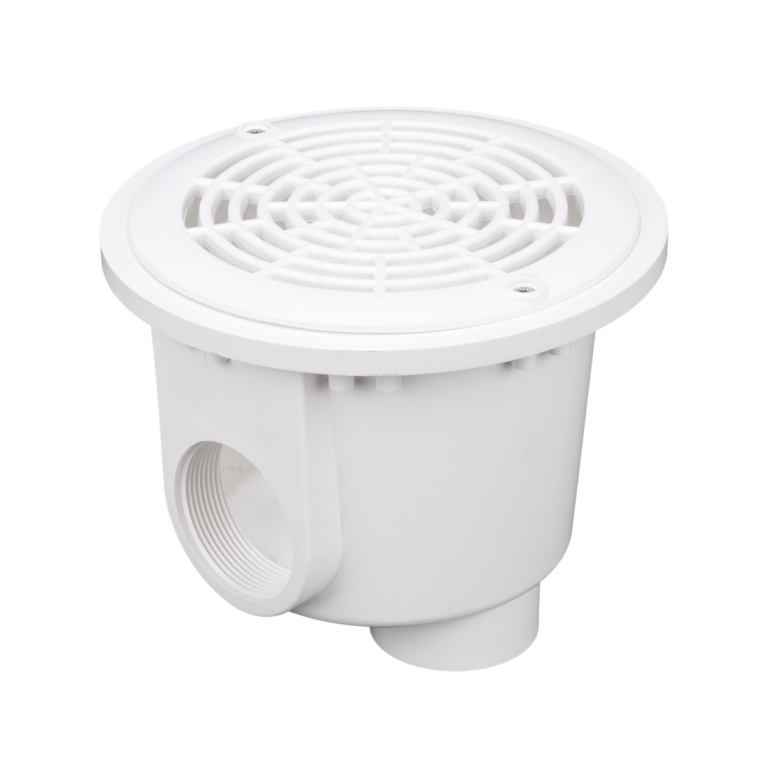

EDG-100

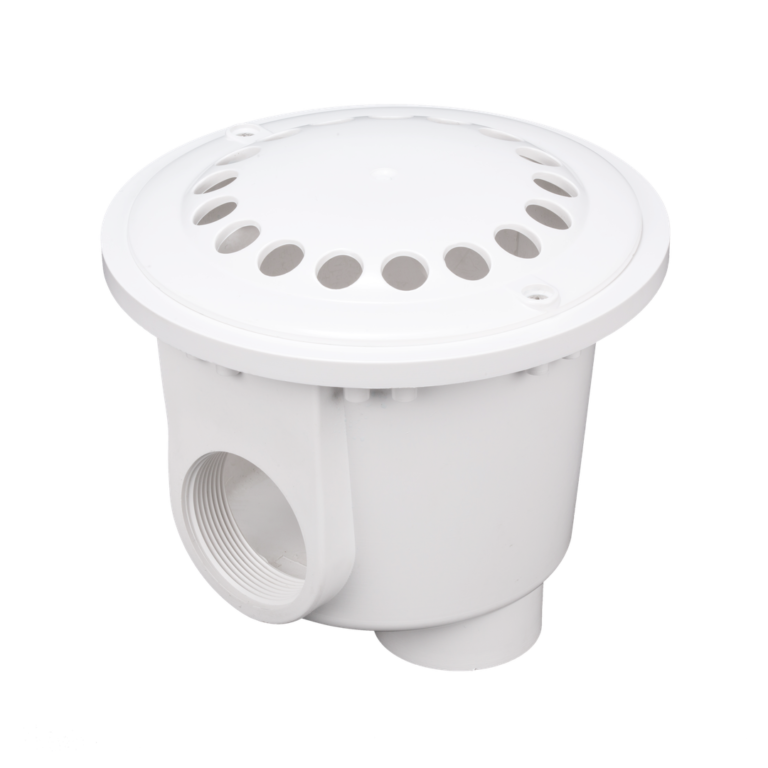

ELDG-120
ELDG-120
Specifications
CONCRETE
- Diameter: 200mm.
- Anti-vortex design for EDG-120.
- Vertical exit: 50mm (blocked).
- Side exit: 2” female thread.
- Open area: 9000mm².
- Chemical resistant.
- UV protected.
LINER
- Diameter: 200mm.
- Liner guide that makes the flange’s fixing easier (ELDG-120).
- Double liner holes for easier replacement of the liner (ELDG-120).
- Anti-vortex design for EDG-120.
- Vertical exit: 50mm (blocked).
- Side exit: 2” female thread.
- Open area: 9000mm².
- Chemical resistant.
- UV protected.

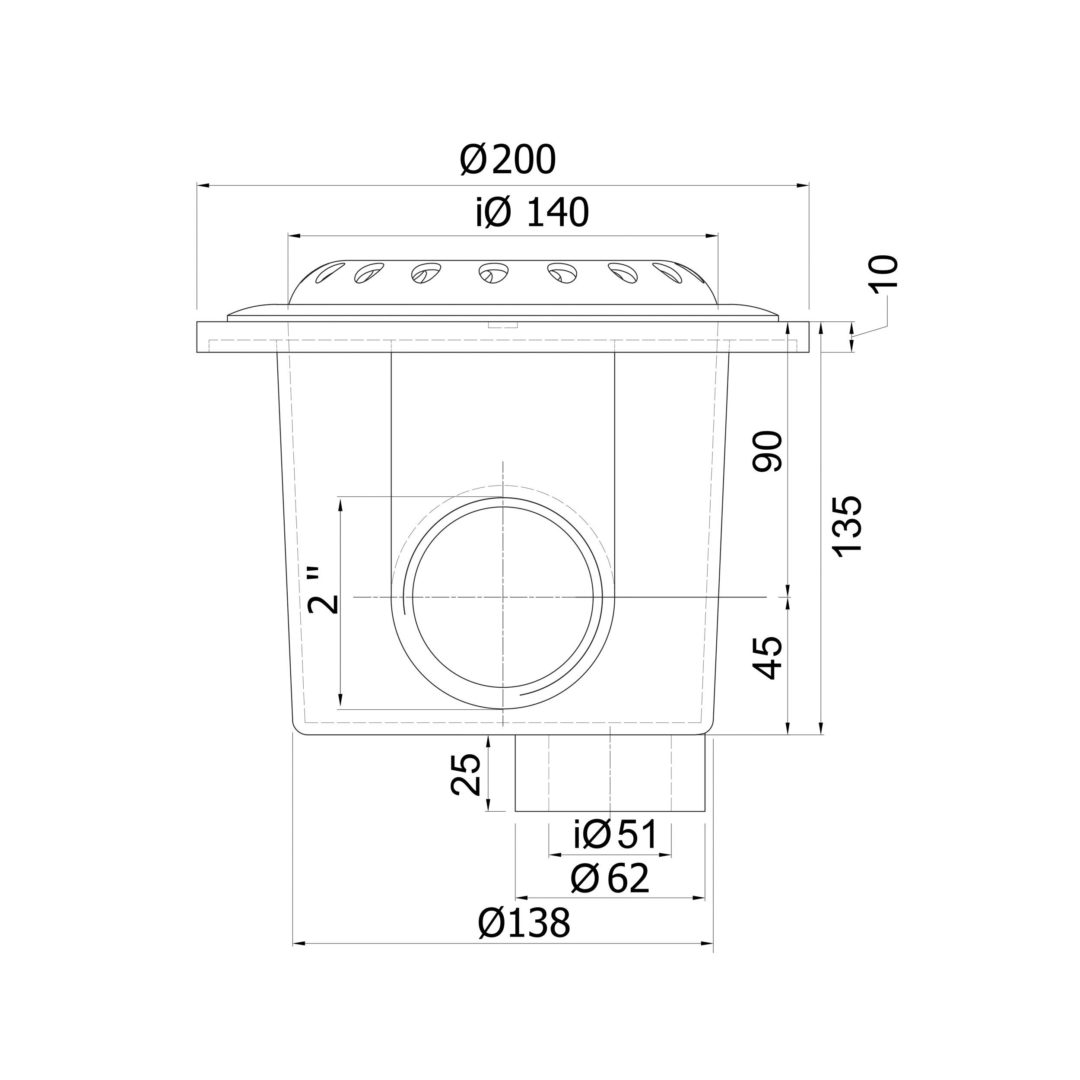

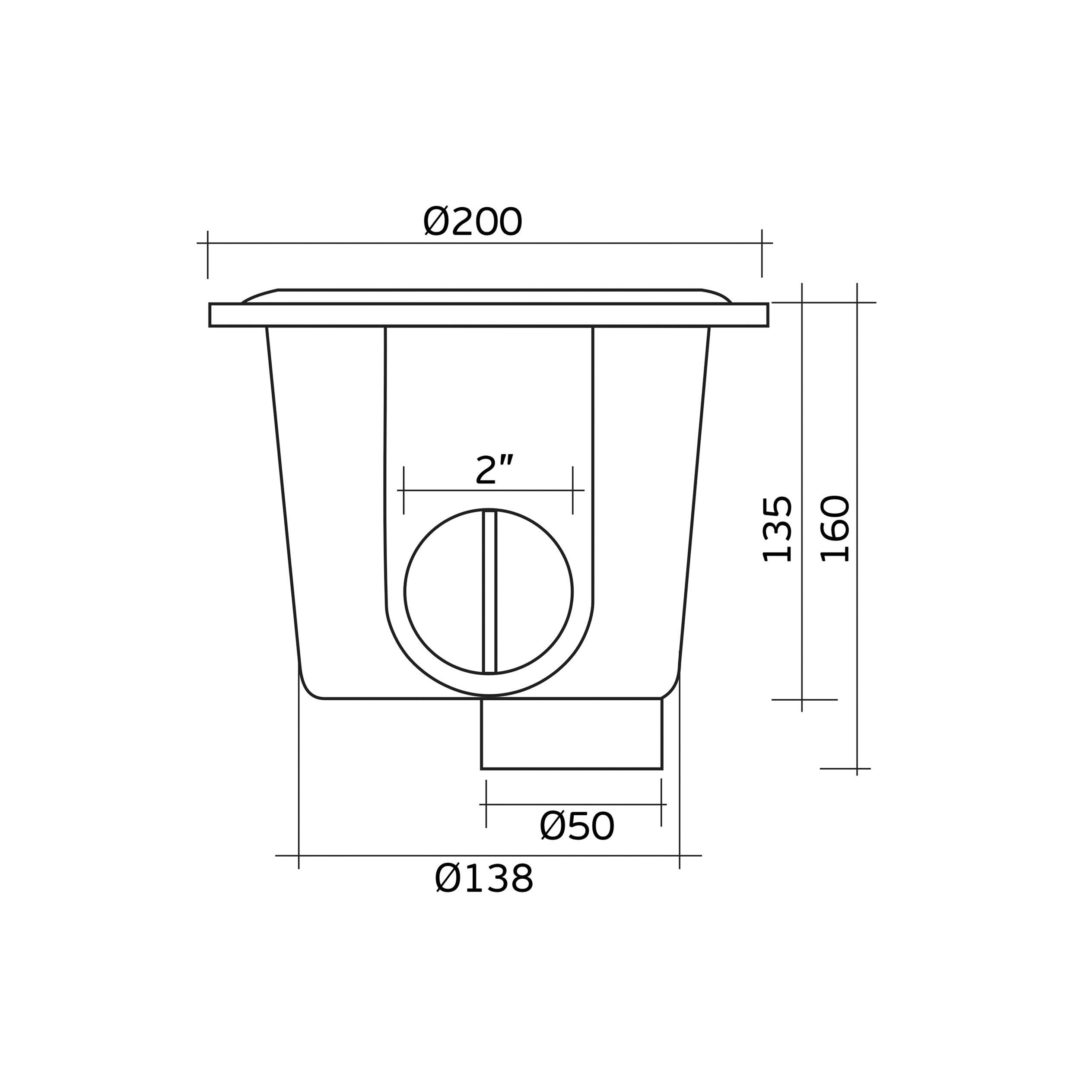

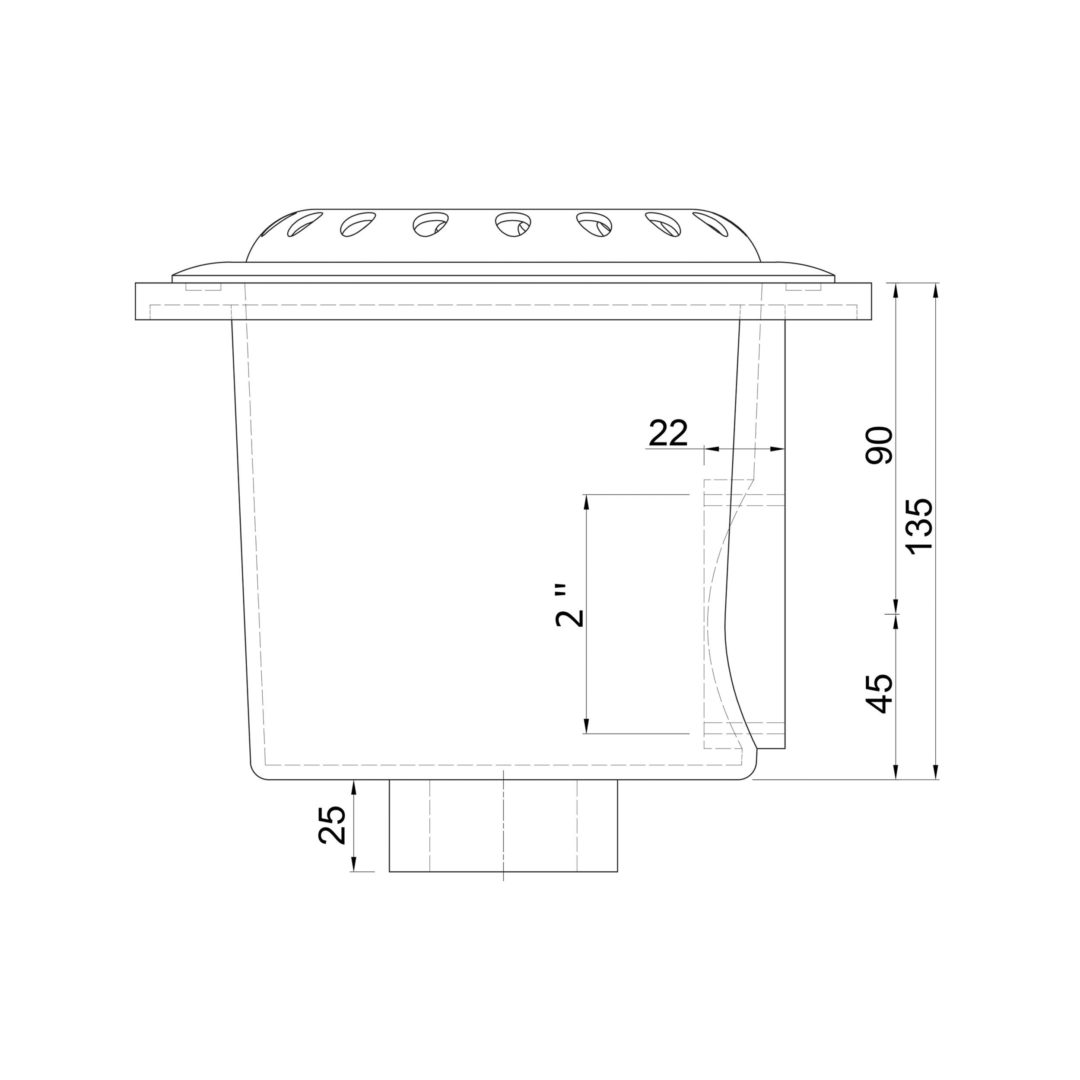

Dimensions & Performances
