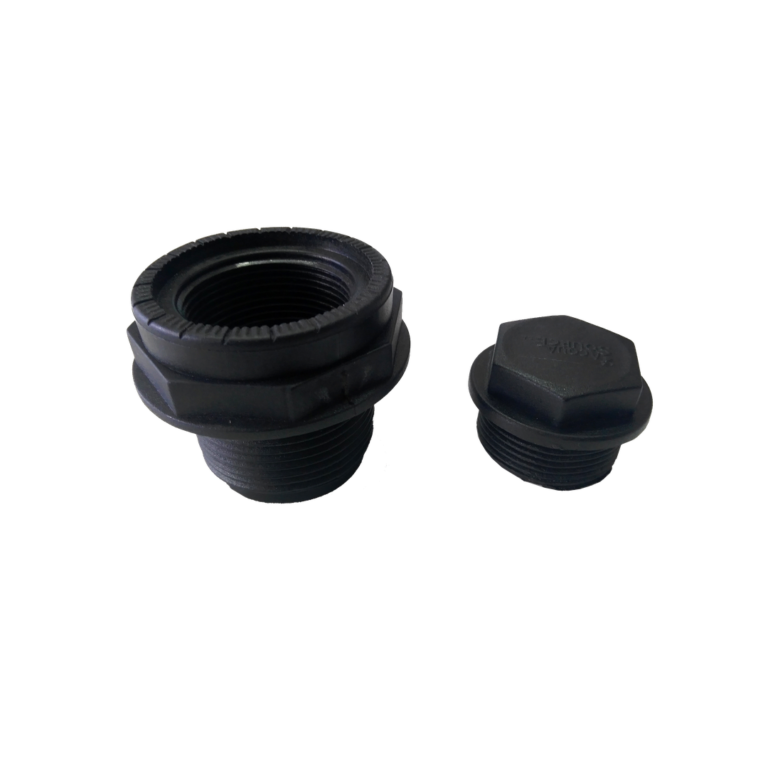

Διπλή τάπα αποστράγγισης
Διπλή τάπα αποστράγγισης

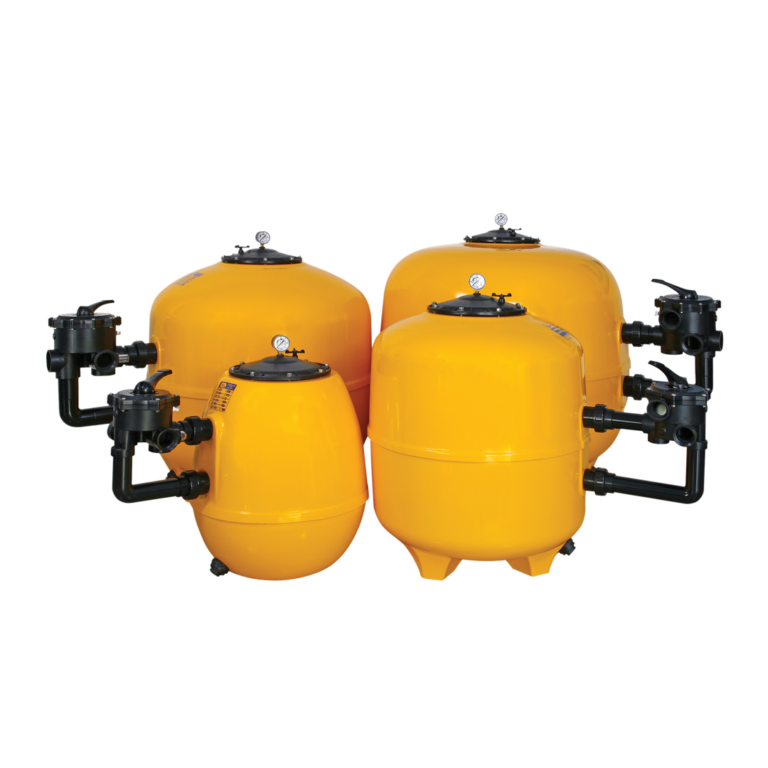

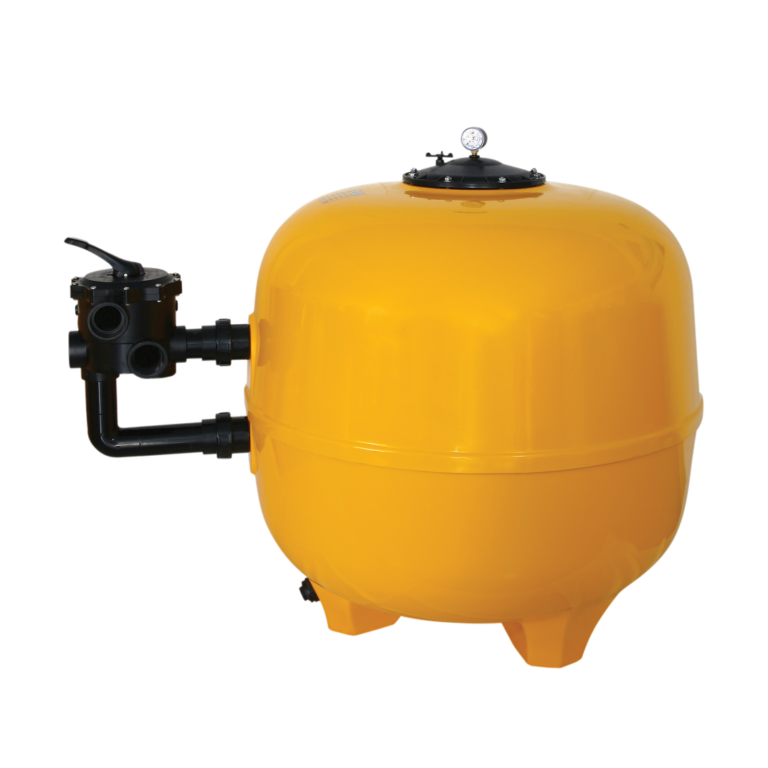

Fiberglass sand filter
MODEL:
NS
MANUFACTURER:
Laminated fibreglass filter with polyester reinforcement for enhanced pressure resistance. 6-point bolted cover made of polypropylene with polyester reinforcement.
Top opening 25cm, for easy maintenance and media loading.
Bottom drain 1¼” for filtering media. Bottom drain 1″ for water discharge.
Three legs support for perfect filter stability.
6-way valve with connection fittings included.
Specifications
- Max operating pressure: 3 bar.
- Max testing pressure: 4.8 bar.
- Filtration speed: 50m3/h/m2.
- Multiport valve: Included.
Dimensions & Performances
ZOOM IN
| Model | Diameter (mm) | Α (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|
| EC-8 | 510 | 470 | 510 | 290 | 150 |
| EC-16 | 650 | 880 | 650 | 330 | 185 |
| EC-24 | 830 | 1050 | 830 | 330 | 195 |
| EC-32 | 950 | 1120 | 950 | 420 | 195 |
