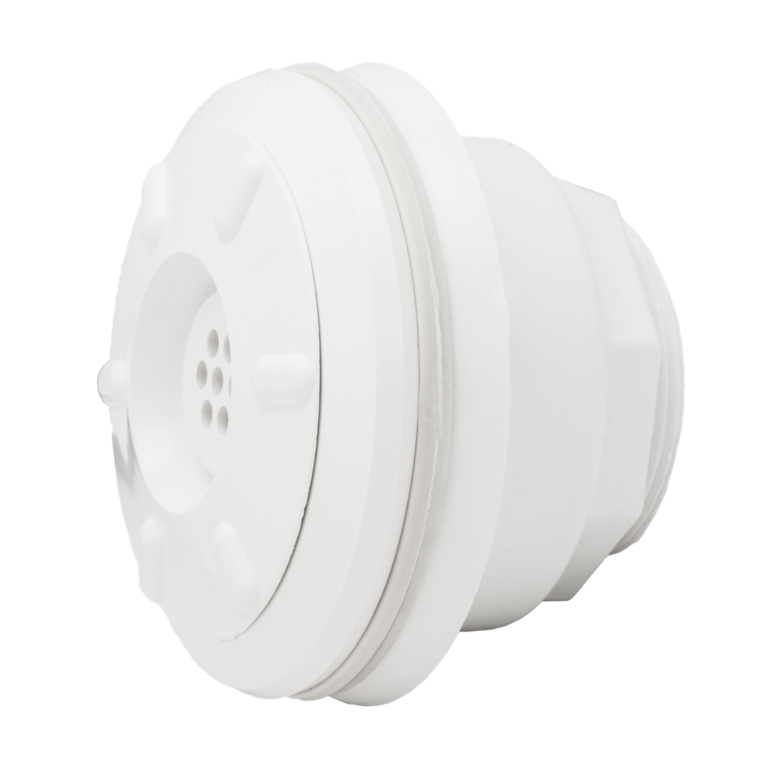

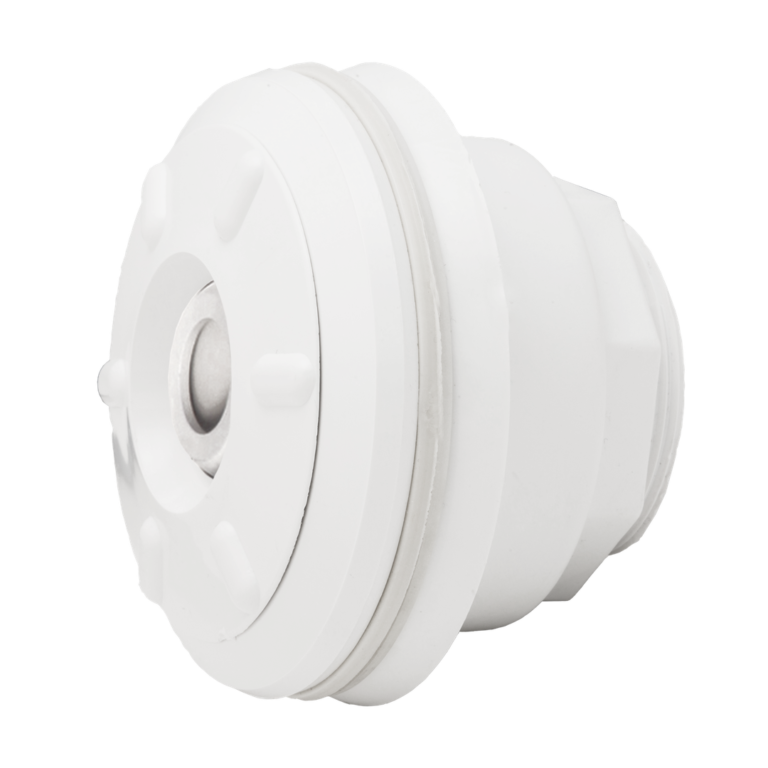

LRI-205
LRI-205/SFT
LRI-205/SFT
ABS water return inlet
MODEL:
LRI
MANUFACTURER:
Return inlets injection moulded made of high-strength ABS.
Two types of eyeballs, STANDARD or SAFETY (compliant to ΕΝ-13451), are directional in various orifices.
Suitable for liner pools.
Specifications
- Highly resistant ABS material.
- Available eyeballs: STANDARD or SAFETY (EN-13451 compliant).
- Directional eyeball.
- Eyeball orifice: in 8, 12, 16, 20mm (supplied with standard eyeball size Ø20. Otherwise, please indicate required size).
- Flow rate/eyeball orifice:
– Ø8: 1.5m³/h
– Ø12: 2.5m³/h
– Ø16: 3.5m³/h
– Ø20: 5.0m³/h - Bronze inserts for reinforcement.
- Self-locking joints, screws and fixing nuts.
- Designed for liner swimming pools.
- UV protection.

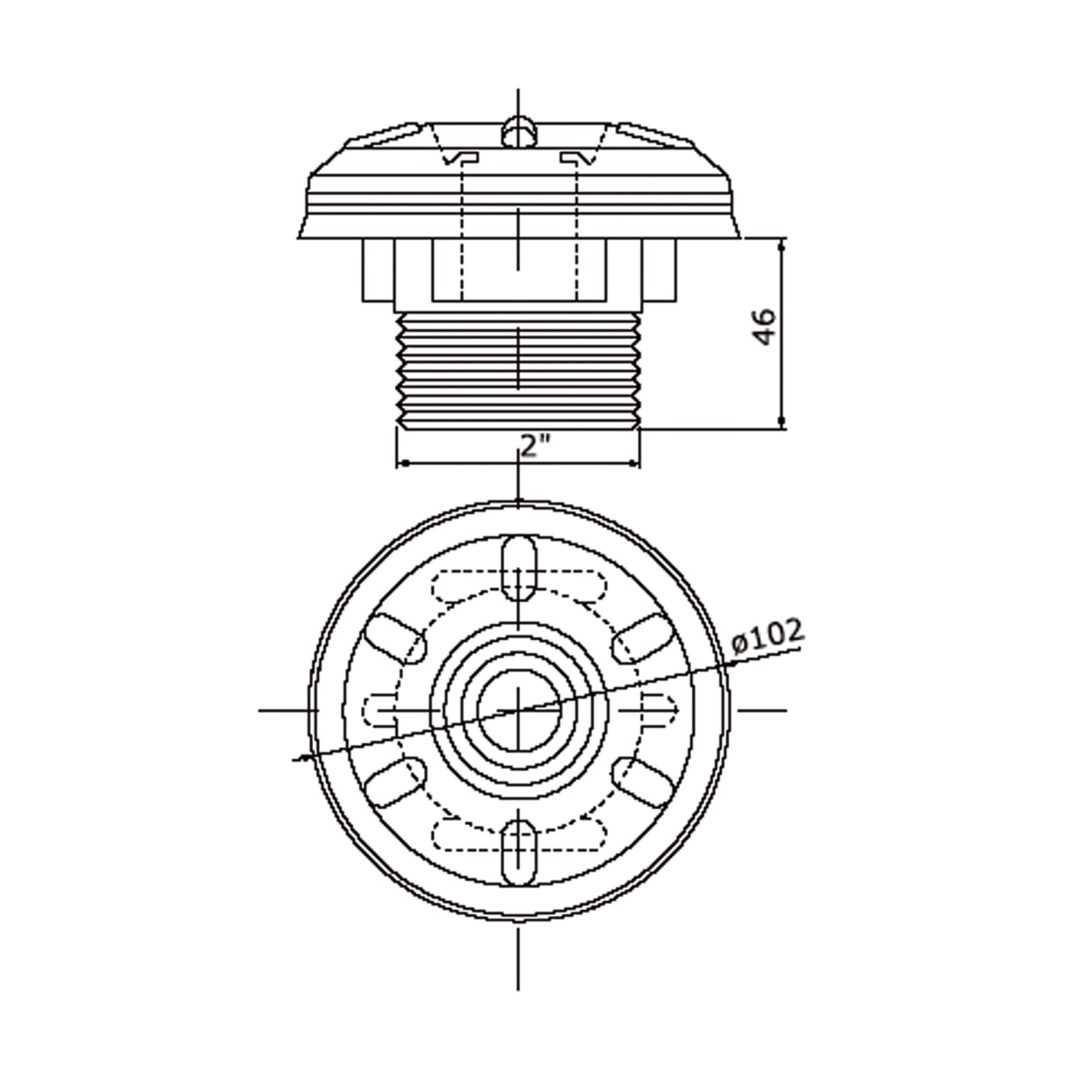

Dimensions & Performances
ZOOM IN
Colour Chart
ZOOM IN

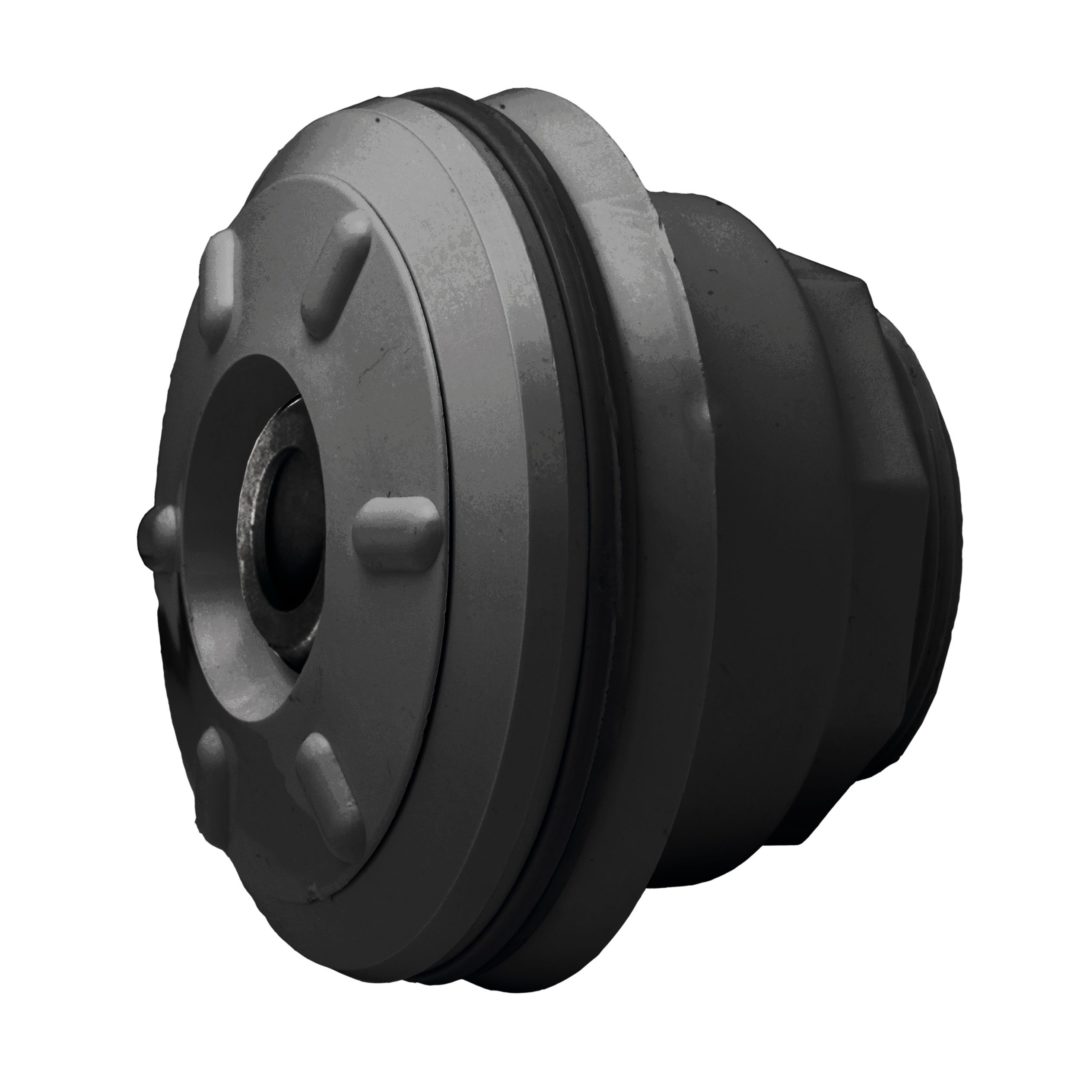

Black

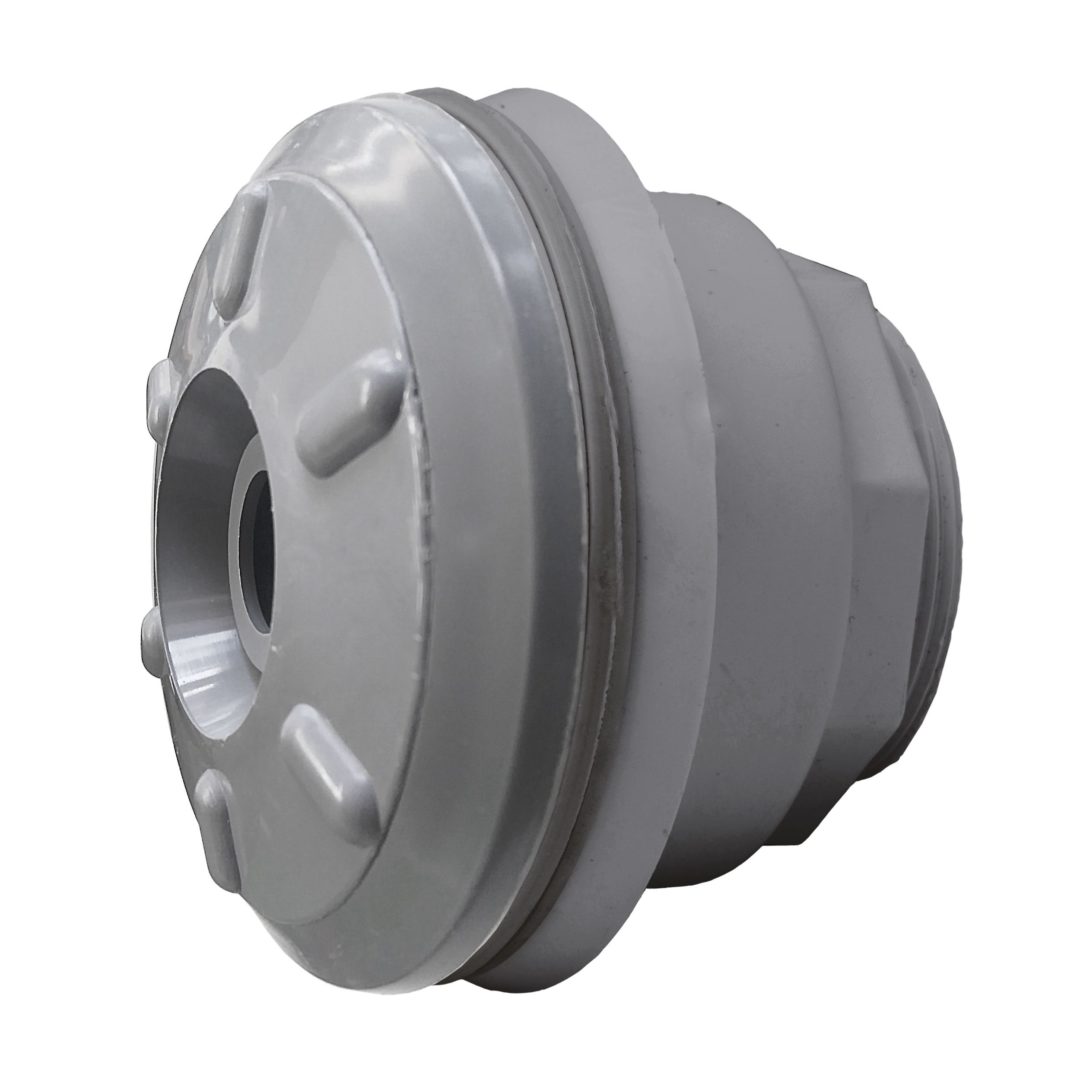

Grey

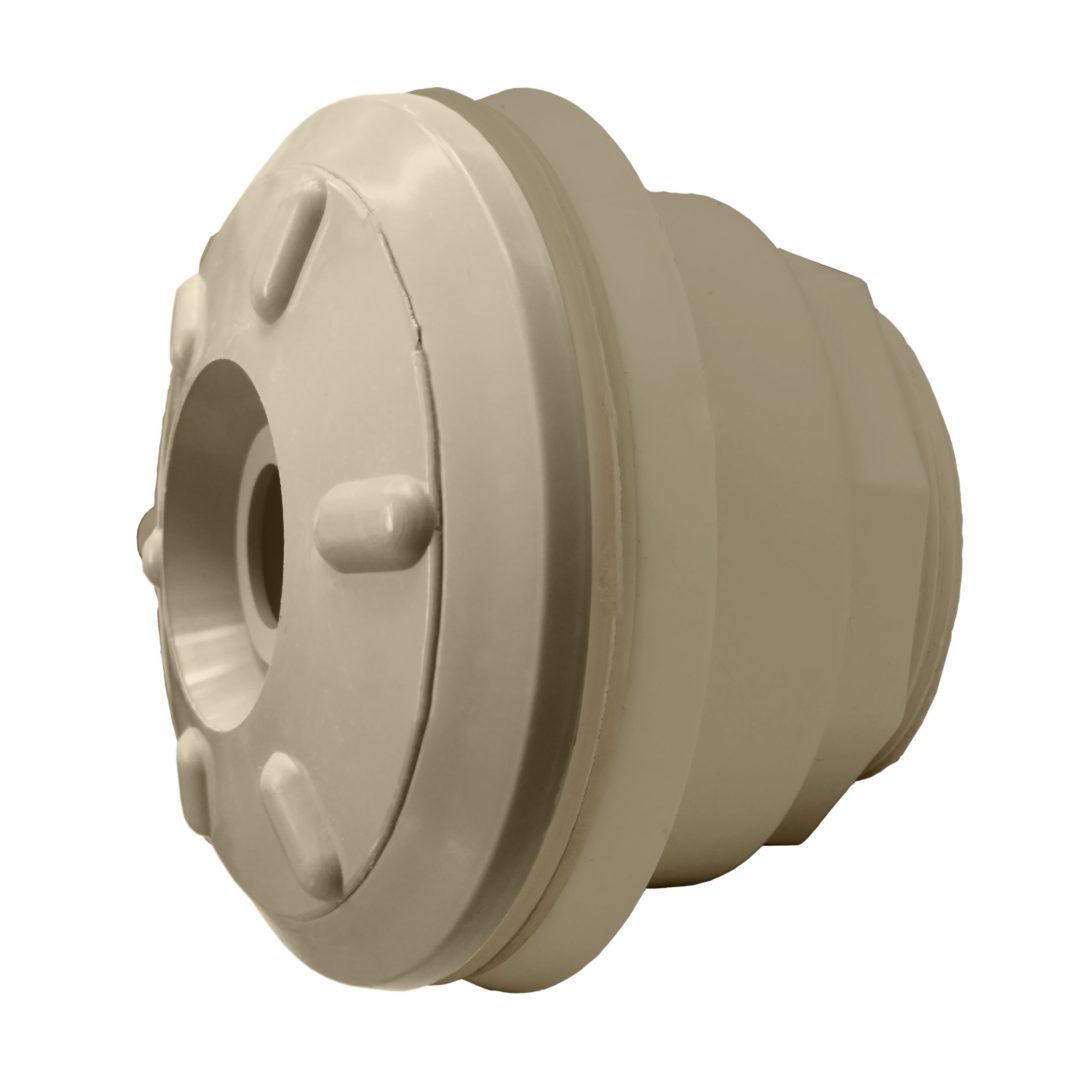

Sand
Catalogue
