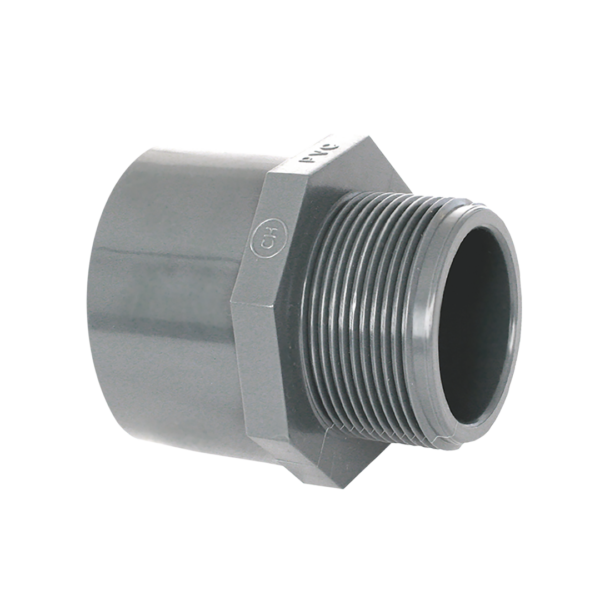

Adaptor bushes mixed
MODEL:
RBNI
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN 10 bar.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | E | F | PN | Ø |
|---|---|---|---|---|---|---|---|---|---|
| RBNI−5011 | 40 | 63 | 50 | 1½” | 77,5 | 28 | 31 | 16 | 50−63×1½” |
| RBNI−6302 | 50 | 75 | 63 | 2 | 87,5 | 32 | 48 | 16 | 63−75×2” |
Catalogue
