16537

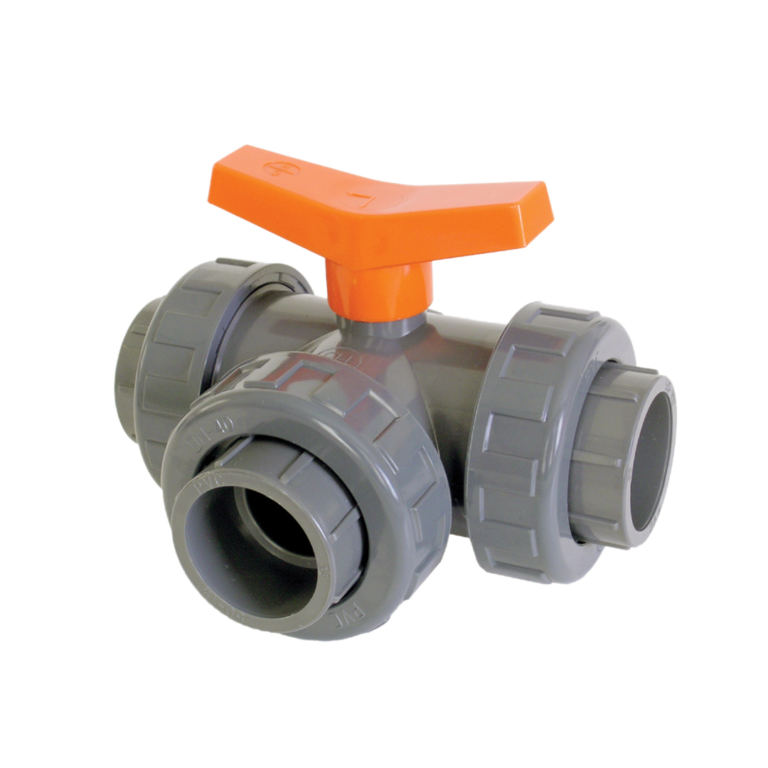

3-way ball valve, type T, PN10

MODEL: 2510
MANUFACTURER:
Clear

Seats: P.T.F.E. | O−rings: EPDM

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

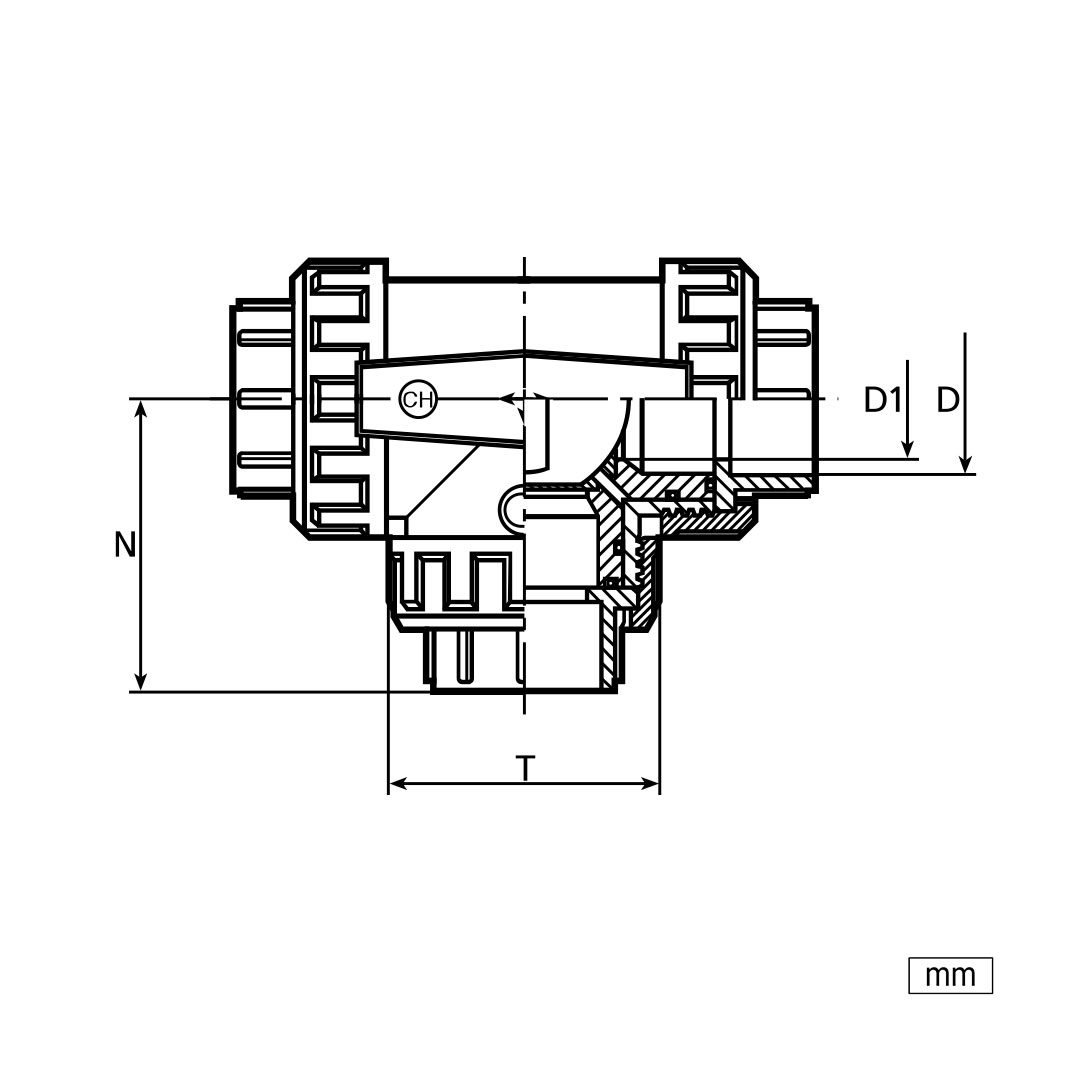

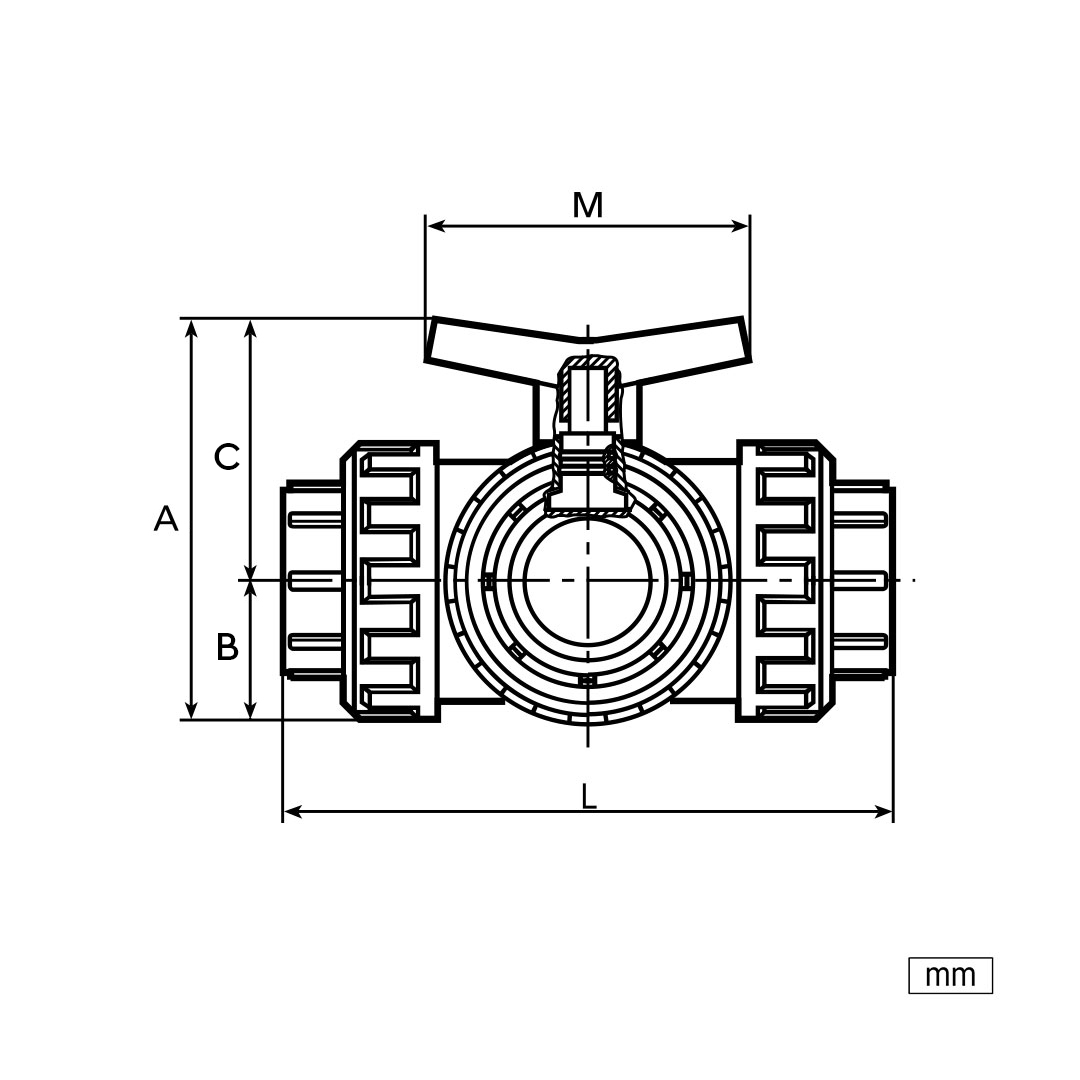

    Dimensions & Performances
    CodeØDNABCMLTND1D
    251001616158024568511549581016
    251002020158024568511549581520
    251002525208028528512757602025
    2510032322587335410014867742532
    25100404032104406410017281863240
    251005050401155164128209103954050
    25100636350160601001282441201145063
