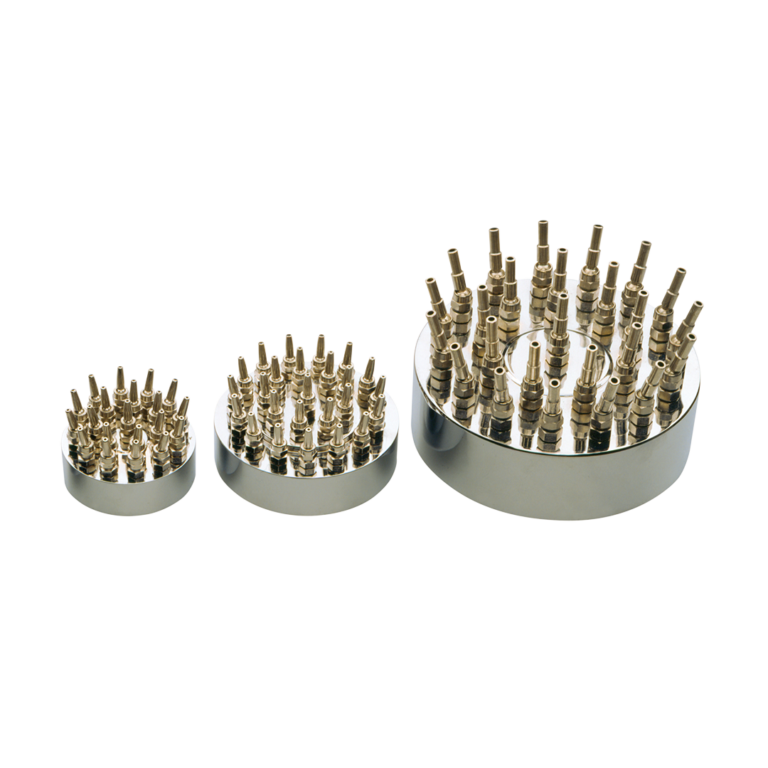

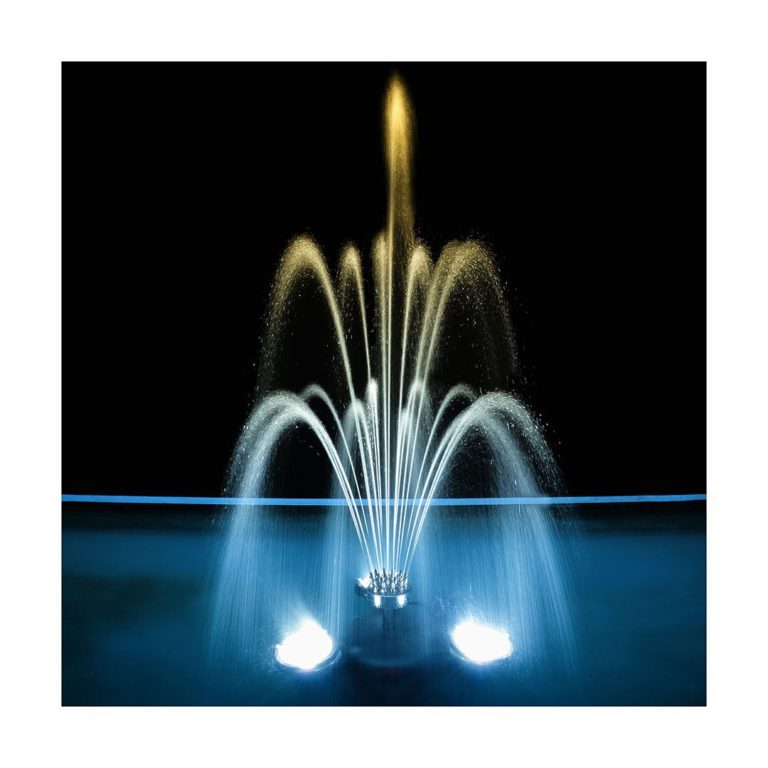

Adjustable de lis jet
MODEL:
ΑDL
MANUFACTURER:
The adjustable version of the de lis jet has the same performance in bigger-sized basins and is ideal for big outdoor and indoor spaces.
The jet bears extended nozzles with angled positions looking at outside directions.
Visibility: ★★★★☆
Sound level: ★★★☆☆
Wind resistance: ★★★☆☆
Splash: ★★☆☆☆
Dependent on water level position: No
Specifications
- Cast bronze and brass chrome plated construction.
- Fine protection pump screening that forbids foreign materials to enter.
Options:
- Cast bronze without chrome plating.
- ΝPT thread.

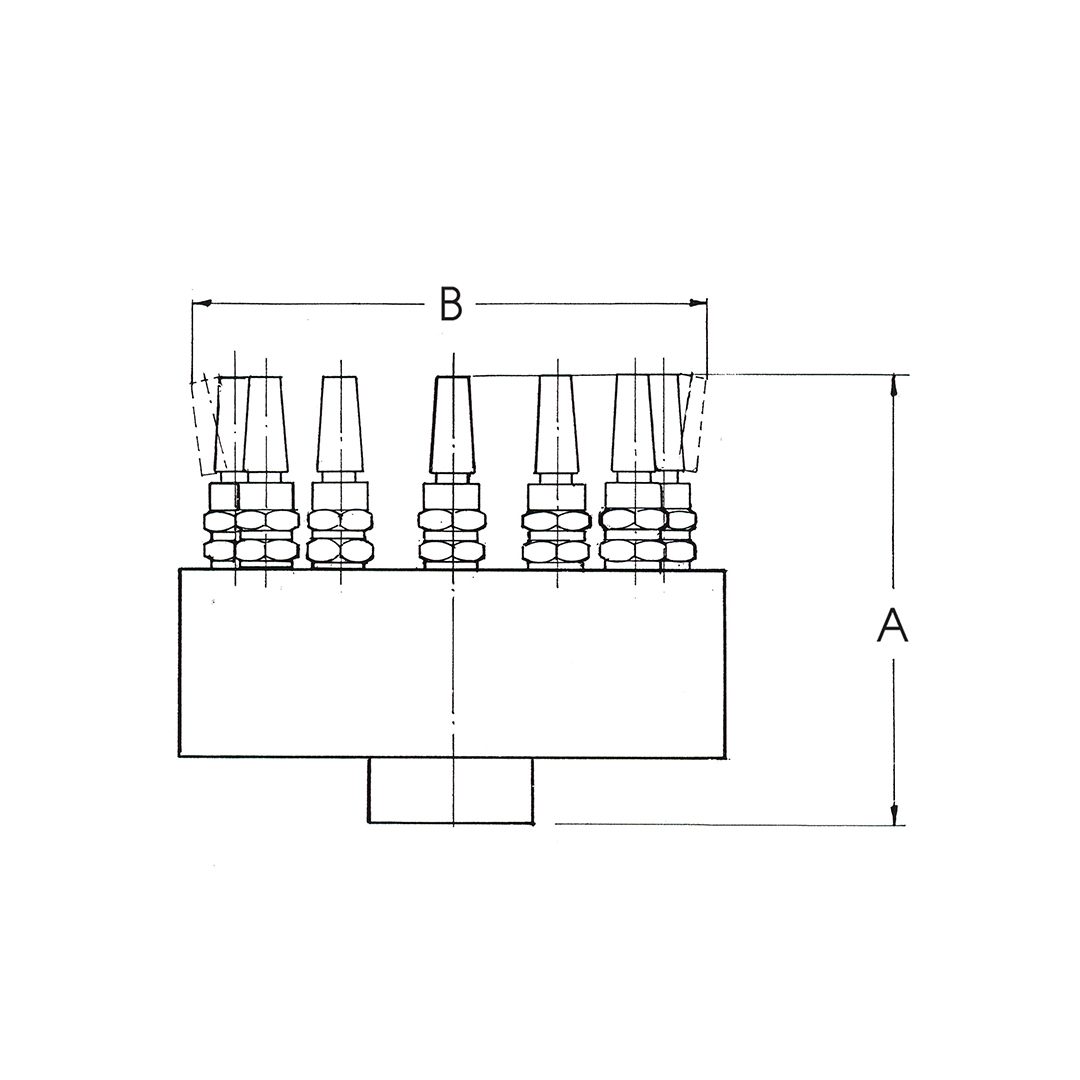

Dimensions & Performances
ZOOM IN
| Code | Inlet BSP | Α (mm) | B (mm) |
|---|---|---|---|
| ADL-100 | 1/2″ | 85 | 100 |
| ADL-135 | 1¼” | 95 | 135 |
| ADL-210 | 1¼” | 140 | 210 |
| ADL-275 | 2″ | 190 | 260 |
| ADL-300 | 3″ | 230 | 260 |
| ADL-340 | 4″ | 230 | 260 |
| ADL-500 | 5″ | 260 | 310 |
Catalogue
