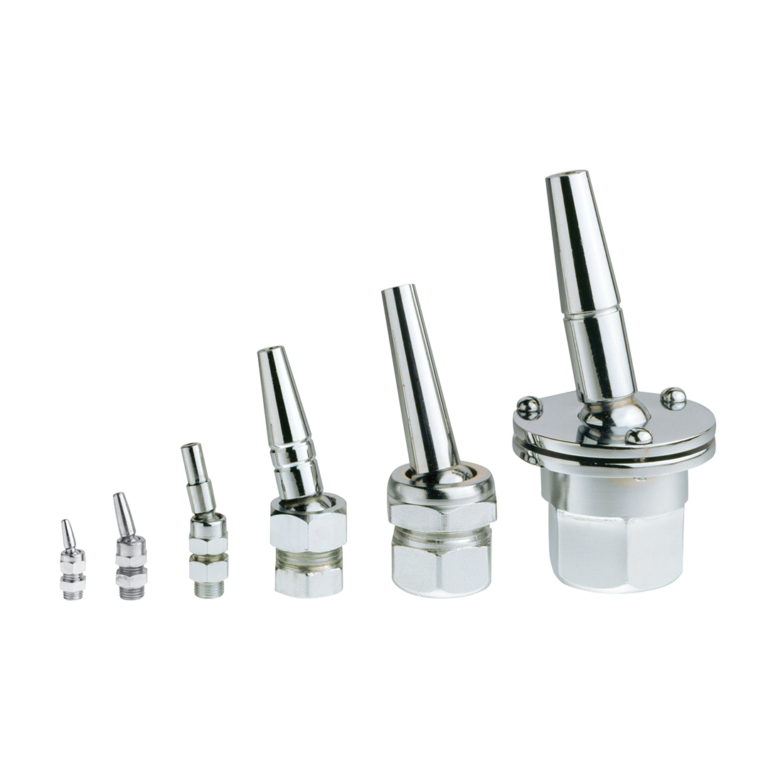

Αdjustable smooth bore jet
MODEL:
ASB
MANUFACTURER:
A smooth bore nozzle forms a long, clear stream of water.

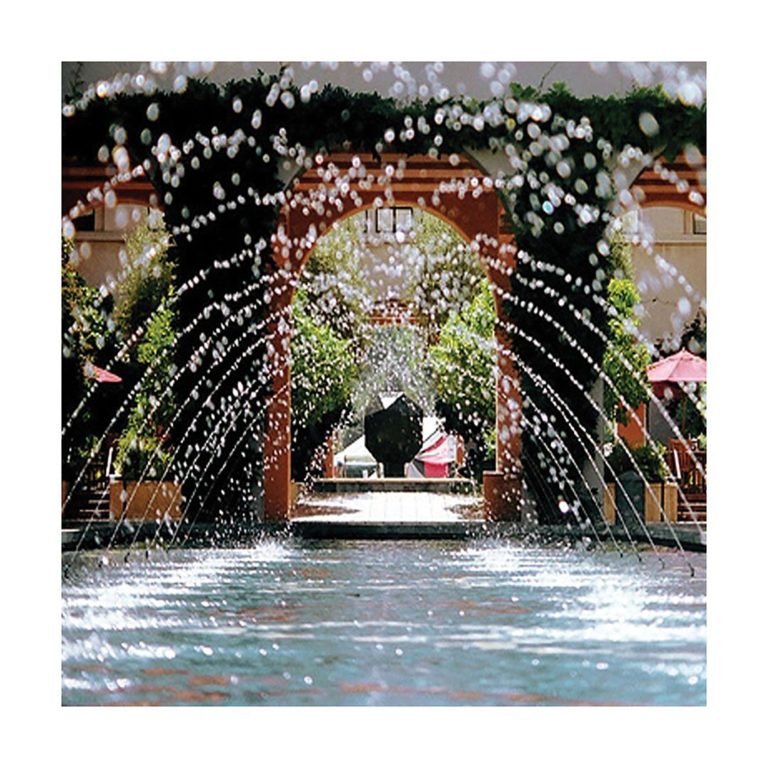

Its pressure water column is extremely impressive wherever the nozzle is used as a single unit or in groups on spray rings or spray lines.
A 15° angle can be set in position due to its adjustable construction.
Visibility: ★★★★☆
Sound level: ★★★☆☆
Wind resistance: ★★★☆☆
Splash: ★★★☆☆
Dependent on water level position: No
Specifications
- Cast bronze and brass chrome plated construction.
- Fine protection pump screening that forbids foreign materials to enter.
Options:
- Cast bronze without chrome plating.
- ΝPT thread.

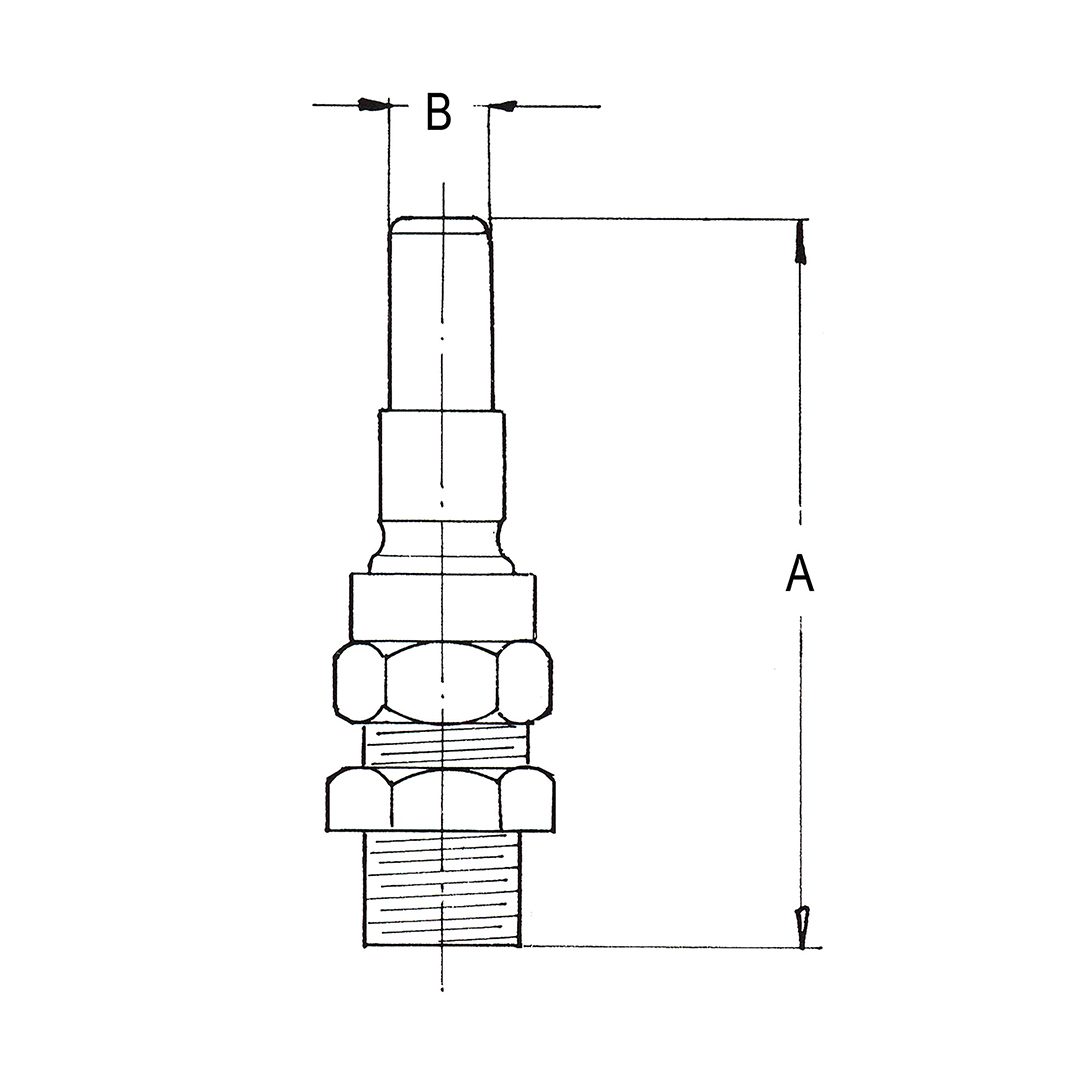

Dimensions & Performances
ZOOM IN
| Code | Inlet BSP | Α (mm) | B (mm) |
|---|---|---|---|
| ASB-180 | 1/8″ | 40 | 2 |
| ASB-140 | 1/4″ | 65 | 4 |
| ASB-380 | 3/8″ | 72 | 4 |
| ASB-381 | 3/8″ | 72 | 6 |
| ASB-120 | 1/2″ | 72 | 6 |
| ASB-121 | 1/2″ | 95 | 9,5 |
| ASB-340 | 3/4″ | 135 | 6 |
| ASB-341 | 3/4″ | 135 | 9,5 |
| ASB-100 | 1″ | 150 | 9,5 |
| ASB-101 | 1″ | 150 | 12,5 |
| ASB-112 | 1½” | 160 | 16 |
| ASB-200 | 2″ | 180 | 22 |
| ASB-300 | 3″ | 300 | 28 |
