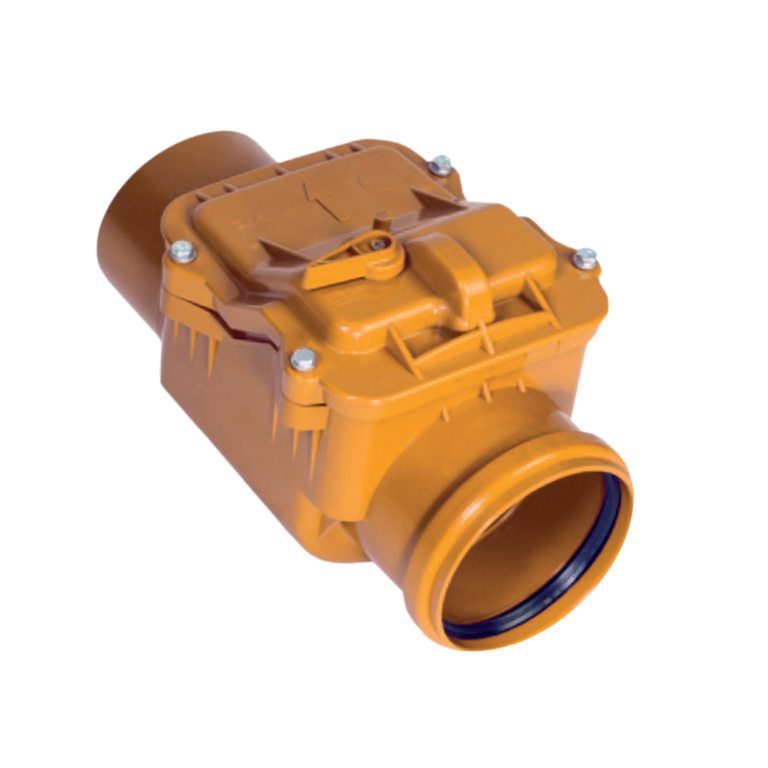

Anti-flooding valve
MODEL:
237110003000
Pipes and fittings for home and road drainage systems. Together with the appropriate components, they are intended to be used for the removal of any kind of sewage.
Produced from unplasticized polyvinyl chloride (PVC-U).

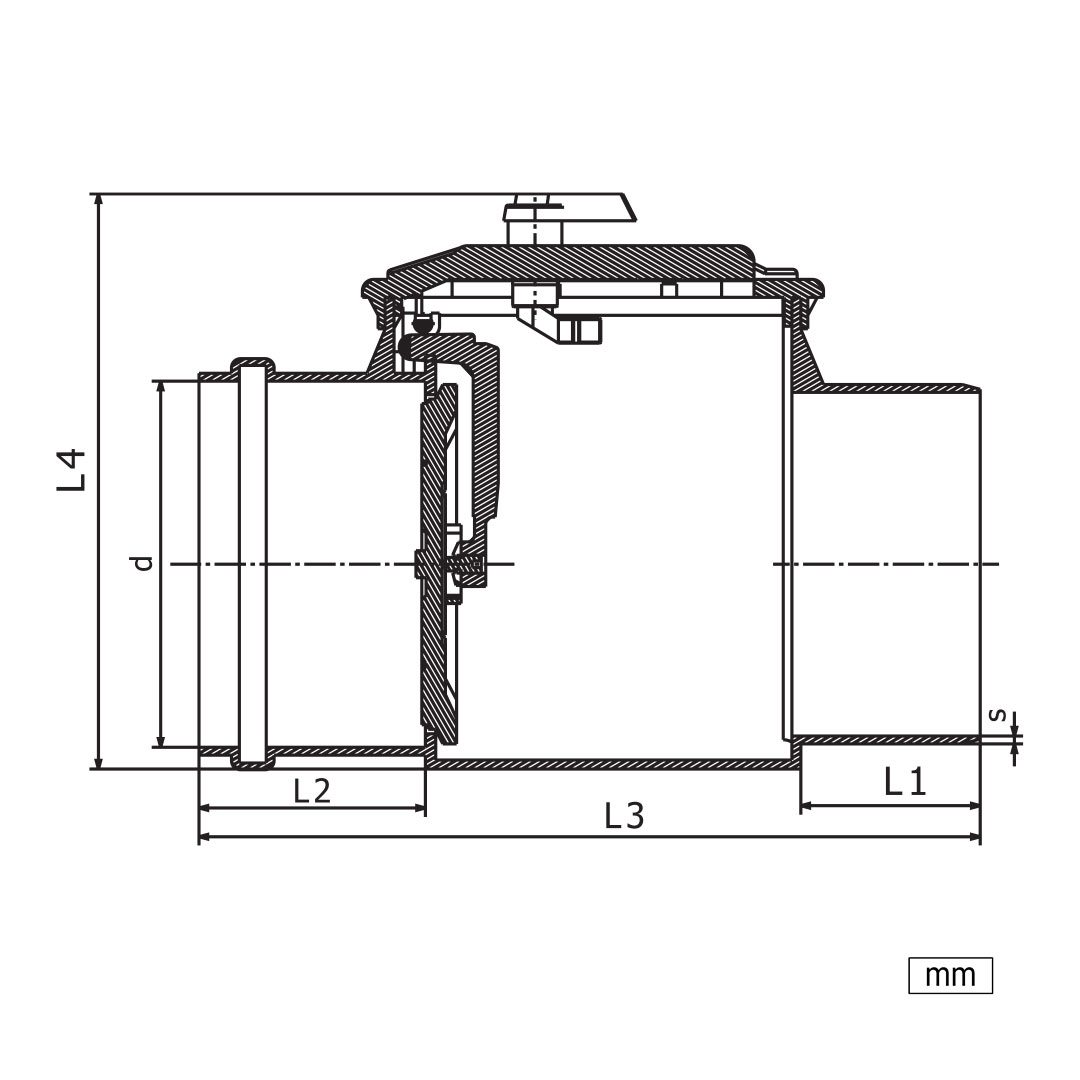

Dimensions & Performances
ZOOM IN
| Code | D (Ø) | S | L1 | L2 | L3 | L4 |
|---|---|---|---|---|---|---|
| 237110003000 | 110 | 4 | 64 | 64 | 320 | 189 |
| 237125003000 | 125 | 4 | 68 | 65 | 318 | 226 |
| 237160003000 | 160 | 4 | 68 | 103 | 350 | 248 |
| 237200003000 | 200 | 4,5 | 100 | 86 | 455 | 300 |
| 237250003000 | 250 | 6,2 | 144 | 104 | 566 | 365 |
| 237315003000 | 315 | 7,7 | 160 | 116 | 728 | 454 |
Catalogue
