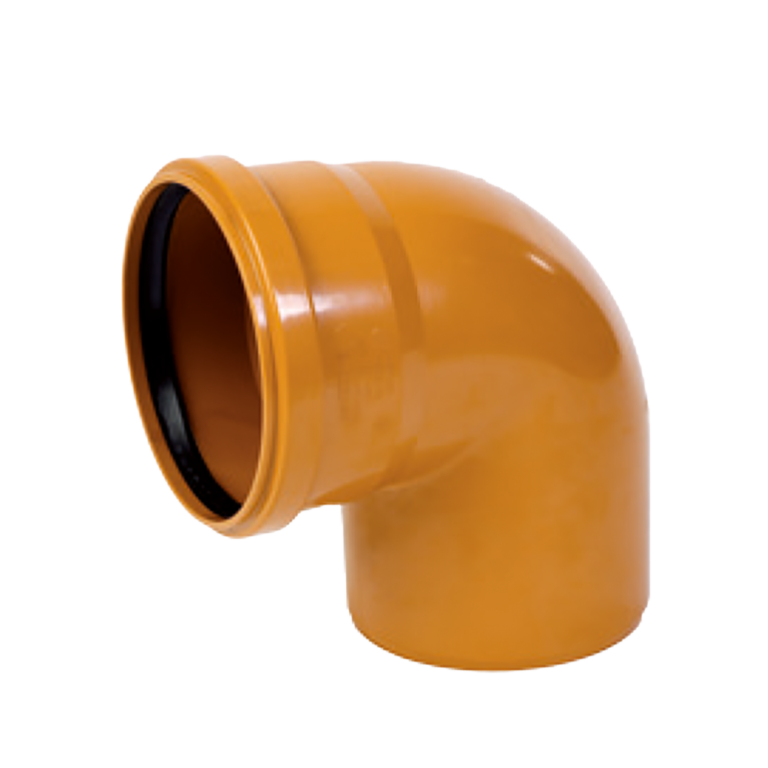

Bend 87,5° with O-ring

Name: Bend 87,5° with O-ring
SKU: 211110873000
Price: 1.00 EUR
Availability: InStock

MODEL: 211110873000

Pipes for domestic and street sewerage systems together with the appropriate coupling sleeves are intended to be used for the removal of all kinds of wastewater.

They are produced from unplasticized polyvinyl chloride (PVC-U).

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

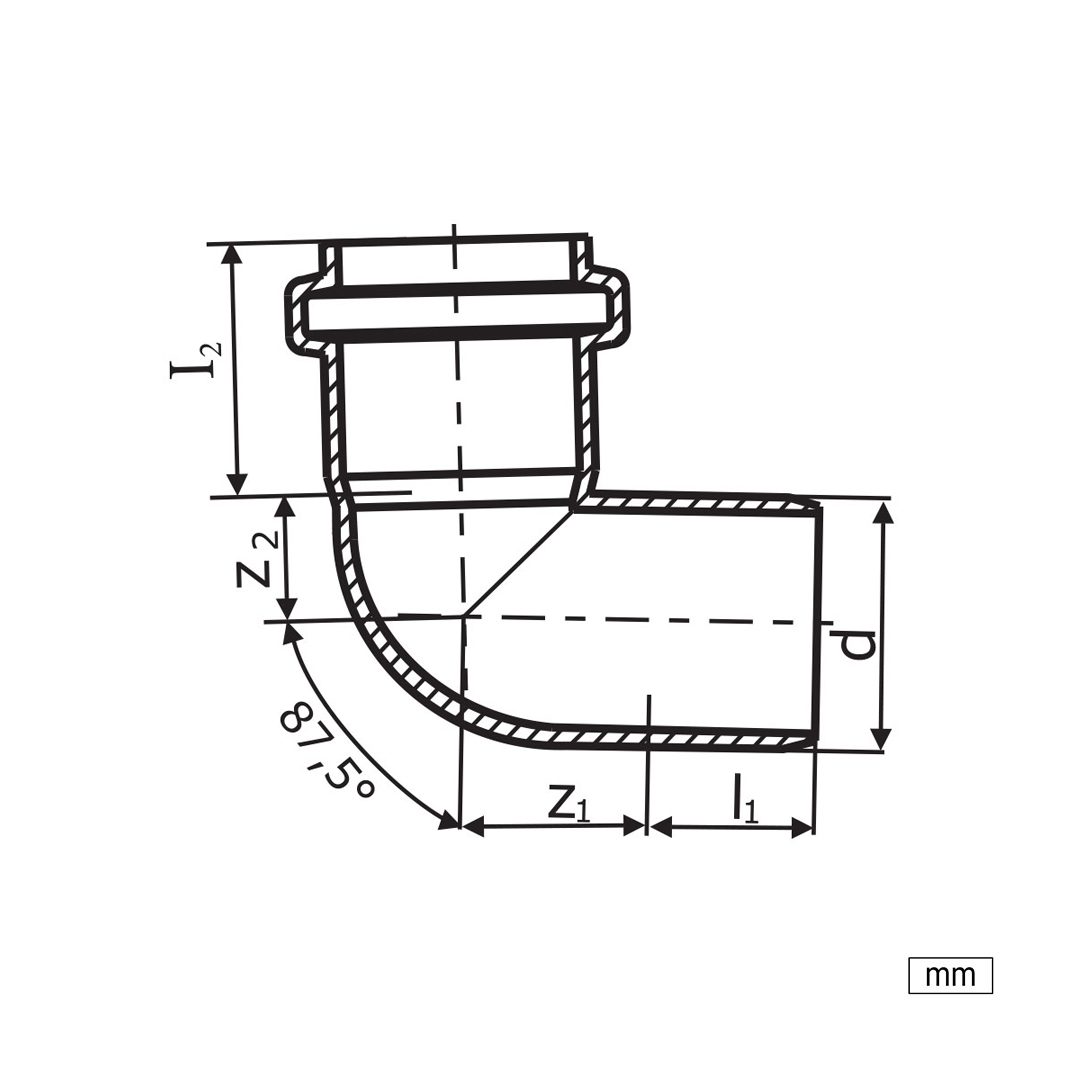

Code	D	S	Z 1	Z 2	I 1 min	I 2
211110873000	110	3,3	53,2	62,8	61	49,1
211125873000	125	3,3	60,4	70	68	54,6
211160873000	160	4	83	89	81	86
211200873000	200	4,9	105	114	99	106
211250873000	250	6,2	131	143	125	128
211315873000	315	7,7	165	180	132	155
211400873000	400	9,8	193,3	121,2	150	119
211500873000	500	–	–	–	–	–
