Bobbin wound media filters
MODEL:
HCF STANDARD
MANUFACTURER:

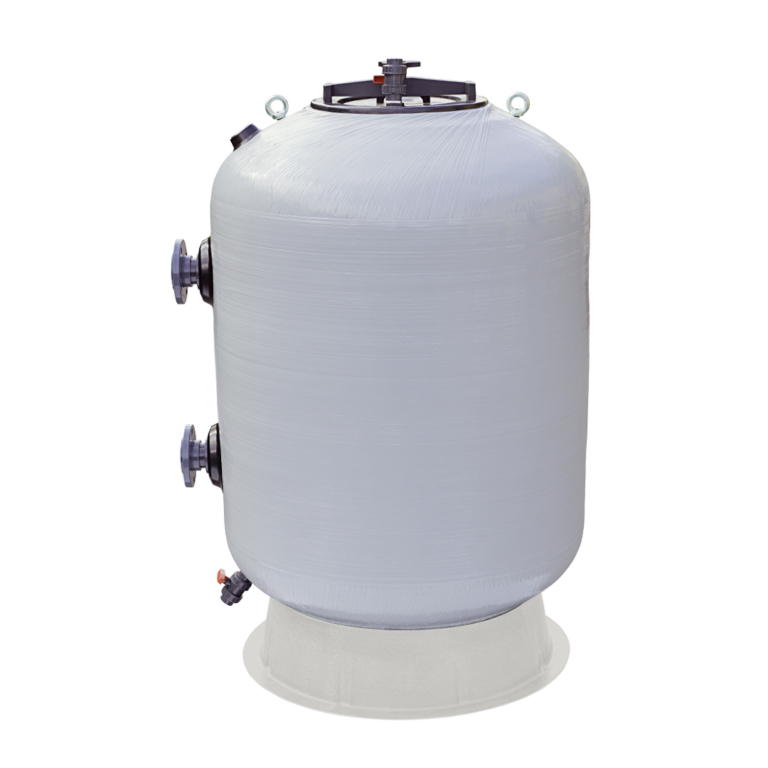

The HCF Standard filter series is manufactured with bobbin-wound glass-fibre yarn and reinforced with polyester resin (GFRP technology) for outstanding heavy-duty performance.
Additional options on request:
– Sight glass.
– Air Relief: 1″ Trifunctional system.
– Round or oval manhole.
– Vertical or horizontal manometer panel.
– Nozzle plate.
Specifications
-
Wide diameter range: 1050mm to 3000mm.
-
Filtration bed depth: 1m.
-
Filtration bed depth: 1.2m and 1.5m on request.
-
Sand outlet 63mm or 90mm in diameter, water drain 1″.
-
Large opening on top for easy maintenance 400x300mm.
-

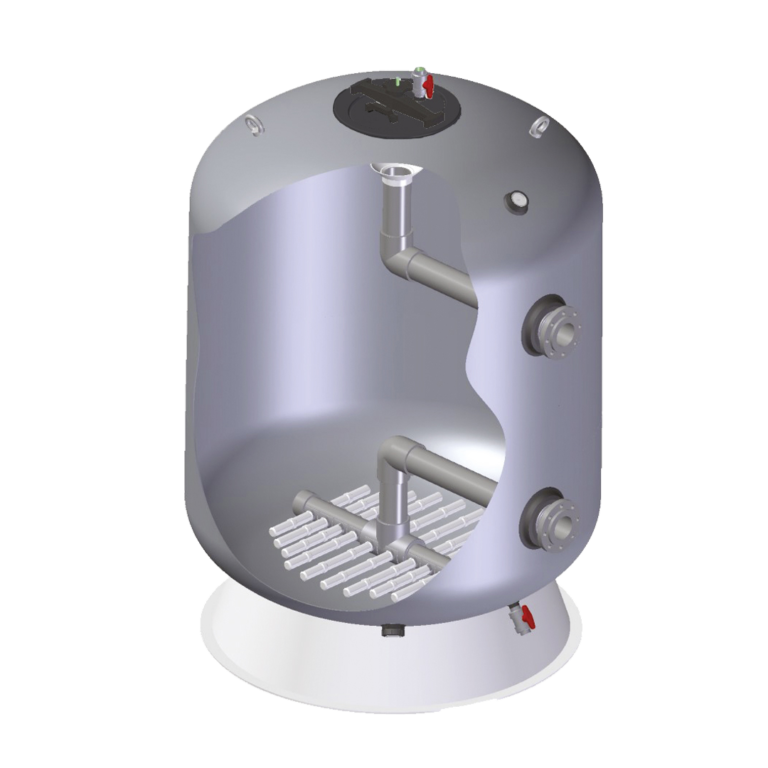

Arm collector as standard.
-
Nozzle plate on request.
-
Air relief ball valve included.
-
Suitable for very large pools, water parks, and industrial water treatment applications.

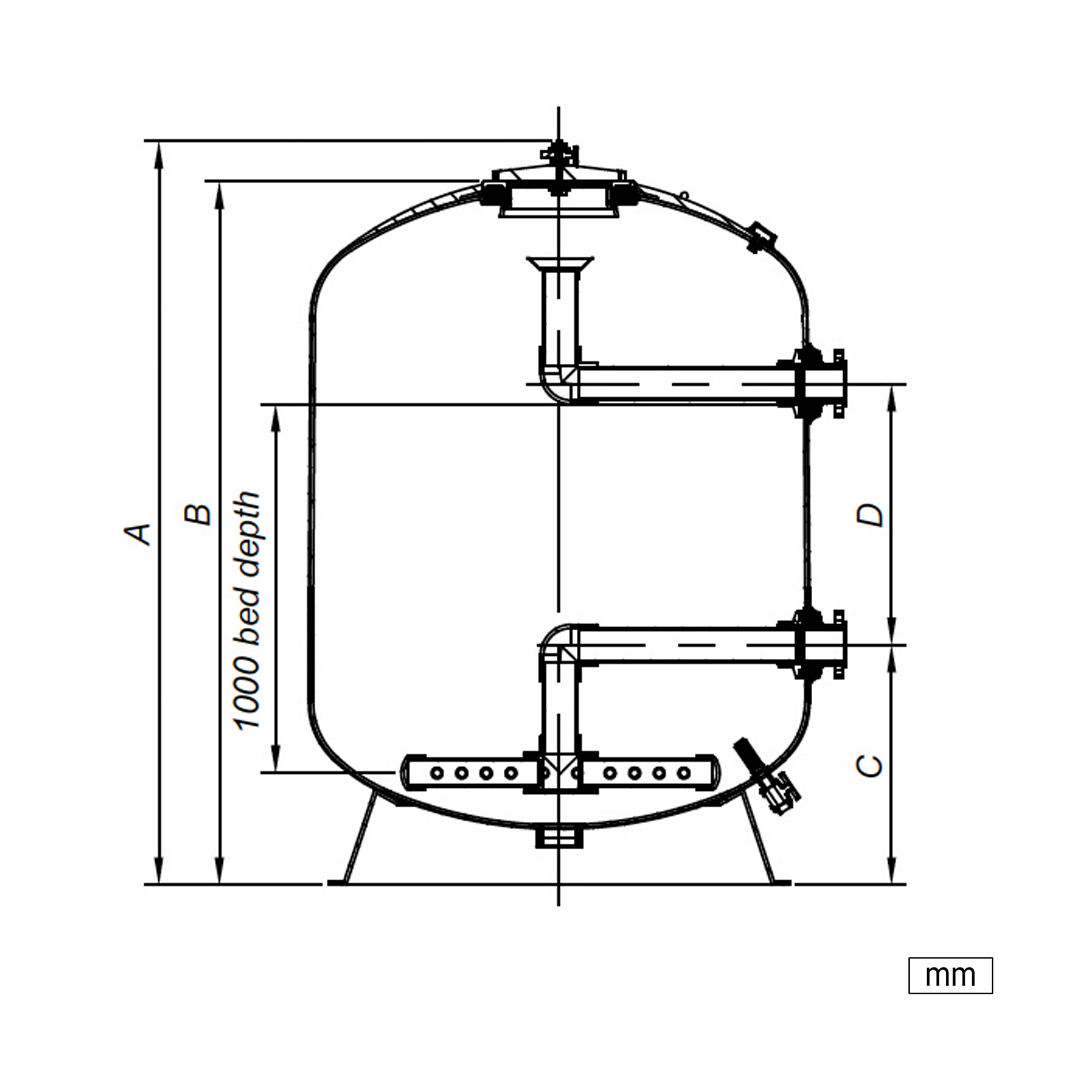

Dimensions & Performances
ZOOM IN
| Diameter Ø (mm) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 1050 | 1816 | 1680 | 625 | 550 |
| 1200 | 1816 | 1680 | 630 | 550 |
| 1400 | 1816 | 1680 | 630 | 550 |
| 1600 | 1916 | 1780 | 720 | 490 |
| 1800 | 1956 | 1820 | 750 | 440 |
| 2000 | 2060 | 1920 | 770 | 490 |
| 2200 | 2135 | 2005 | 850 | 420 |
| 2350 | 2376 | 2240 | 940 | 500 |
| 2500 | 2700 | 2560 | 1080 | 550 |
| 3000 | 2870 | 2735 | 1175 | 550 |
