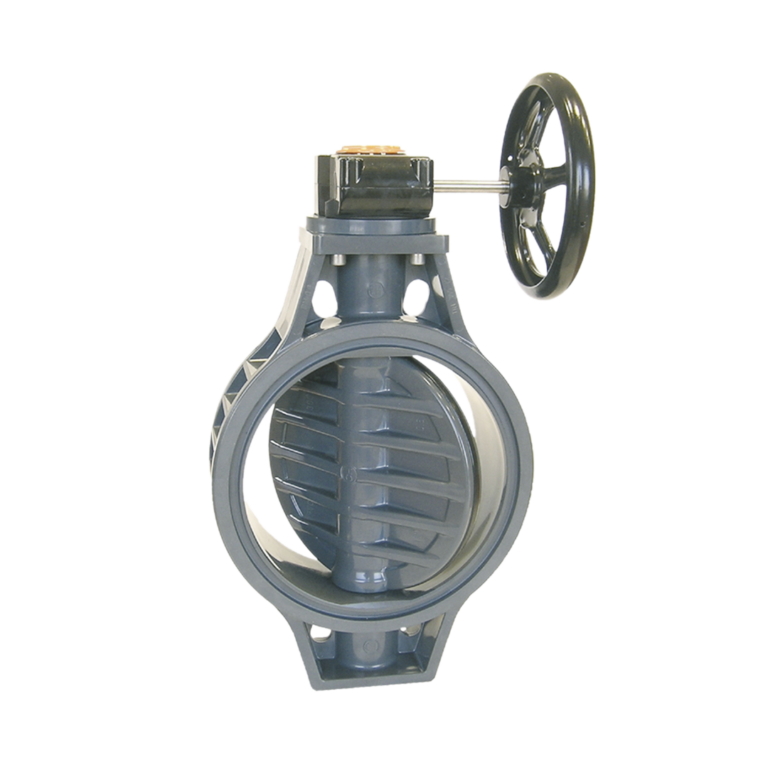

Βutterfly valve with gear operator

MODEL: 2700
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

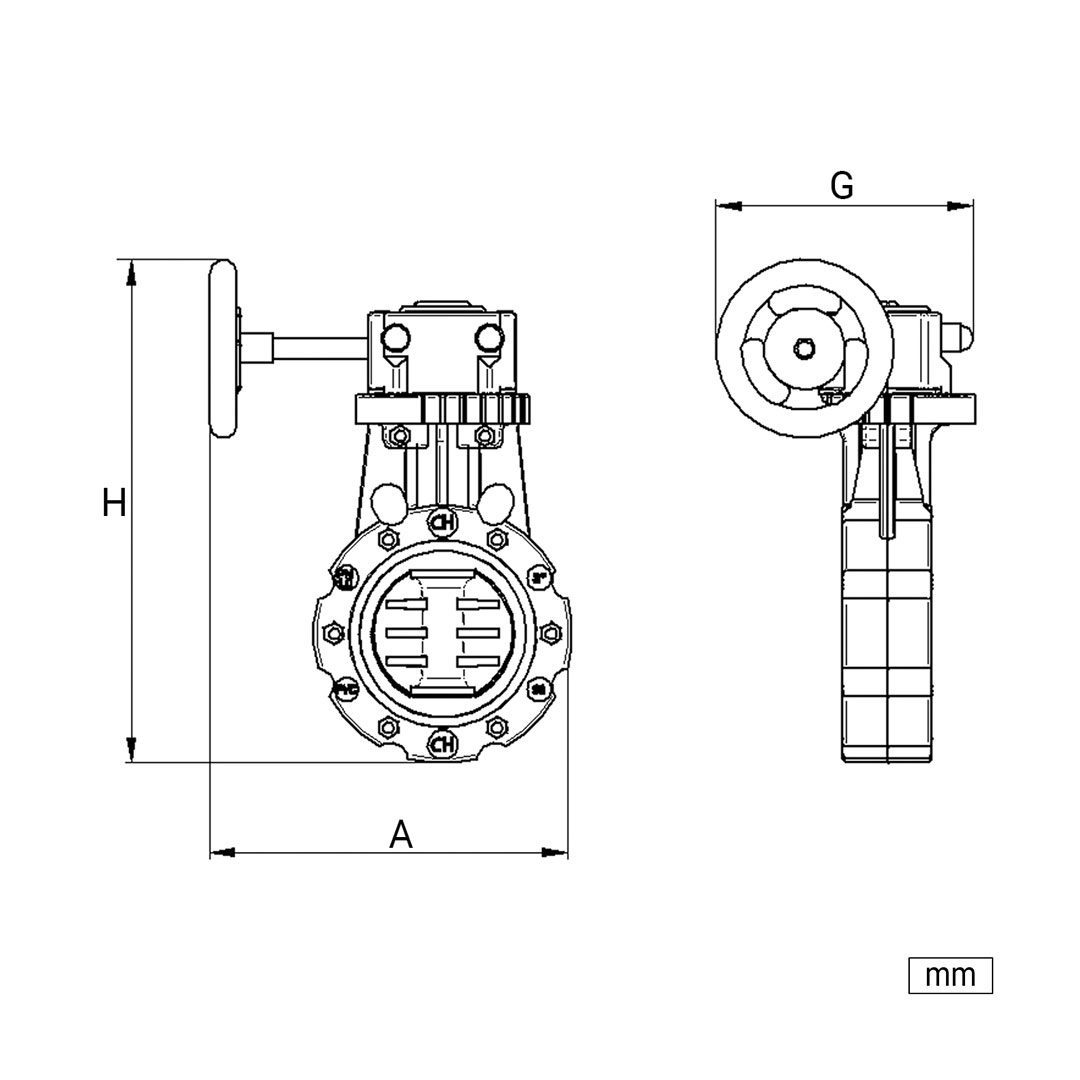

    Dimensions & Performances
    CodeValveDNAGHØ
    27000012”50210170271,563−2”
    27000022½”6523017028875−2½”
    27000033”8024017029890−3”
    27000044”100240170343110−4”
    27000055”125241190384125/140−5”
    27000066”150254190441160−6”
    27000088”200289190504200/225−8”
    270001010”250338220589250−10”
    270001212”300435330745315−12”
