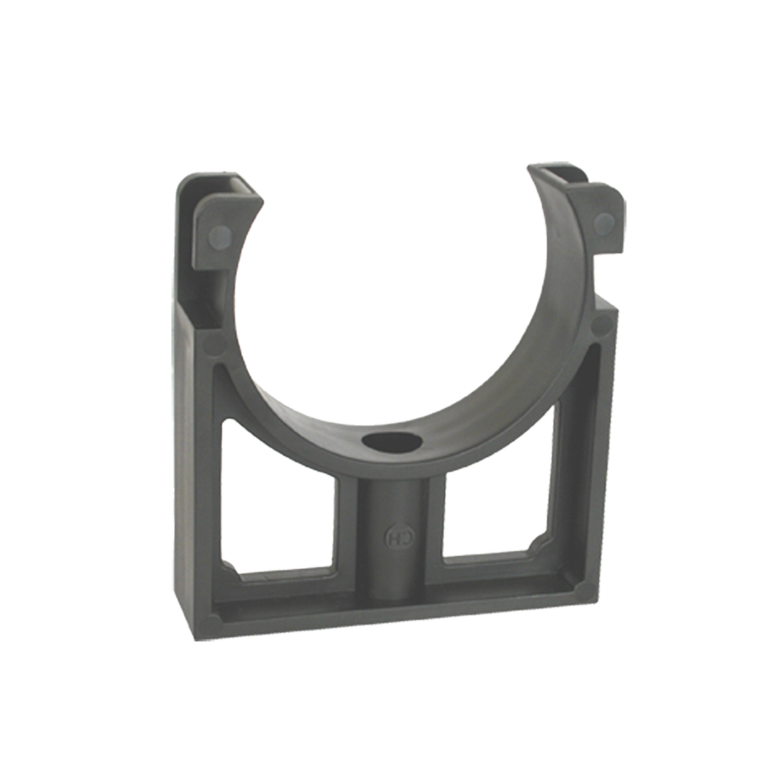

Open pipe clip
MODEL:
7128
MANUFACTURER:
Plastic pipe fittings are designed to support and fasten the pipes.
Used in the assembly of the pipes to the wall (vertically and horizontally), to the ceiling, and to the ground.
Available in many dimensions and for various applications.

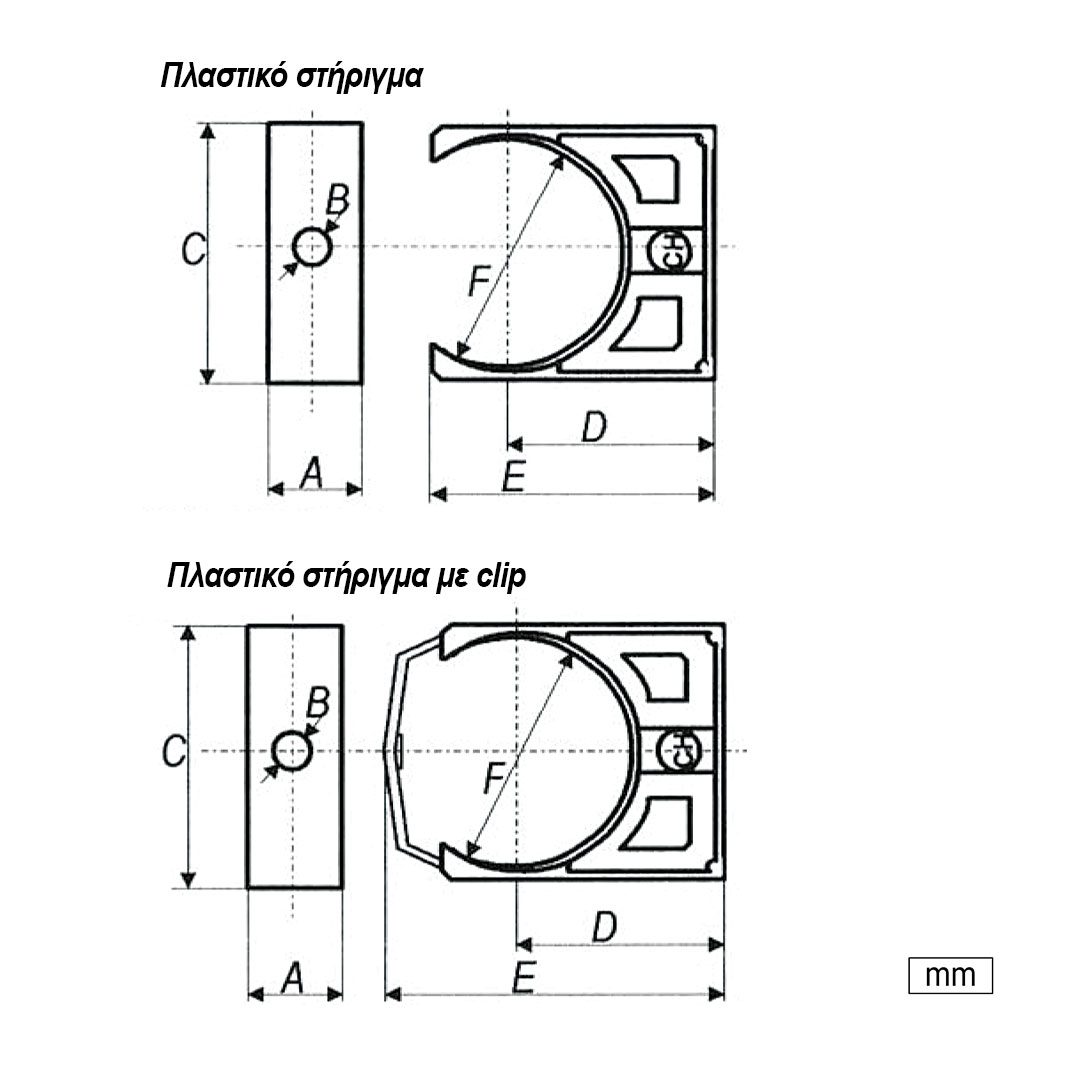

Dimensions & Performances
ZOOM IN
| Code | Ø | Type | Α | Β | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| 7128020 | 20 | Without clip | 16 | 5 | 33 | 26 | 34 | 20 |
| 7128025 | 25 | Without clip | 16 | 5 | 38 | 30 | 40 | 25 |
| 7128032 | 32 | Without clip | 16 | 5 | 48 | 35 | 45 | 32 |
| 7128040 | 40 | Without clip | 18 | 5 | 54 | 43 | 55 | 40 |
| 7128050 | 50 | With clip | 22 | 8 | 65 | 50 | 79 | 50 |
| 7128063 | 63 | With clip | 25 | 8 | 79 | 58 | 94 | 63 |
| 7128075 | 75 | With clip | 27 | 9 | 94 | 79 | 119 | 75 |
| 7128090 | 90 | With clip | 30 | 9 | 110 | 90 | 139 | 90 |
| 7128110 | 110 | With clip | 30 | 9 | 137 | 108 | 169 | 110 |
| 7128125 | 125 | With clip | 30 | 8,5 | 165 | 110 | 178 | 124 |
| 7128140 | 140 | With clip | 30 | 8,5 | 197 | 110 | 186 | 139 |
| 7128160 | 160 | With clip | 30 | 8,5 | 218 | 127,5 | 213 | 159 |
| 7128200 | 200 | With clip | 30 | 8,5 | 274 | 155 | 263 | 199 |
Catalogue
