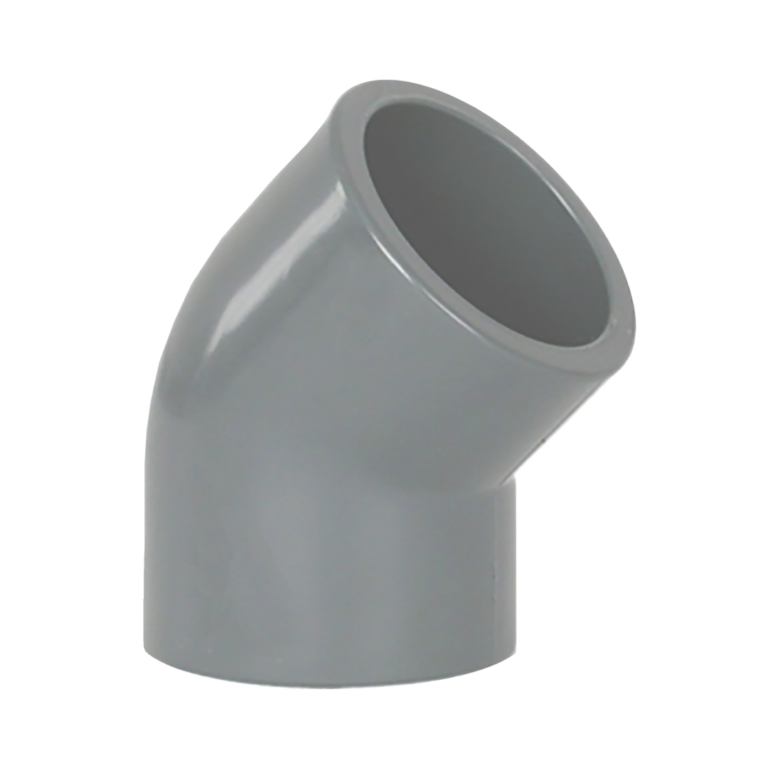

Elbow 45° solvent
MODEL:
ELNI-4
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Work Conditions:
- Cement joint fittings: PN16.
- Threaded fittings: PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a tetrahydrofuran adhesive for solvent cement fittings is recommended.
Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | PN | Ø |
|---|---|---|---|---|---|---|---|
| ELNI−4050 | 40 | 50 | 63 | 31 | 11,5 | 16 | 50 |
| ELNI−4063 | 50 | 63 | 75 | 38 | 14 | 16 | 63 |
| ELNI−4075 | 65 | 75 | 90 | 44 | 16,5 | 16 | 75 |
Catalogue
