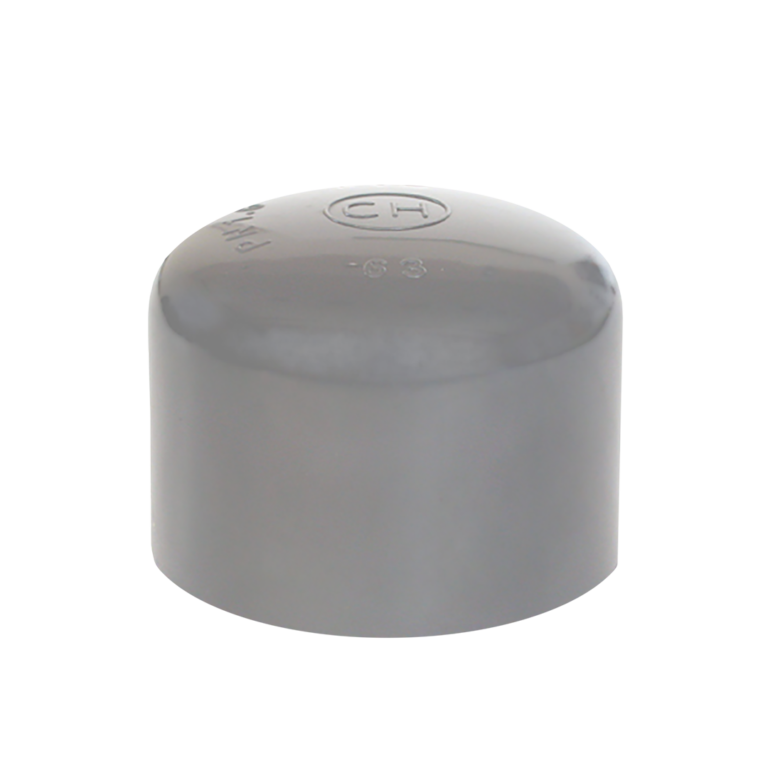

Female Cap solvent
MODEL:
7107
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

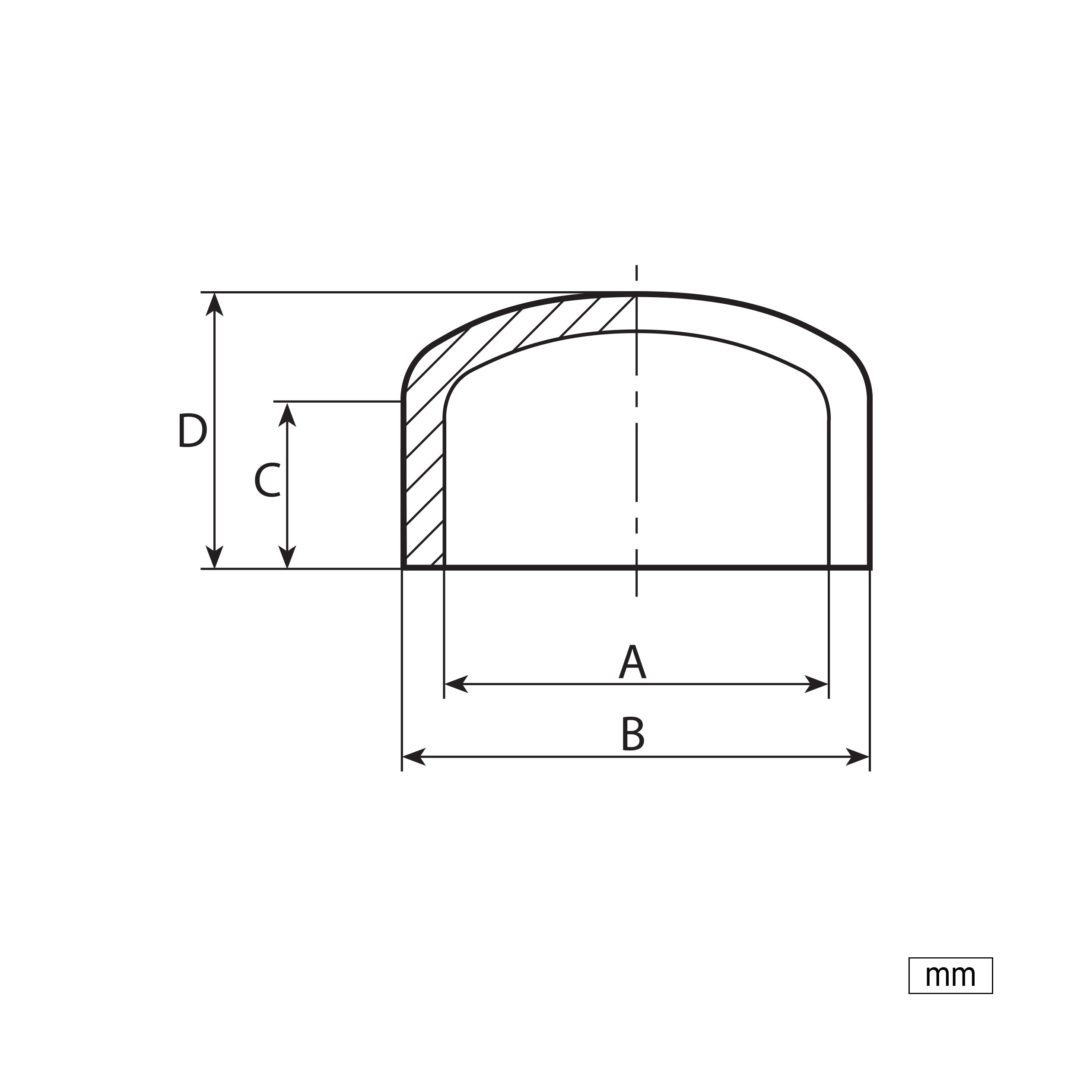

Dimensions & Performances
ZOOM IN
| Code | A | B | C | D | Ø |
|---|---|---|---|---|---|
| 7107016 | 16 | 20 | 14 | 20 | 16 |
| 7107020 | 20 | 25 | 16 | 25 | 20 |
| 7107025 | 25 | 32 | 19 | 29 | 25 |
| 7107032 | 32 | 40 | 22 | 32 | 32 |
| 7107040 | 40 | 50 | 26 | 39 | 40 |
| 7107050 | 50 | 63 | 31 | 47 | 50 |
| 7107063 | 63 | 75 | 38 | 59 | 63 |
| 7107075 | 75 | 90 | 44 | 61 | 75 |
| 7107090 | 90 | 110 | 51 | 75 | 90 |
| 7107110 | 110 | 131 | 61 | 91 | 110 |
| 7107125 | 125 | 150 | 69 | 102 | 125 |
| 7107140 | 140 | 167 | 76 | 111 | 140 |
| 7107160 | 160 | 185 | 86 | 123 | 160 |
| 7107200 | 200 | 226 | 106 | 150 | 200 |
| 7107225 | 225 | 252 | 119 | 175 | 225 |
| 7107250 | 250 | 280 | 131 | 186 | 250 |
| 7107315 | 315 | 352 | 164 | 226 | 315 |
