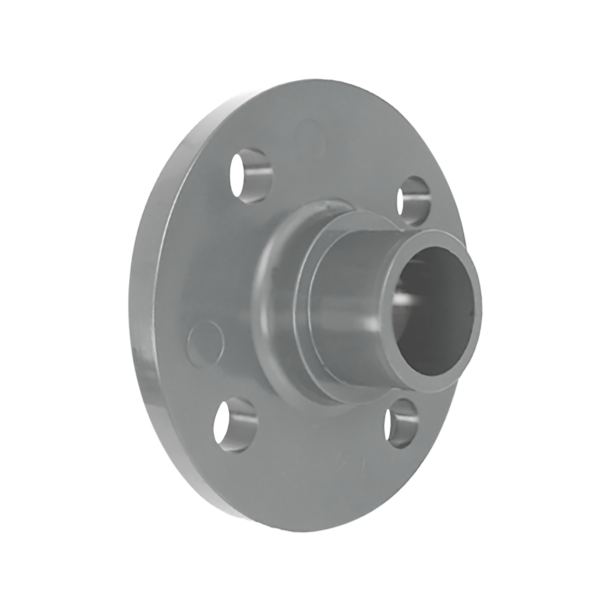

Fixed flange

Name: Fixed flange
SKU: 7122
Price: 1.00 EUR
Availability: InStock

MODEL: 7122

MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN 16 bar.
From 160mm to 315mm = PN 10 bar.
Threaded fittings:
All sizes PN 10 bar.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

Code	Ø	n (holes)	d	A	B	C	D	E	F	G	H
7122075	75	4	17	185	145	75	65	90	18	50	44
7122090	90	8	17	200	160	90	80	110	20	55	51
7122110	110	8	17	220	180	110	100	130	21	70	61
7122125	125	8	17	230	190	125	121	144	22	80	69
7122126	125	8	17	250	210	125	121	144	22	80	69
7122140	140	8	17	250	210	140	126	160	22	100	84
7122160	160	8	22	285	240	160	150	180	22	96	86
7122200	200	8	22	340	295	200	196	230	22	108	106
7122225	225	8	22	340	295	225	217	248	34	126	119
7122250	250	12	22	400	350	250	244	281	31	145	130
