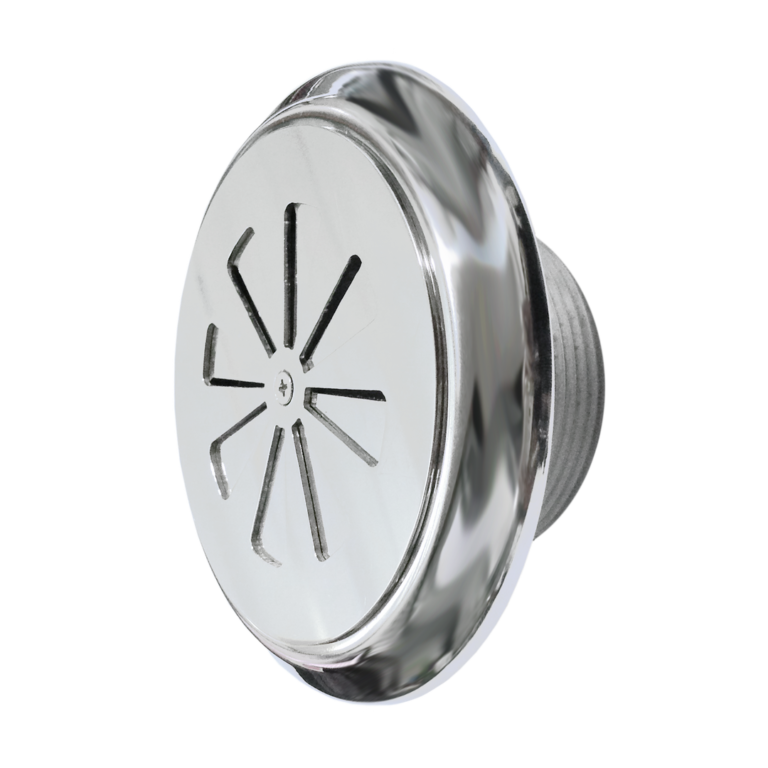

Fully S.S. water bottom inlet
MODEL:
CSBI
MANUFACTURER:
Injection moulded bottom inlet made entirely of AISI-316 stainless steel.
The top part of this inlet is flat-shaped. Adjustable flow rate.
Suitable for concrete pools.
Specifications
- Complete structure made of durable AISI-316 stainless steel.
- Flow rate: 14m³/h.
- Designed for concrete
- swimming pools.
- UV protection.

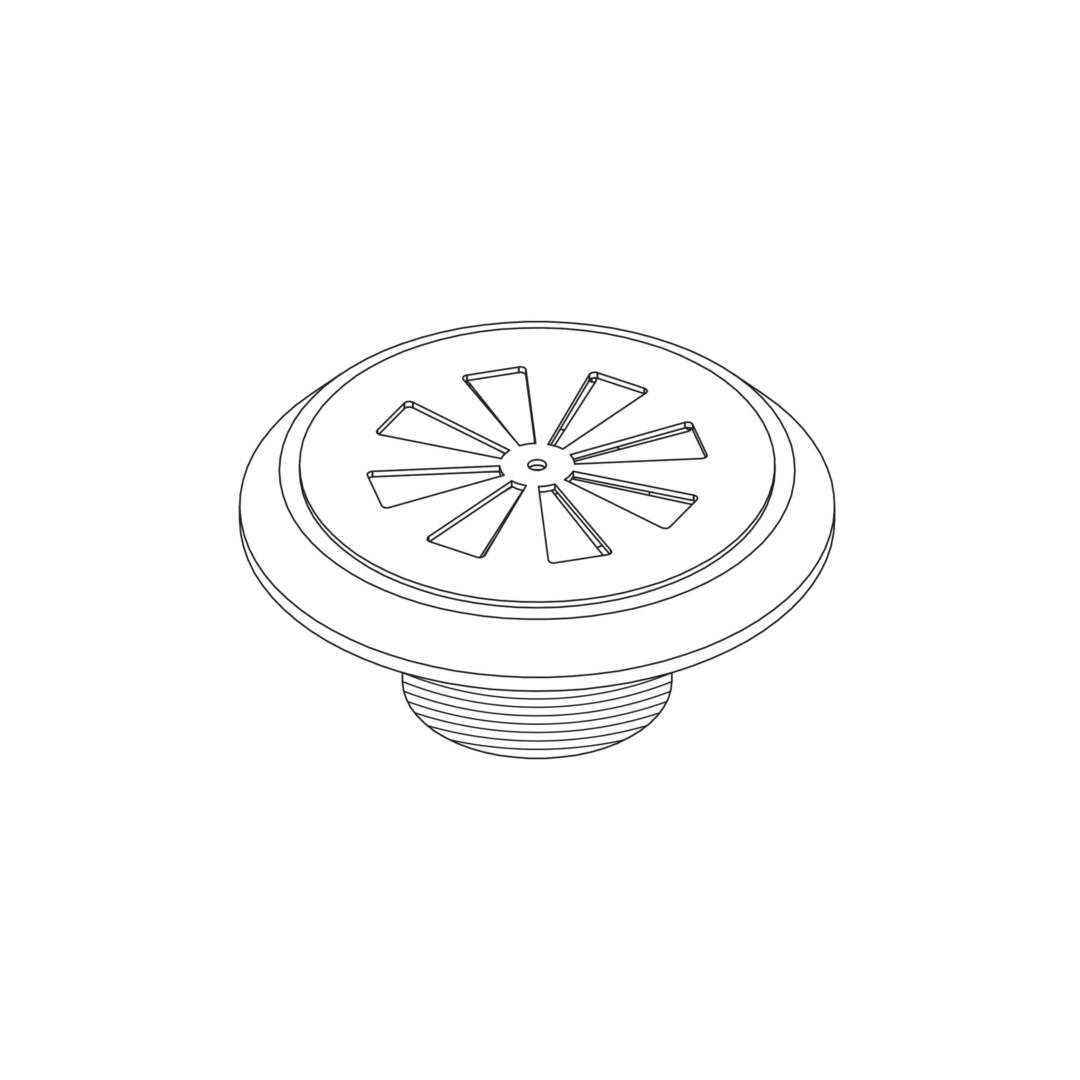

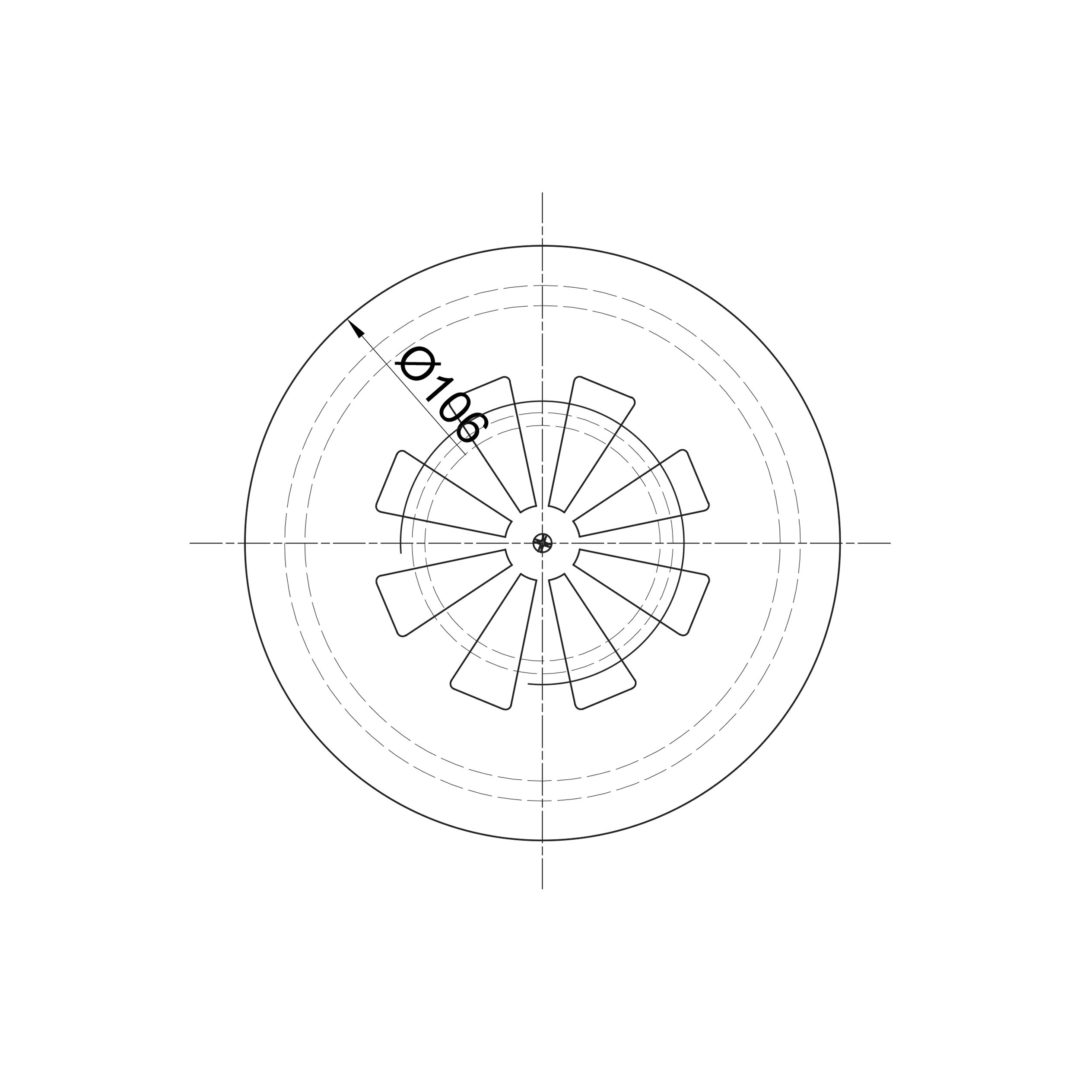

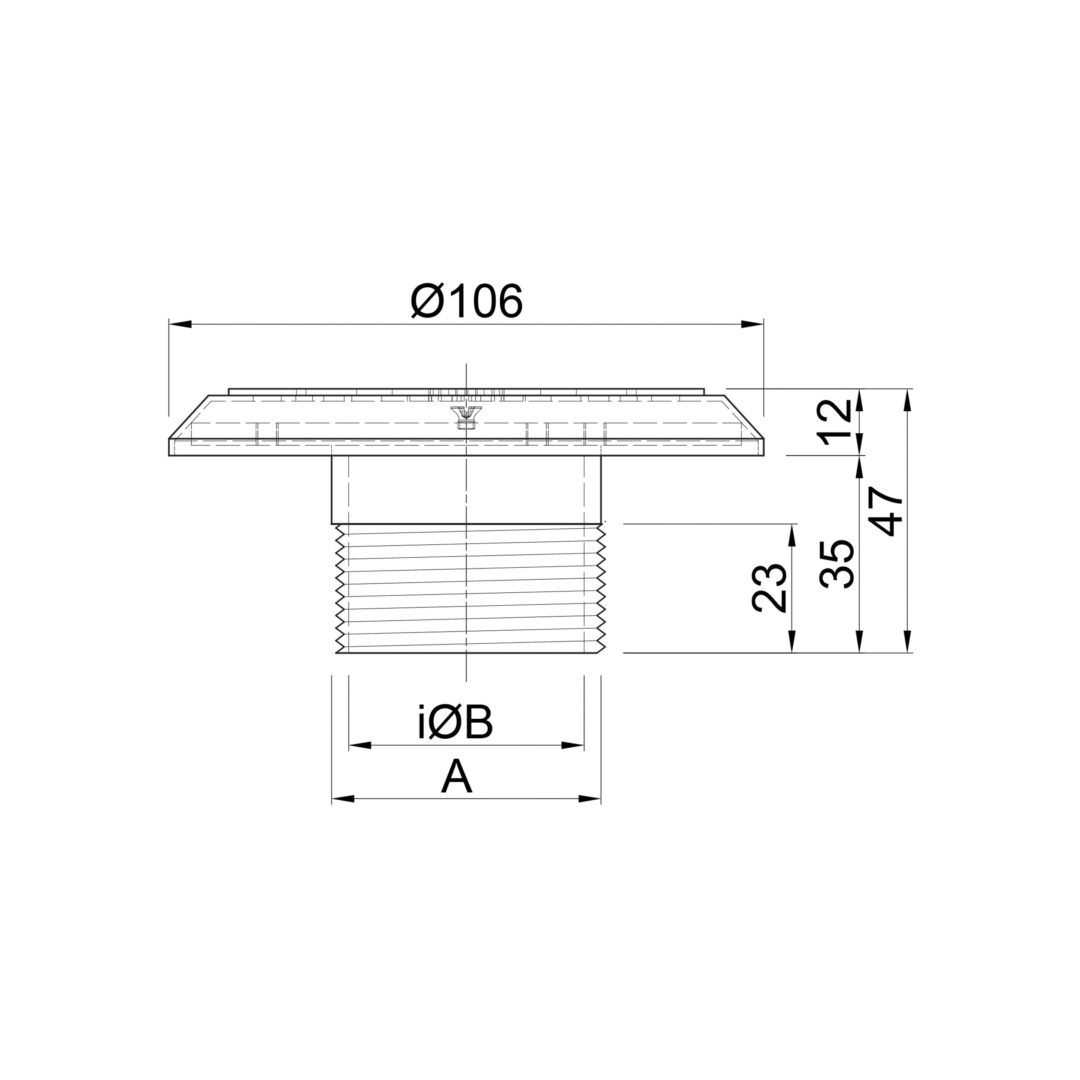

Dimensions & Performances
ZOOM IN
| Model | Connection | A | B |
|---|---|---|---|
| CSBI-150 | 1½” thread | 1½” | 42mm |
| CSBI-200 | 2” thread | 2” | 53mm |
Catalogue
