Ιnjector Booster
MANUFACTURER:

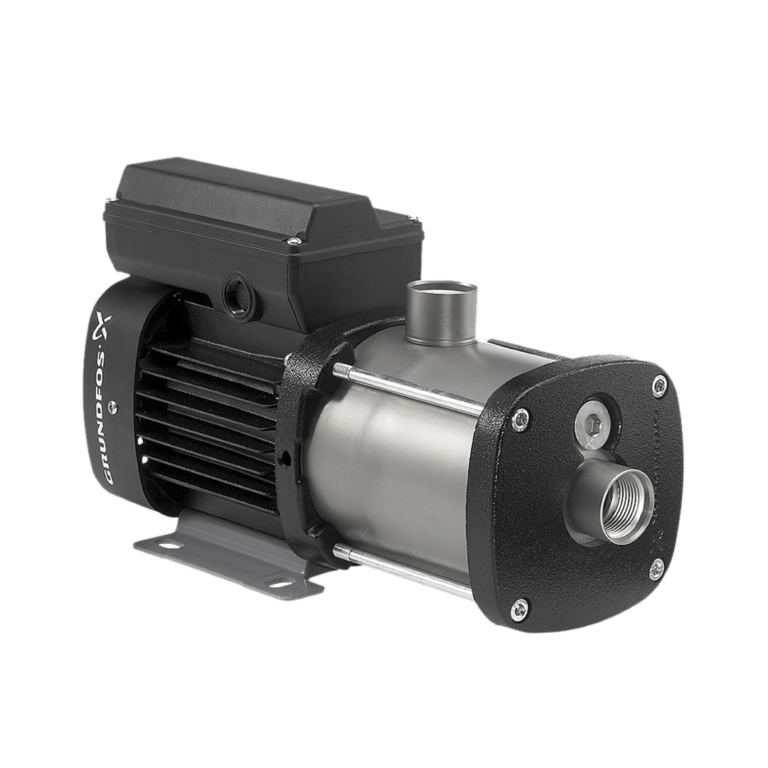

CM is a reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to make customised solutions.
Two sizes of booster pumps are used to drive the venturi injectors which draw the air through the ozone systems under vacuum and introduce the ozone gas into the water stream.
High quality and quiet operation.
Available in cast iron and stainless steel.
Specifications
- Pump materials: diffusers, impellers made of stainless steel AISI-304, suction and discharge port made of cast iron.
- Liquid temperature: from -20°C up to +90°C.
- Max. operating pressure: max. 10 bar from -20°C up to +40°C / 6 bar from +41°C up to +90°C.
- Sealing gaskets: EPDM (FKM on request).
- Protection class: IP55.
- Insulation class: F.
