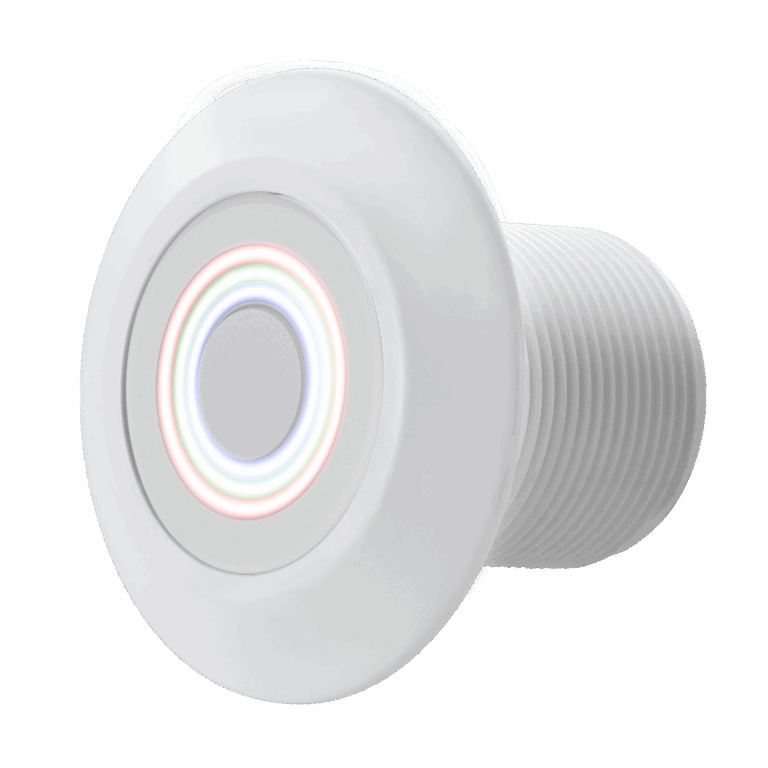

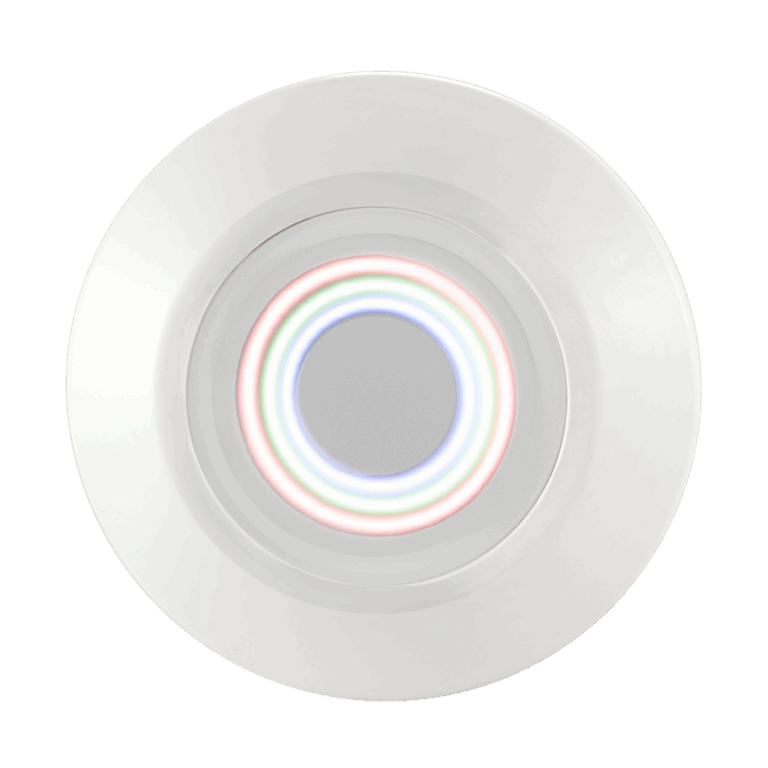

Recessed LED pool/spa light
MODEL:
ULSD-6
MANUFACTURER:
Elegant pool or spa light made from white ABS plastic, featuring a waterproof resin-filled LED bulb.
Perfect for concrete pools with white fittings, providing high-quality illumination from the bottom or walls.
Available with a 1.5” or 2” male thread for screw mounting or 63mm for push mounting. Suitable for wall or bottom installation.
Extra Equipment necessary for installation:
– WC-350: wall conduit + CCT-063: cap (2” male thread).
– PP-35063: wall pipe + CCT-063: cap (63mm push mounting).
Extra Equipment is required to switch the lighting program to RGB lights:
– RCP-1500: Control panel with remote control.
Specifications
- Μaterial: white ABS plastic.
- IP rating: IP68 up to a depth of 1m.
- Connection: 63mm (push mounting) or 1.5”/2″ male thread (screw mounting).
- Light colour: warm white, daylight white, or RGB.
- Dimming ability for warm white and daylight white illumination.
- 14 illumination programme modes.
- 2m of H07RN-F, cable size 2x1mm².
- Faceplate thickness: 9mm.
- Dimensions: Ø 83x65mm.
- Underwater installation.
- Installation position: wall/bottom.
- Type of pool: concrete.
- UV protection & chemical resistance.
Dimensions & Performances
ZOOM IN
Colour Chart
ZOOM IN
Black
Grey
Sand
Additional equipment
Catalogue
Downloads
