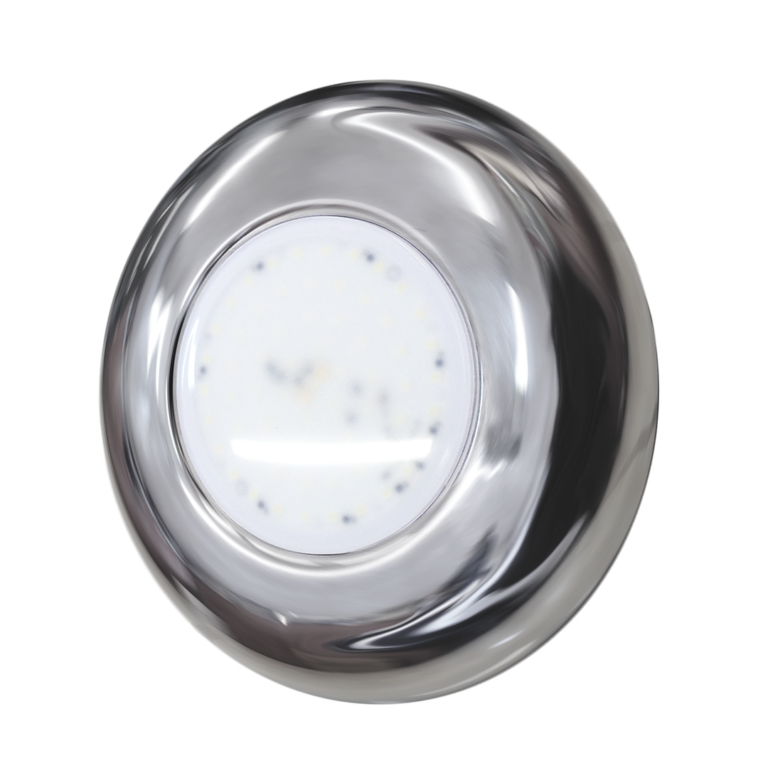

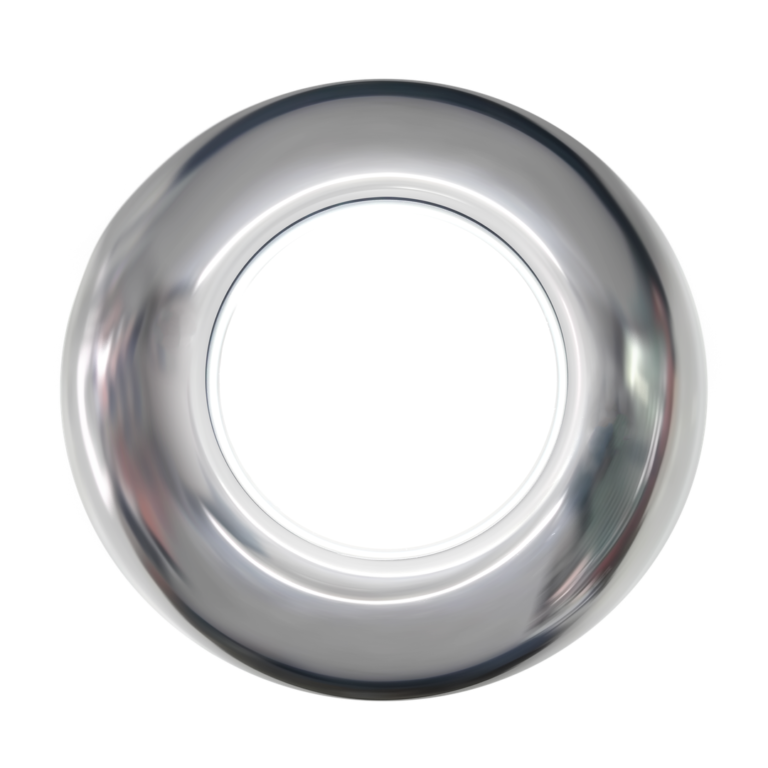

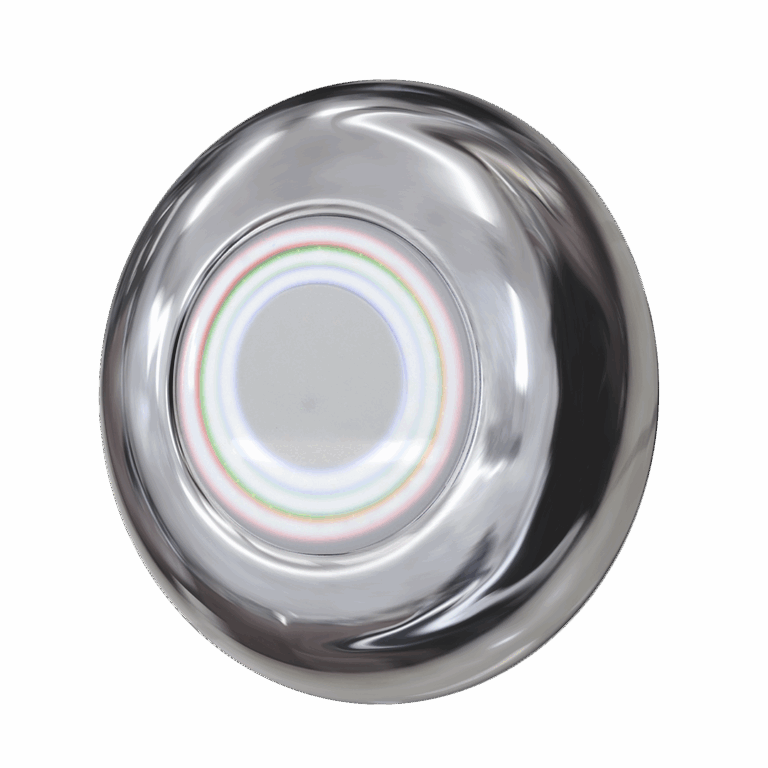

Recessed LED pool/spa light
MODEL:
ULSD-9
MANUFACTURER:
Underwater pool or spa light with a stainless steel AISI-316 faceplate for wall installation.

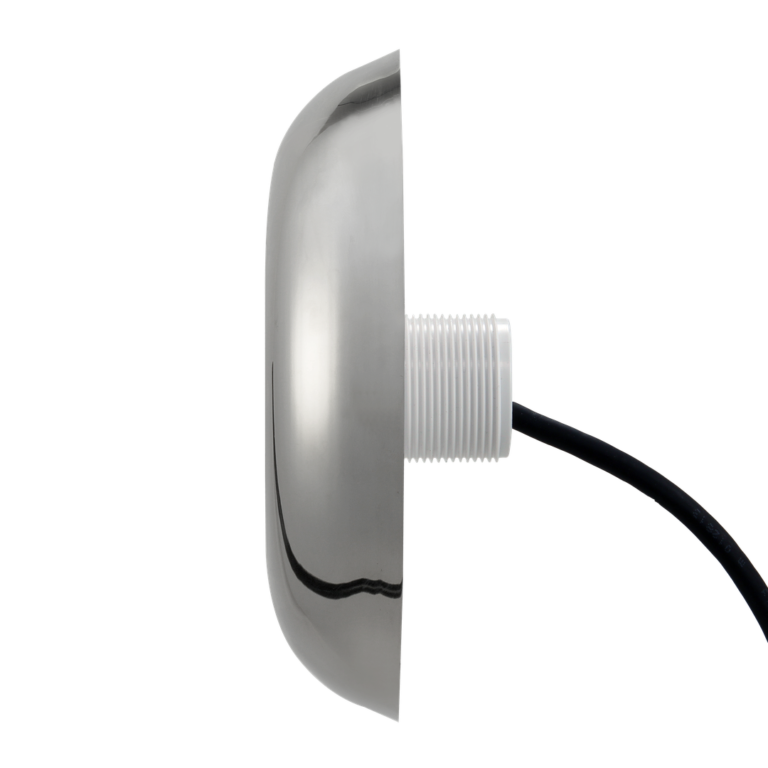

Available with a 1.5” or 2” male thread for screw mounting installation or 63mm for push mounting installation. An elegant choice for concrete pools.
Extra Equipment necessary for installation:
– WC-350: wall conduit + CCT-063: cap (2” male thread).
– PP-35063: wall pipe + CCT-063: cap (63mm push mounting).
Extra Equipment is required to switch the lighting program to RGB lights:
– RCP-1500: Control panel with remote control.
Specifications
- Μaterial: stainless steel (AISI-316).
- IP rating: IP68 up to a depth of 1m.
- Connection: 63mm (push mounting) or 1.5”/2″ male thread (screw mounting).

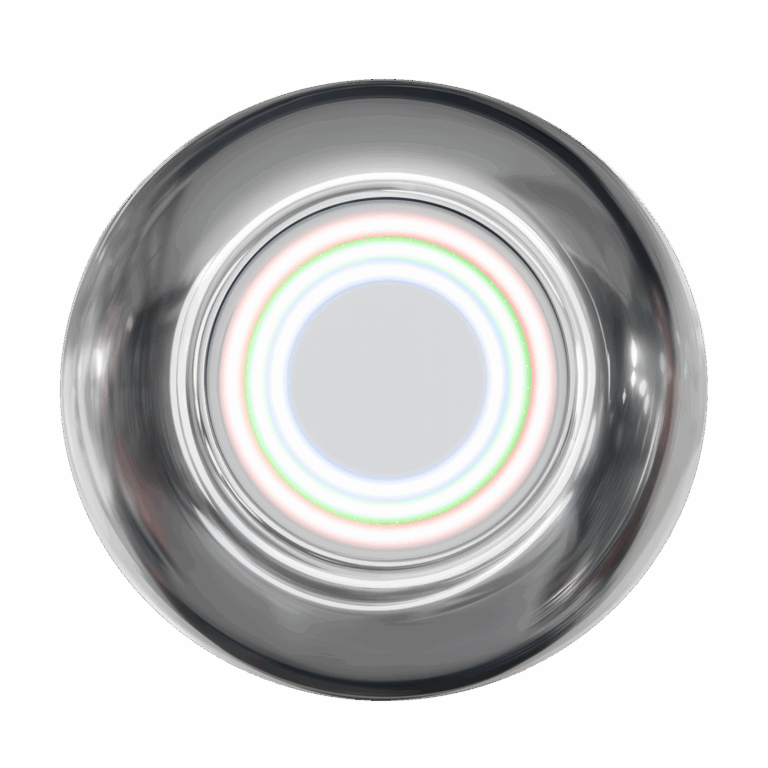

- Light colour: warm white, daylight white or RGB.
- Dimming ability for warm white and daylight white illumination.
- 14 illumination programme modes.
- 2.5m of H07RN-F, cable size 2x1mm².

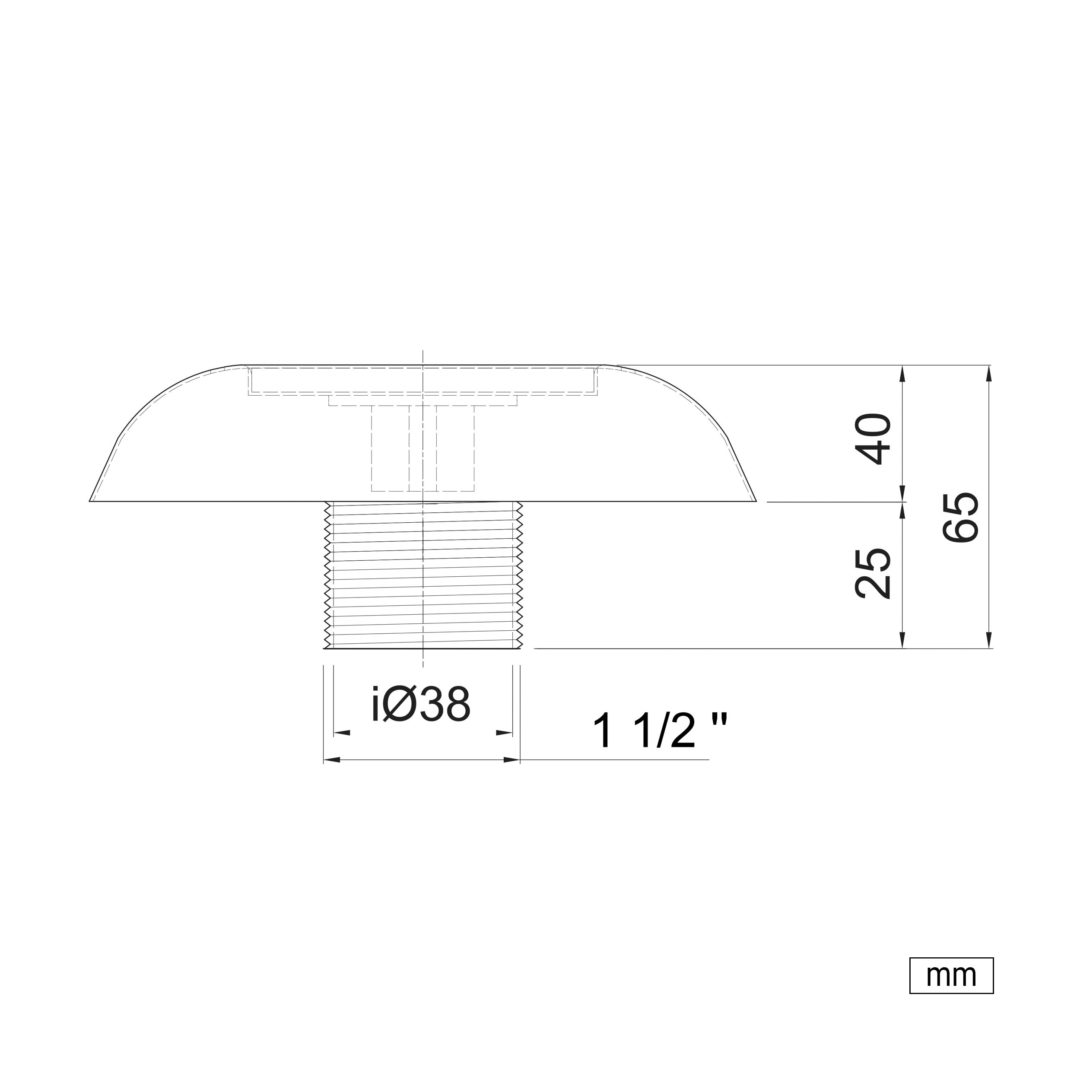

- Faceplate thickness: 40mm.

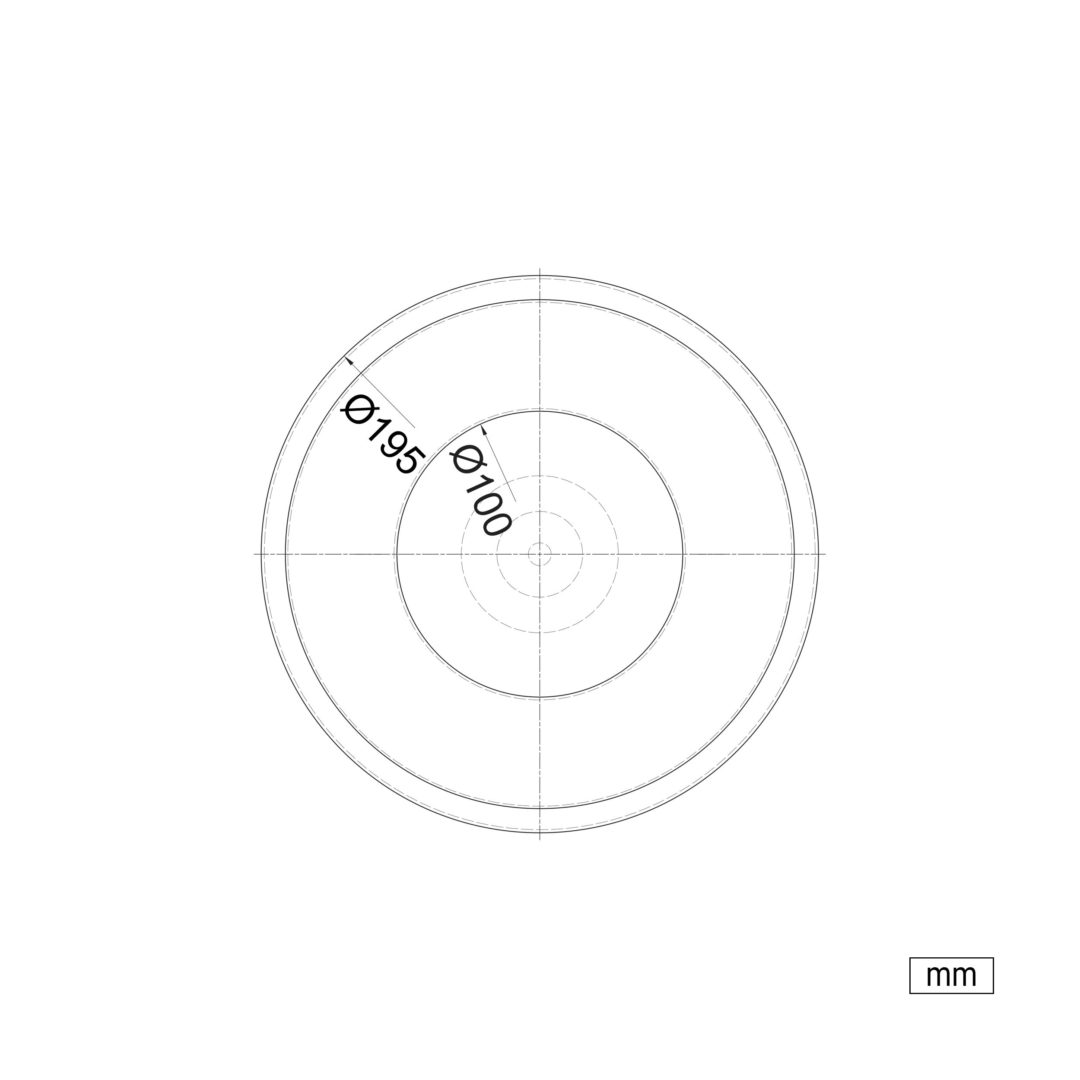

- Dimensions: Ø 195x65mm.
- Underwater installation.
- Installation position: wall.
- Type of pool: concrete.
- Chemical resistance.

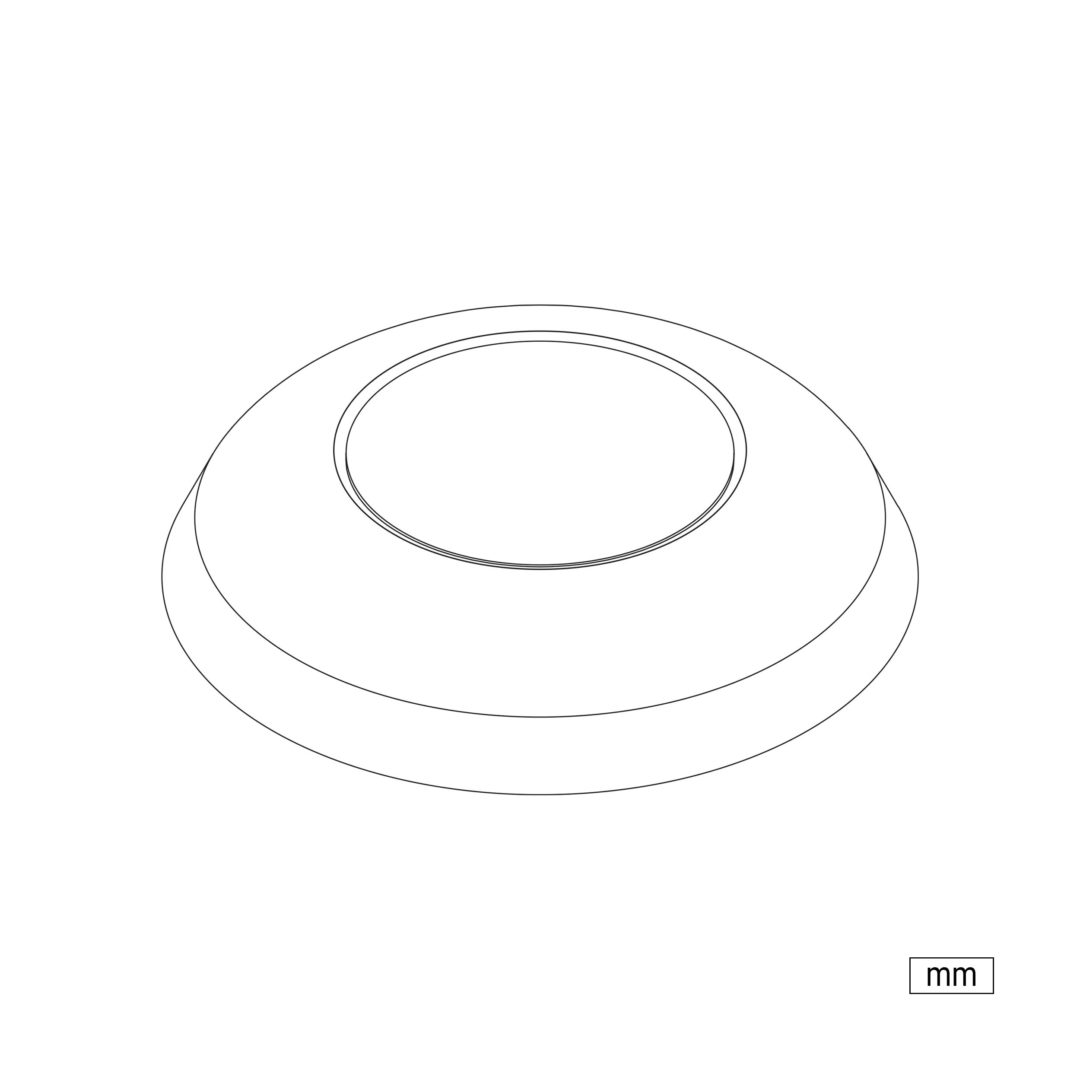

Dimensions & Performances
