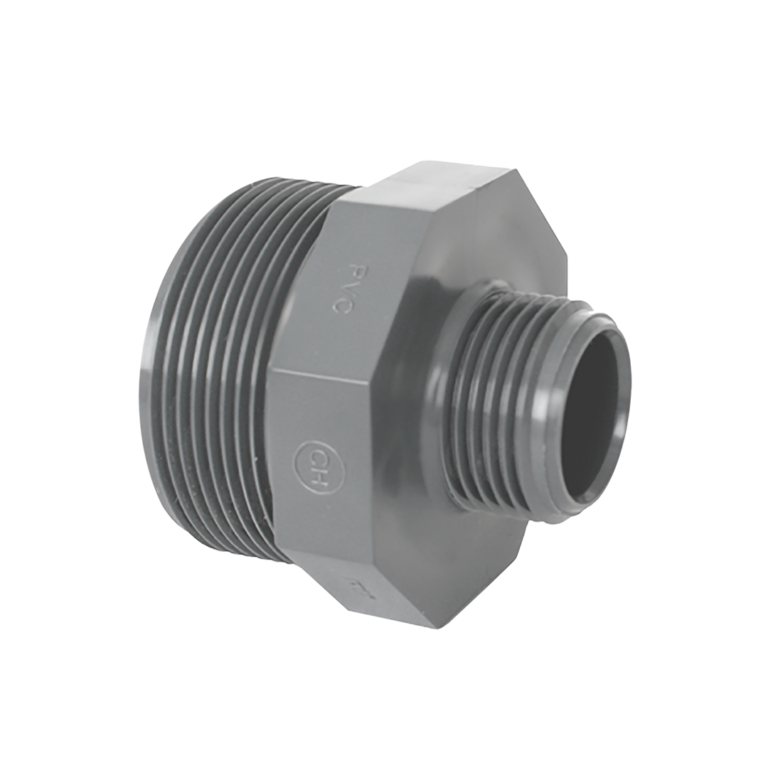

Reducing nipple male thread

MODEL: 7208

MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Εξαρτήματα κολλητά:
Από 16mm έως 140mm = PN16.
Από 160mm έως 315mm = PN10.
Εξαρτήματα με σπείρωμα:
Όλα τα μεγέθη = PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

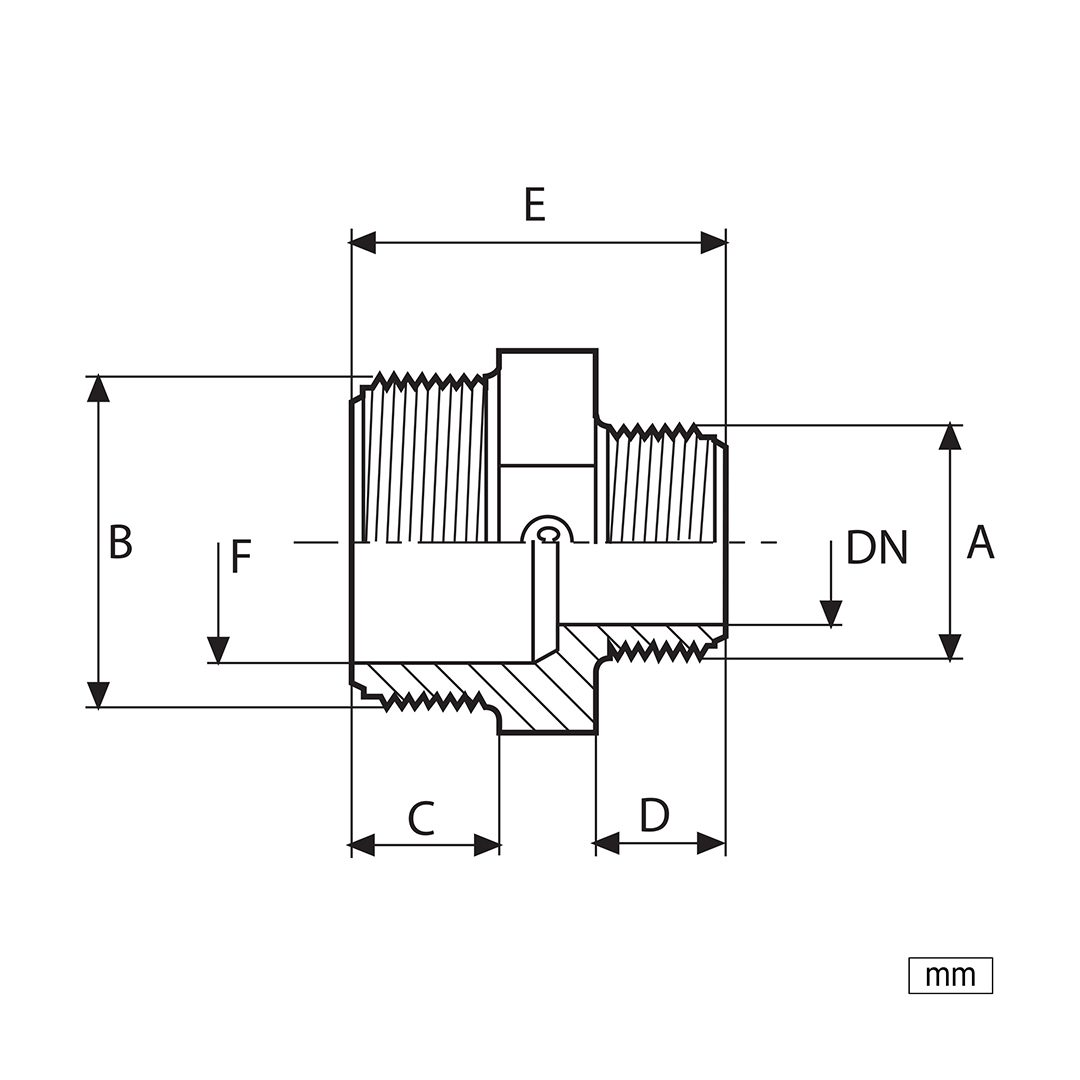

Code	DN	A	B	C	D	E	F	Ø
7208020	10	⅜”	½”	15	11	36	14	½”−⅜”
7208025	10	⅜”	¾”	16	11	39	18	¾”−⅜”
7208026	15	½”	¾”	16	15	43	18	¾”−½”
7208032	10	⅜”	1”	19	11	48	24	1”−⅜”
7208033	15	½”	1”	19	15	48	24	1”−½”
7208034	20	¾”	1”	19	16	48	24	1”−¾”
7208040	15	½”	1¼”	21	15	48	31	1¼”−½”
7208041	20	¾”	1¼”	21	16	50	31	1¼”−¾”
7208042	25	1”	1¼”	21	19	53	31	1¼”−1”
7208050	20	¾”	1½”	21	16	51	37	1½”−¾”
7208051	25	1”	1½”	21	19	54	37	1½”−1”
7208052	32	1¼”	1½”	21	21	56	37	1½”−1¼”
7208063	25	1”	2”	25	18	58	47	2”−1”
7208064	32	1¼”	2”	25	21	61	47	2”−1¼”
7208065	40	1½”	2”	25	21	61	47	2”−1½”
7208075	32	1¼”	2½”	31	21	68	59	2½”−1¼”
7208076	40	1½”	2½”	31	23	70	59	2½”−1½”
7208077	50	2”	2½”	31	26	73	59	2½”−2”
7208090	40	1½”	3”	34	23	73	70	3”−1½”
7208091	50	2”	3”	34	29	79	70	3”−2”
7208092	65	2½”	3”	34	31	81	70	3”−2½”
7208110	50	2”	4”	39	29	86	90	4”−2”
7208111	65	2½”	4”	39	31	88	90	4”−2½”
7208112	80	3”	4”	39	34	91	90	4”−3”

Download

You may also be interested in…

Uni-Lock

Uni-Lock

MODEL: 2055955

Tangit

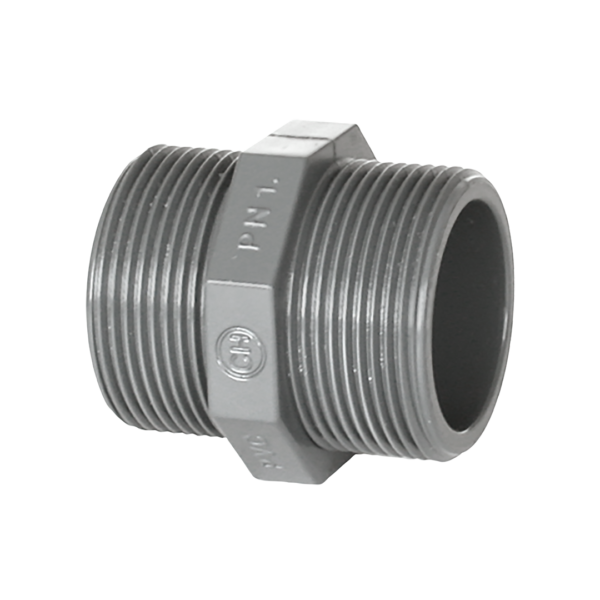

Hexagon nipple
