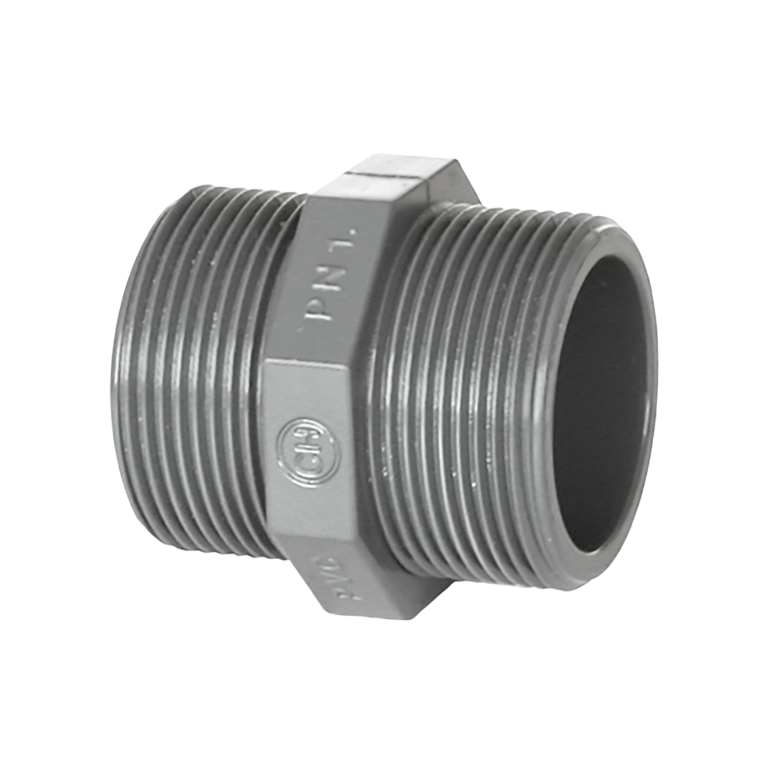

Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:

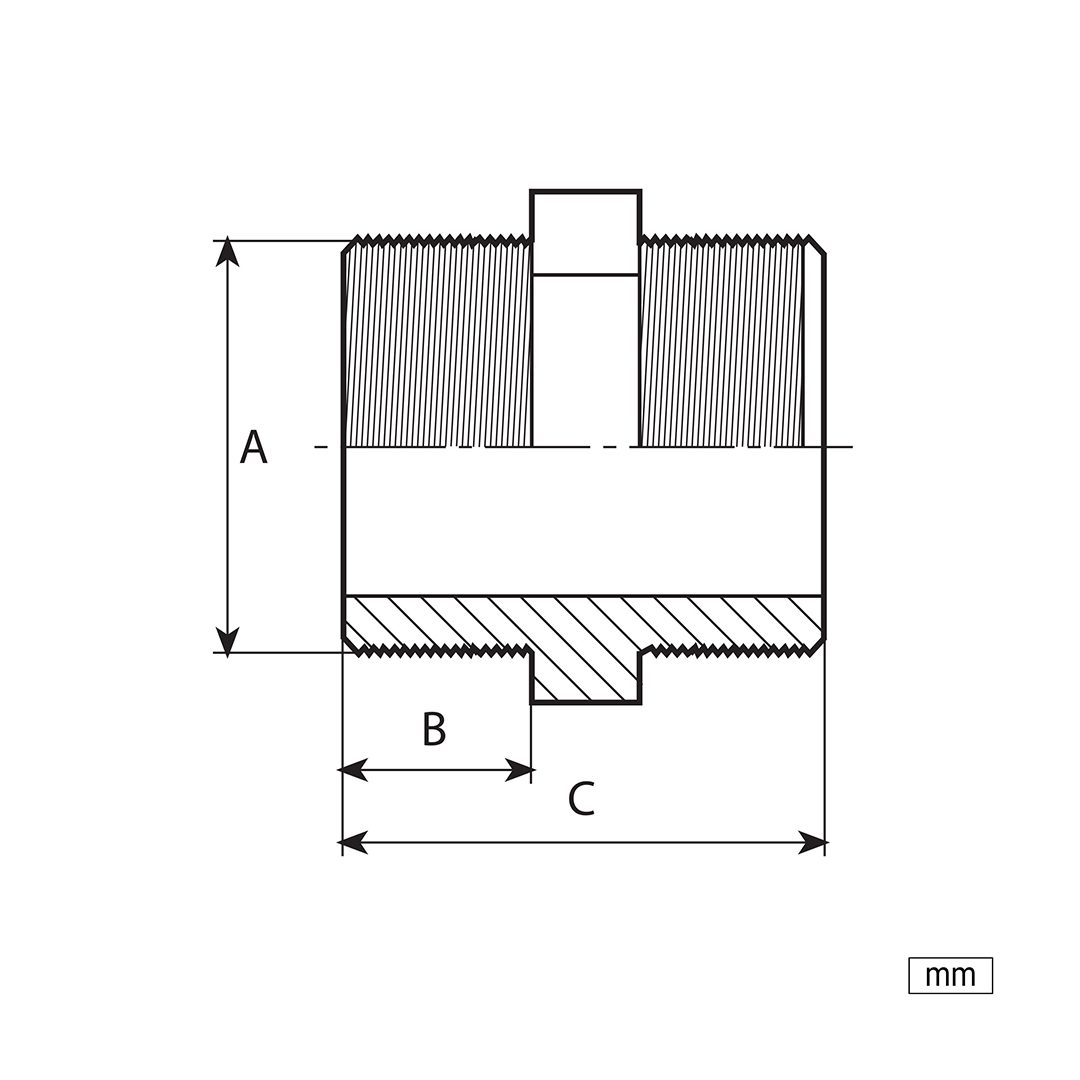

Code | Ø | A | B | C |
---|---|---|---|---|
7204016 | 3/8” | 3/8” | 11 | 32 |
7204020 | 1/2” | 1/2” | 14 | 40 |
7204025 | 3/4” | 3/4” | 16 | 44 |
7204032 | 1” | 1” | 19 | 47 |
7204040 | 1¼” | 1¼” | 21 | 55 |
7204050 | 1½” | 1½” | 21 | 56 |
7204063 | 2” | 2” | 26 | 66 |
7204075 | 2½” | 2½” | 31 | 78 |
7204090 | 3” | 3” | 34 | 84 |
7204110 | 4” | 4” | 39 | 96 |
