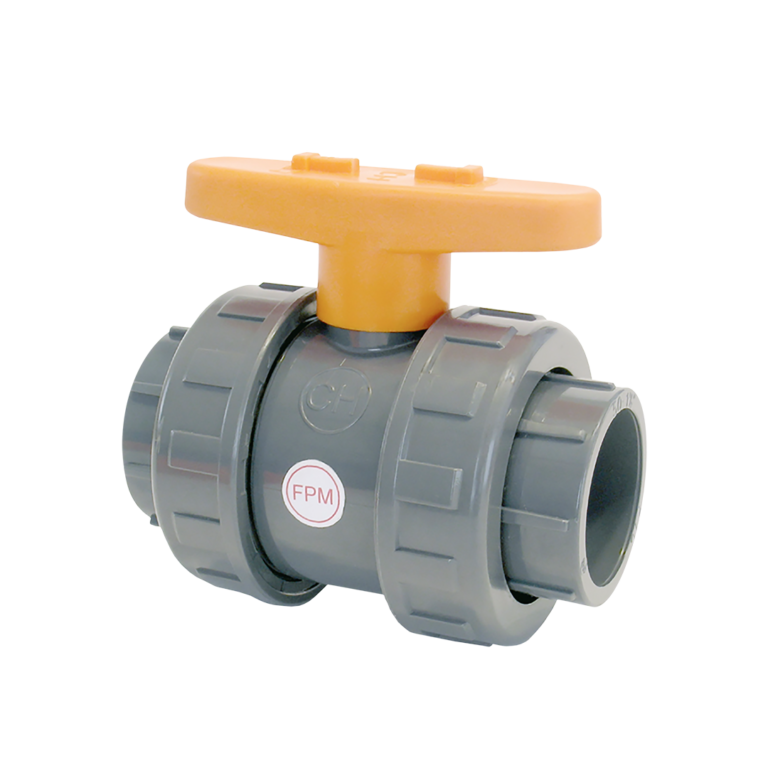

Safeblock Ball valve FPM, type CR, PN16

MODEL: 1052
MANUFACTURER:
Clear

Seats: P.T.F.E. | O−rings: FPM

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

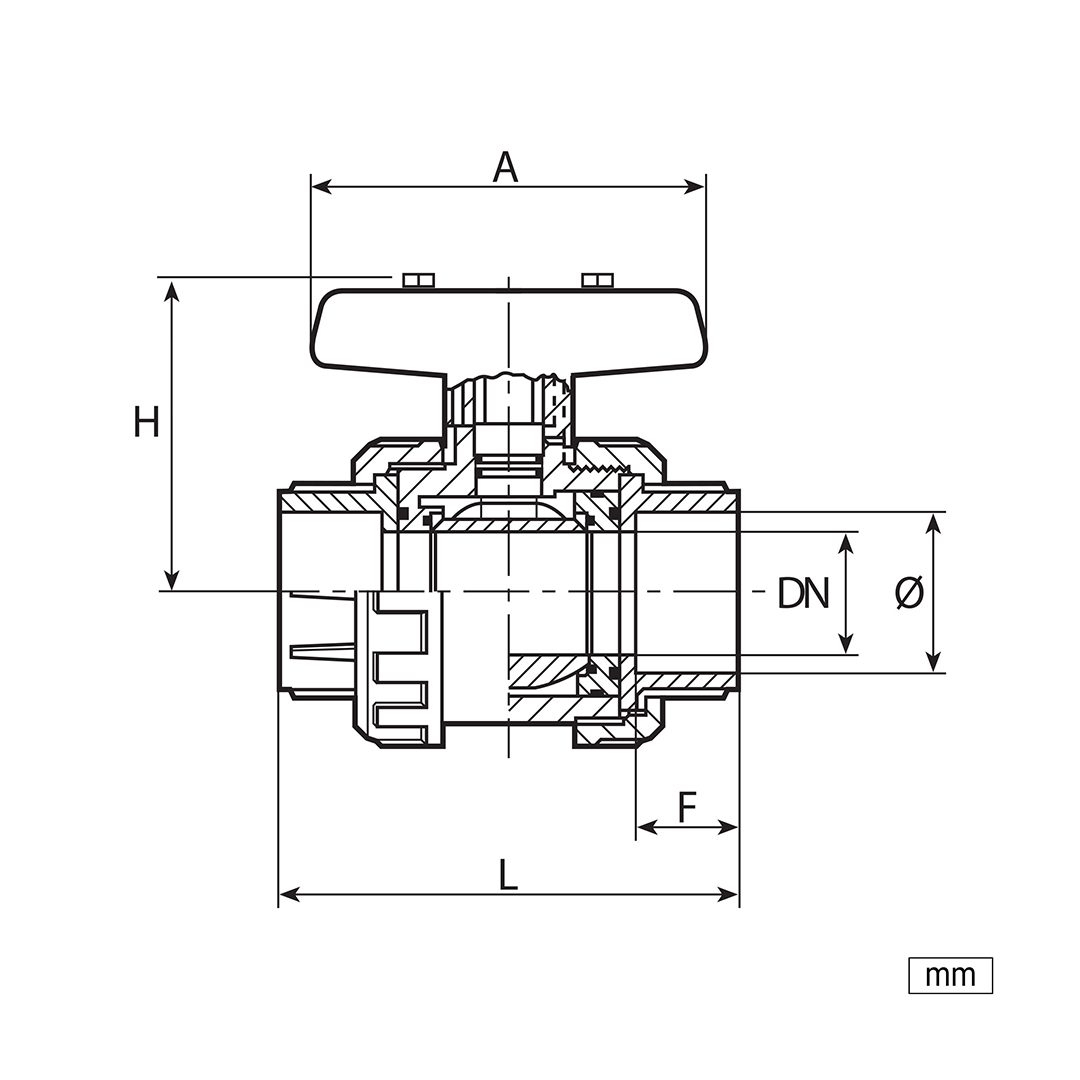

    Dimensions & Performances
    CodeØDNAFHL
    1052016161085145695
    1052020201585165695
    10520252520851958104
    10520323225992268116
    10520404032992672133
    105205050401283189149
    105206363501283897167
    1052075756518444129225
    1052091908018451140246
    105211011010027561174309
    105212512510027561174309
