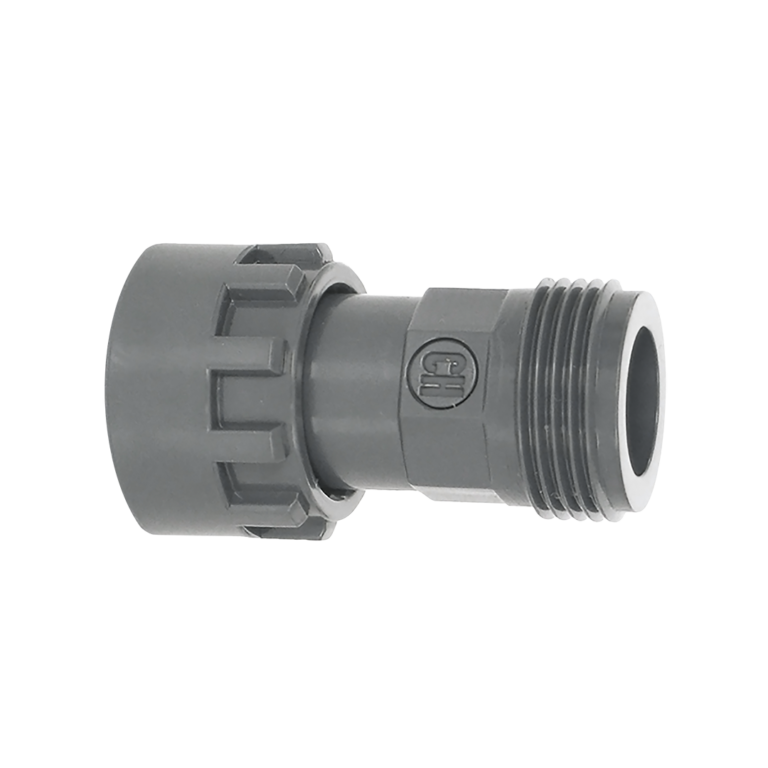

Socket 1” Female/Male

Name: Socket 1” Female/Male
SKU: 7210003
Price: 1.00 EUR
Availability: InStock

MODEL: 7210003

MANUFACTURER:

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

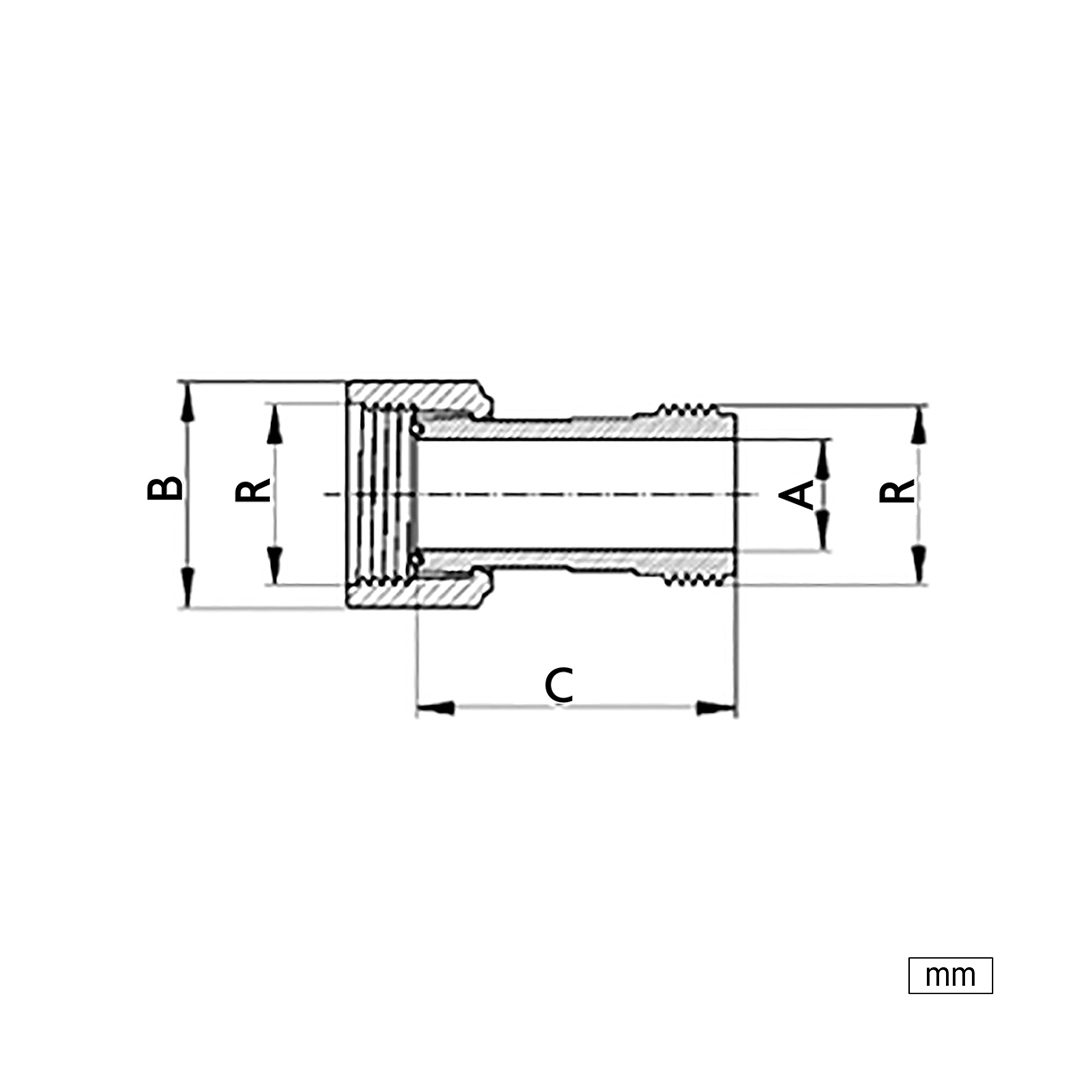

Code	A	B	C	R	Ø
7210003	20	41,5	69	1”	1”− G
