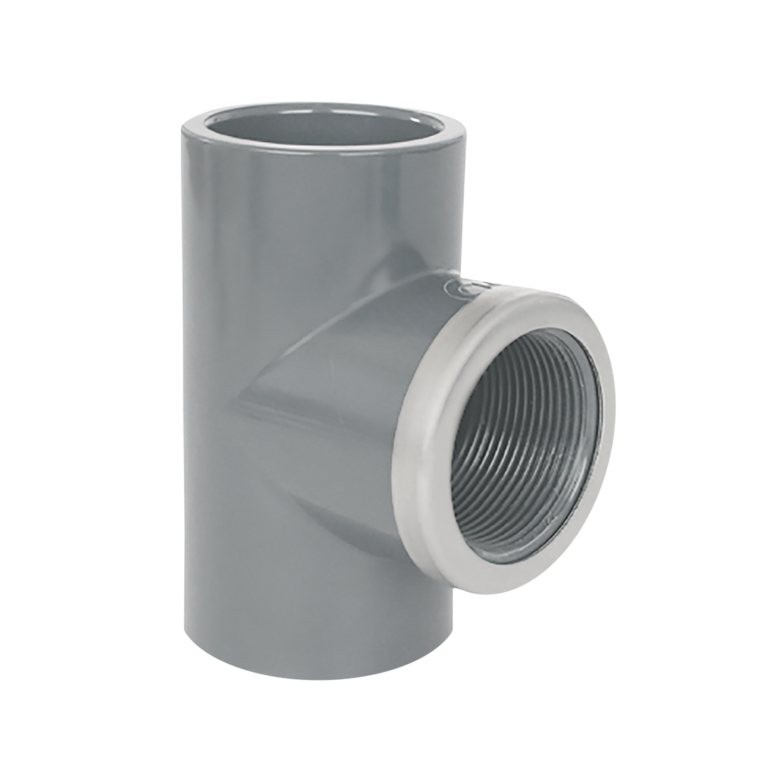

Tee reinforced 90° mixed (S.S. ring) PN16
MODEL:
73036
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

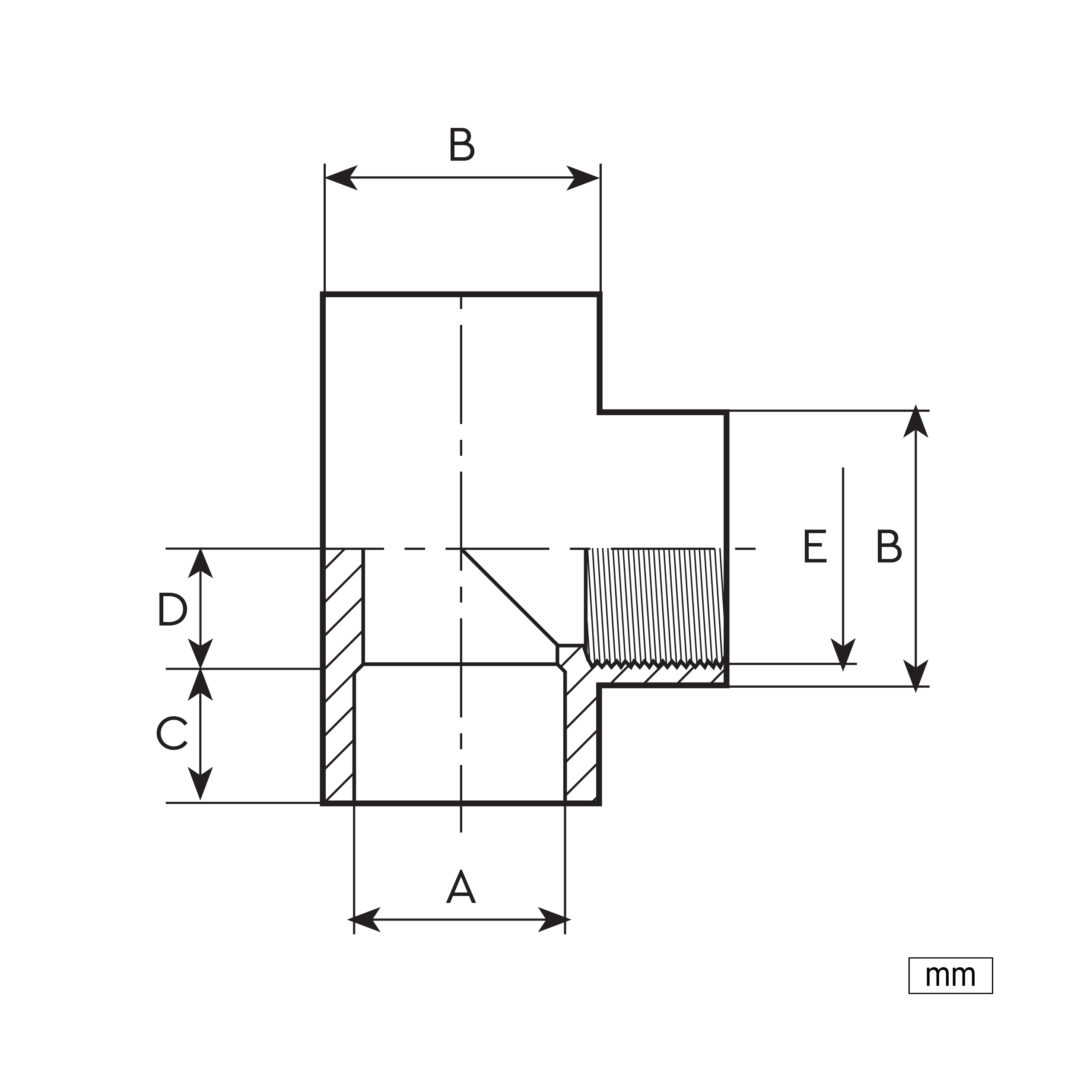

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | Ε | Ø |
|---|---|---|---|---|---|---|---|
| 7303616 | 10 | 16 | 22 | 14 | 11 | ⅜” | 16−⅜” |
| 7303620 | 15 | 20 | 25 | 16 | 11 | ½” | 20−½” |
| 7303625 | 20 | 25 | 32 | 19 | 14 | ¾” | 25−¾” |
| 7303632 | 25 | 32 | 40 | 22 | 17 | 1” | 32−1” |
| 7303640 | 32 | 40 | 50 | 26 | 21 | 1¼” | 40−1¼” |
| 7303650 | 40 | 50 | 63 | 31 | 26 | 1½” | 50−1½” |
| 7303663 | 50 | 63 | 75 | 38 | 32 | 2” | 63−2” |
