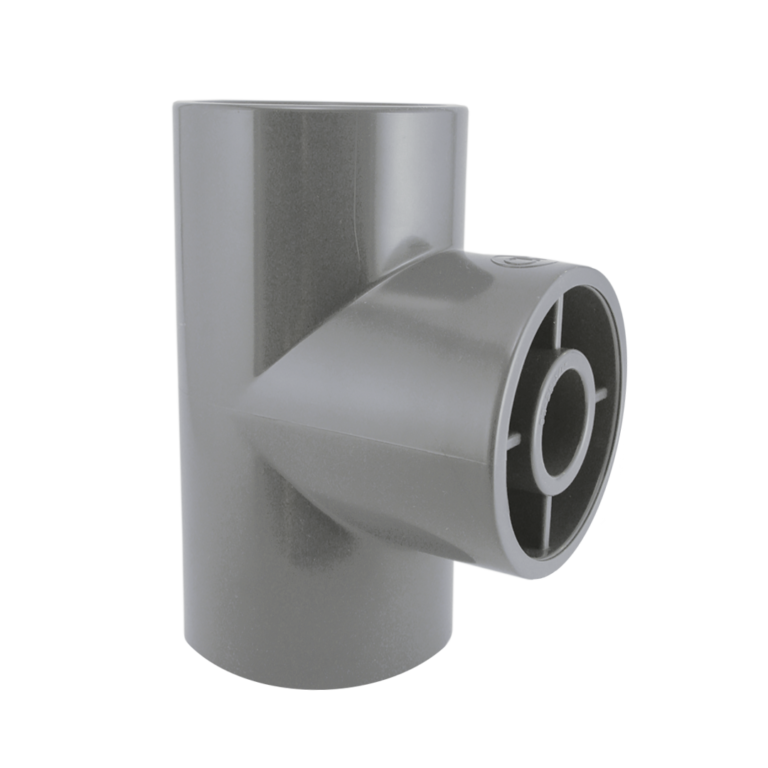

Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:

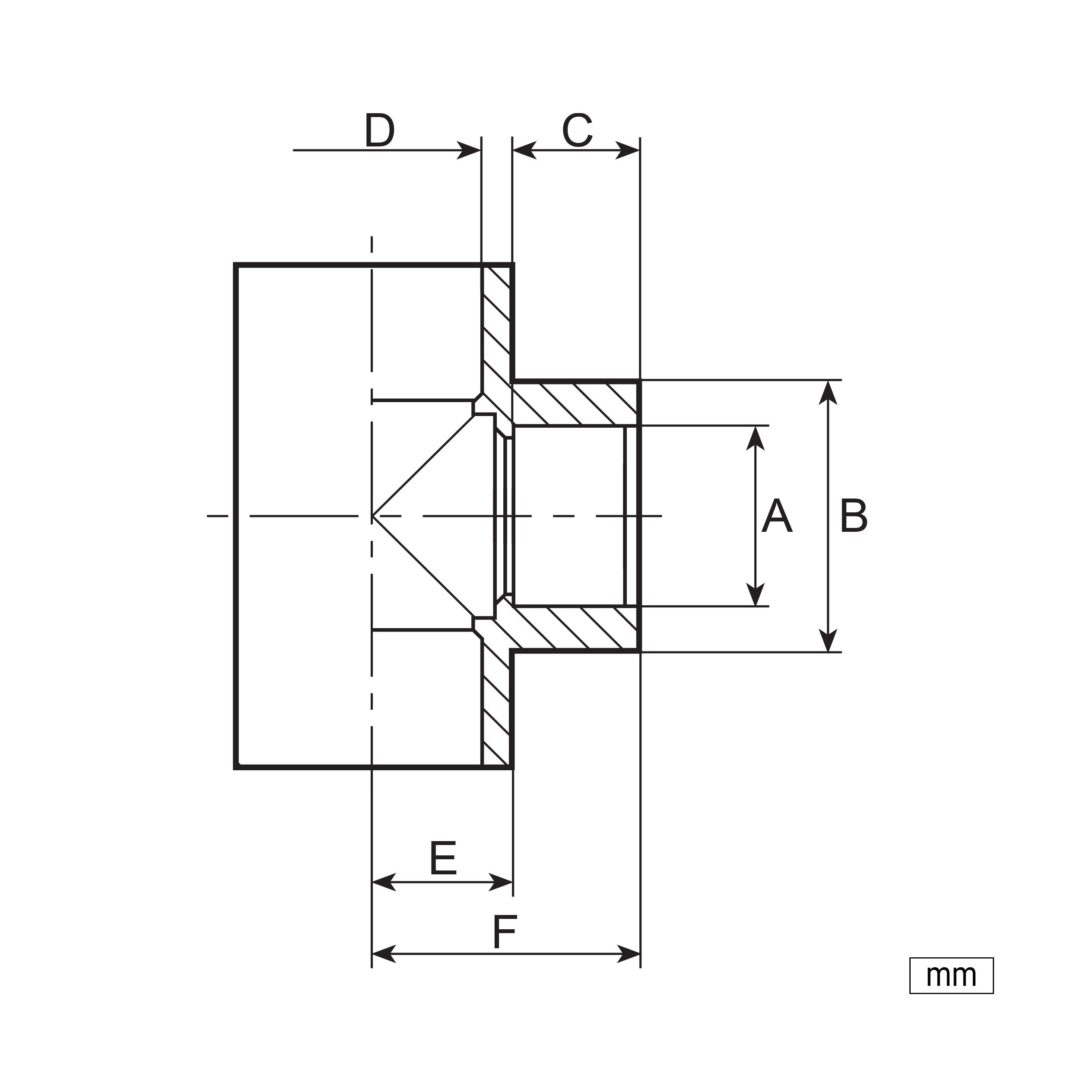

Code | DN | A | B | C | D | E | F | Ø |
---|---|---|---|---|---|---|---|---|
7104020 | 15−10 | 16 | 25 | 14 | 20 | 13 | 27 | 20 − 16 |
7104025 | 20−10 | 16 | 32 | 14 | 25 | 19 | 33 | 25 − 16 |
7104026 | 20−15 | 20 | 32 | 16 | 25 | 19 | 35 | 25 − 20 |
7104032 | 25−15 | 20 | 40 | 16 | 32 | 23 | 39 | 32 − 20 |
7104033 | 25−20 | 25 | 40 | 19 | 32 | 20 | 39 | 32 − 25 |
7104040 | 32−15 | 20 | 50 | 16 | 40 | 33 | 49 | 40 − 20 |
7104041 | 32−20 | 25 | 50 | 19 | 40 | 30 | 49 | 40 − 25 |
7104042 | 32−25 | 32 | 50 | 22 | 40 | 27 | 49 | 40 − 32 |
7104050 | 40−15 | 20 | 63 | 16 | 50 | 43 | 59 | 50 − 20 |
7104051 | 40−20 | 25 | 63 | 19 | 50 | 40 | 59 | 50 − 25 |
7104052 | 40−25 | 32 | 63 | 22 | 50 | 37 | 59 | 50 − 32 |
7104053 | 40−32 | 40 | 63 | 26 | 50 | 33 | 59 | 50 − 40 |
7104061 | 50−15 | 20 | 75 | 16 | 63 | 56 | 72 | 63 − 20 |
7104062 | 50−20 | 25 | 75 | 19 | 63 | 53 | 72 | 63 − 25 |
7104063 | 50−25 | 32 | 75 | 22 | 63 | 50 | 72 | 63 − 32 |
7104064 | 50−32 | 40 | 75 | 26 | 63 | 46 | 72 | 63 − 40 |
7104065 | 50−40 | 50 | 75 | 31 | 63 | 51 | 72 | 63 − 50 |
7104072 | 65−25 | 32 | 90 | 22 | 75 | 62 | 84 | 75 − 32 |
7104073 | 65−32 | 40 | 90 | 26 | 75 | 58 | 84 | 75 − 40 |
7104074 | 65−40 | 50 | 90 | 31 | 75 | 53 | 84 | 75 − 50 |
7104075 | 65−50 | 63 | 90 | 38 | 75 | 46 | 84 | 75 − 63 |
7104087 | 80−32 | 40 | 110 | 26 | 90 | 73 | 99 | 90 − 40 |
7104088 | 80−40 | 50 | 110 | 31 | 90 | 68 | 99 | 90 − 50 |
7104089 | 80−50 | 63 | 110 | 38 | 90 | 61 | 99 | 90 − 63 |
7104090 | 80−65 | 75 | 110 | 44 | 90 | 55 | 99 | 90 − 75 |
7104107 | 100−40 | 50 | 131 | 31 | 110 | 88 | 119 | 110 − 50 |
7104108 | 100−50 | 63 | 131 | 38 | 110 | 81 | 119 | 110 − 63 |
7104109 | 100−65 | 75 | 131 | 44 | 110 | 75 | 119 | 110 − 75 |
7104110 | 100−80 | 90 | 131 | 51 | 110 | 68 | 119 | 110 − 90 |
7104122 | 110−50 | 63 | 148 | 38 | 125 | 94 | 132 | 125 − 63 |
7104123 | 110−65 | 75 | 148 | 44 | 125 | 88 | 132 | 125 − 75 |
7104124 | 110−80 | 90 | 148 | 51 | 125 | 81 | 132 | 125 − 90 |
7104125 | 110−100 | 110 | 148 | 61 | 125 | 71 | 132 | 125 −110 |
7104137 | 125−65 | 75 | 163 | 44 | 140 | 102 | 146 | 140 − 75 |
7104138 | 125−80 | 90 | 163 | 51 | 140 | 95 | 146 | 140 − 90 |
7104139 | 125−100 | 110 | 163 | 61 | 140 | 85 | 146 | 140 − 110 |
7104140 | 125−110 | 125 | 163 | 69 | 140 | 77 | 146 | 140 − 125 |
7104157 | 150−80 | 90 | 180 | 51 | 160 | 115 | 166 | 160 − 90 |
7104158 | 150−100 | 110 | 180 | 61 | 160 | 105 | 166 | 160 − 110 |
7104159 | 150−110 | 125 | 180 | 69 | 160 | 97 | 166 | 160 − 125 |
7104160 | 150−125 | 140 | 180 | 76 | 160 | 90 | 166 | 160 − 140 |
7104200 | 175−150 | 160 | 223 | 86 | 200 | 120 | 206 | 200 − 160 |
7104201 | 175−160 | 180 | 223 | 96 | 200 | 110 | 206 | 200 − 180 |
7104225 | 200−175 | 200 | 252 | 106 | 225 | 157 | 263 | 225 − 200 |
7104250 | 225−175 | 200 | 284 | 106 | 250 | 151 | 257 | 250 − 200 |
7104251 | 225−200 | 225 | 284 | 119 | 250 | 158 | 277 | 250 − 225 |
7104315 | 300−200 | 225 | 369 | 119 | 315 | 204 | 323 | 315 − 225 |
7104316 | 300−225 | 250 | 369 | 131 | 315 | 192 | 323 | 315 − 250 |
7104355 | − | − | − | − | − | − | − | 355 − 315 |
7104400 | − | − | − | − | − | − | − | 400 − 110 |
7104401 | − | − | − | − | − | − | − | 400 − 315 |
7104402 | − | − | − | − | − | − | − | 400 − 355 |
7104500 | − | − | − | − | − | − | − | 500 − 400 |
