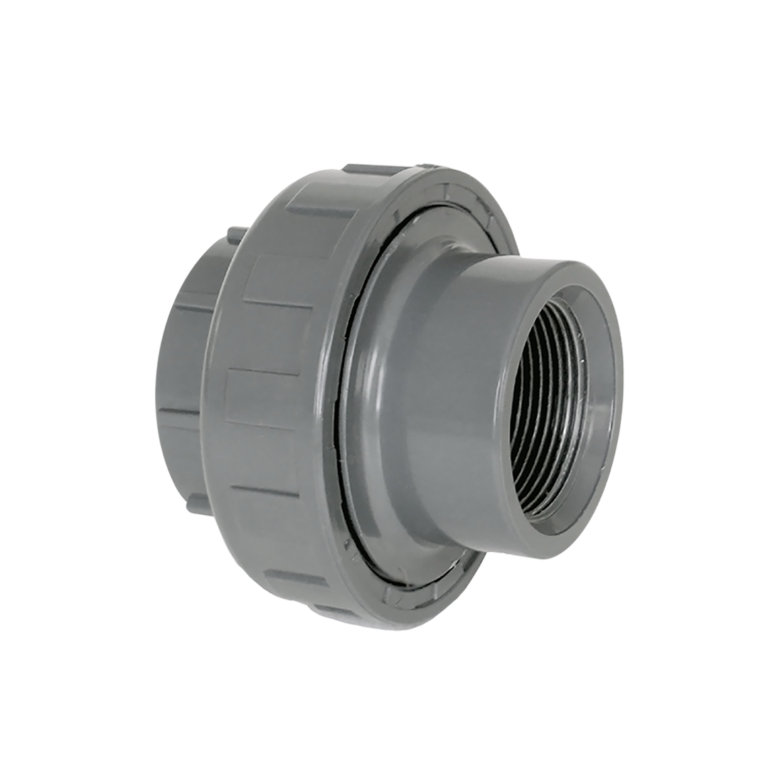

Union female threaded
MODEL:
7402
MANUFACTURER:
Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
- Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10. - Threaded fittings:
All sizes PN10.
Assembly:
- The use of PTFE film is recommended for threaded fittings.
- The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

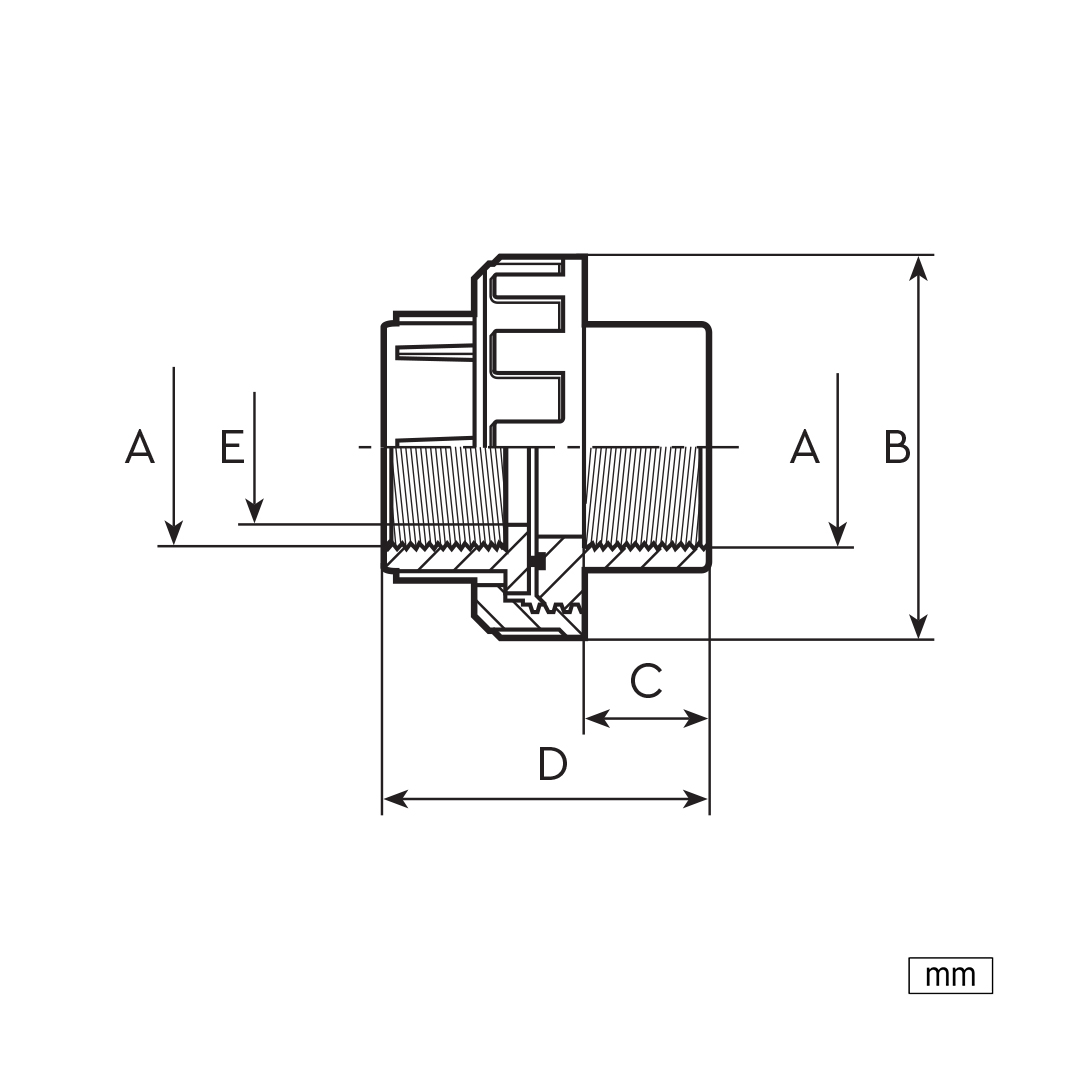

Dimensions & Performances
ZOOM IN
| Code | DN | A | B | C | D | E | Ø |
|---|---|---|---|---|---|---|---|
| 7402016 | 10 | ⅜” | 49 | 17 | 47 | 13 | ⅜” |
| 7402020 | 15 | ½” | 49 | 17 | 47 | 15 | ½” |
| 7402025 | 20 | ¾” | 57 | 19 | 51 | 20 | ¾” |
| 7402032 | 25 | 1” | 67 | 22 | 60 | 25 | 1” |
| 7402040 | 32 | 1¼” | 81 | 32 | 65 | 27 | 1¼” |
| 7402050 | 40 | 1½” | 99 | 32 | 82 | 40 | 1½” |
| 7402063 | 50 | 2” | 112 | 35 | 90 | 50 | 2” |
| 7402075 | 65 | 2½” | 154 | 43 | 122 | 71 | 2½” |
| 7402090 | 80 | 3” | 154 | 47 | 130 | 80 | 3” |
| 7402110 | 100 | 4” | 178 | 61 | 142 | 100 | 4” |
| 7402109 | 80 | 4″−3″ | 178 | 61 | 125 | 80 | 4″−3″ |
