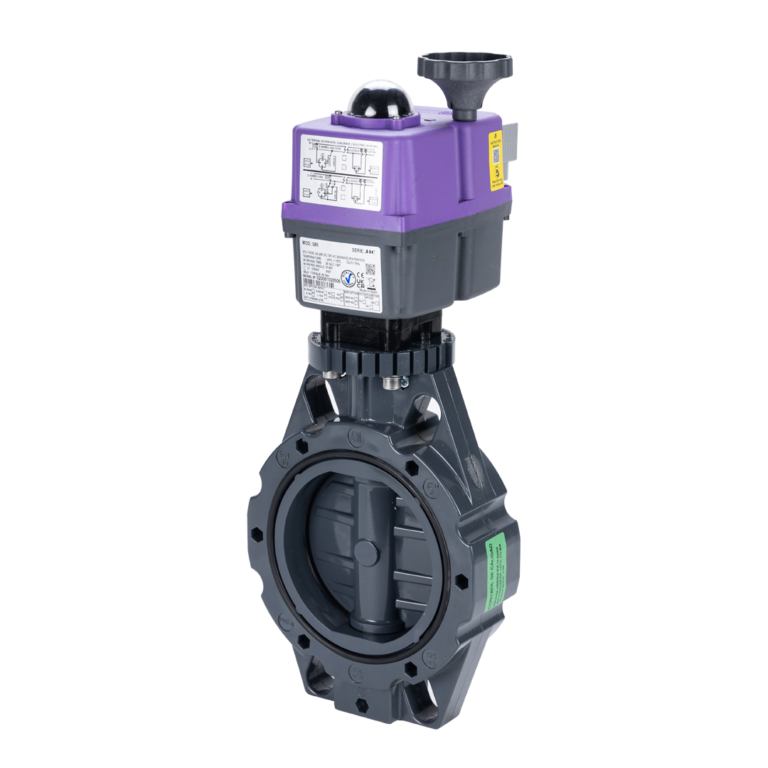

Wafer butterfly valve with electric actuator

MODEL: 2103
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN 16 bar.
    From 160mm to 315mm = PN 10 bar.
  • Threaded fittings:
    All sizes PN 10 bar.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Dimensions & Performances
    CodeØDNCLOSINGSEAL
    210306363-2”50EPDMEPDM
    210307575-2½”65EPDMEPDM
    210309090-3”80EPDMEPDM
    2103110110-4”100EPDMEPDM
    2103127125/140-5”125EPDMEPDM
    2103160160-6”150EPDMEPDM
    2103200200-8”200EPDMEPDM
    2103250250-10”250EPDMEPDM
    2103315315-12”300EPDMEPDM
