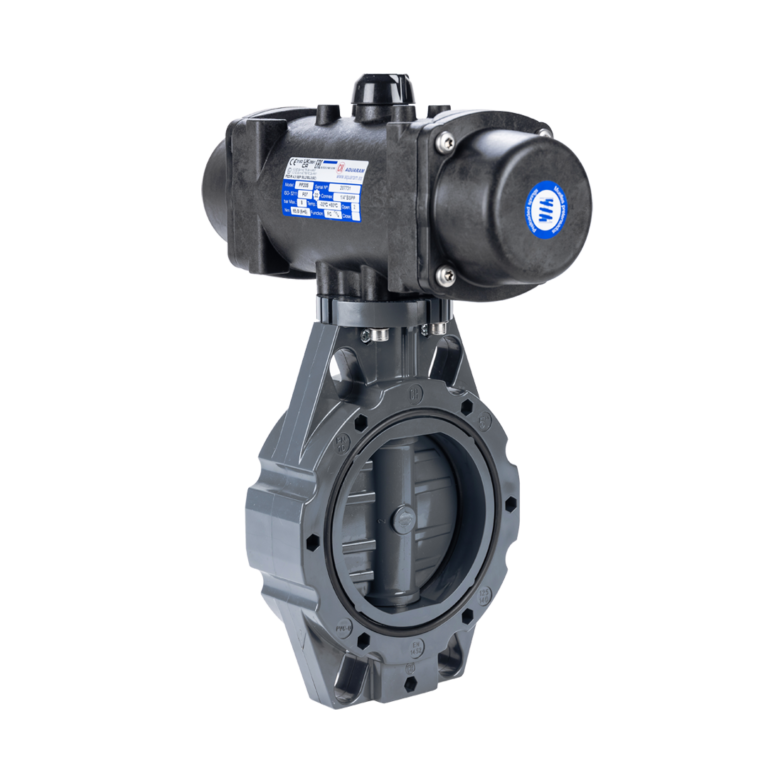

Butterfly valve with double acting pneumatic actuator

MODEL: 2102
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN16.
    From 160mm to 315mm = PN10.
  • Threaded fittings:
    All sizes PN10.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Dimensions & Performances
    CodeØDNSeatsO−rings
    210206363-2”50EPDMEPDM
    210207575-2½”65EPDMEPDM
    210209090-3”80EPDMEPDM
    2102110110-4”100EPDMEPDM
    2102126125/140-5”125EPDMEPDM
    2102160160-6”150EPDMEPDM
    2102200200-8”200EPDMEPDM
    2102250250-10”250EPDMEPDM
    2102315315-12”300EPDMEPDM
