Ø195mm-Wall-mounting LED pool light
MODEL:
WPLD-3R
MANUFACTURER:

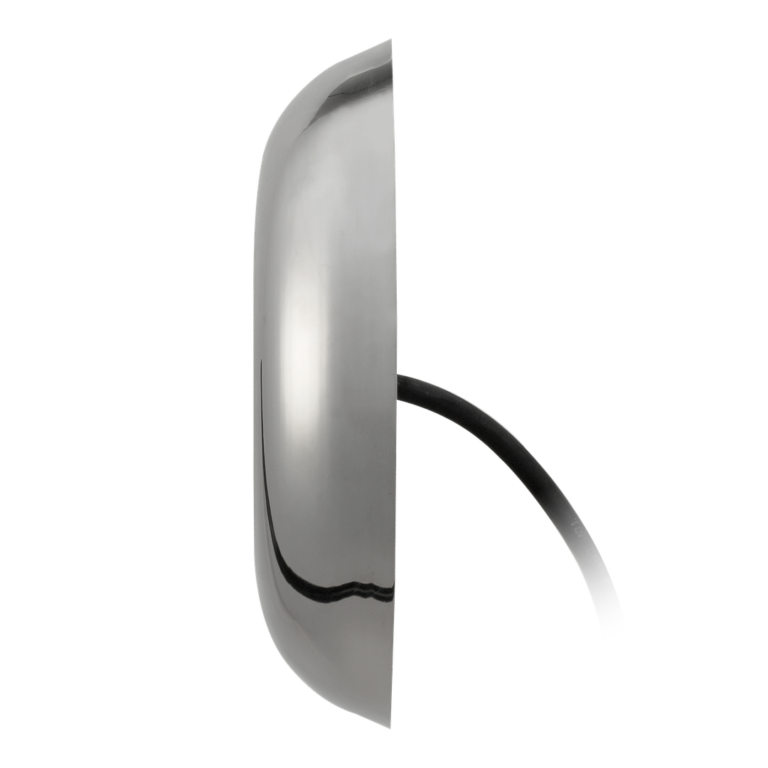

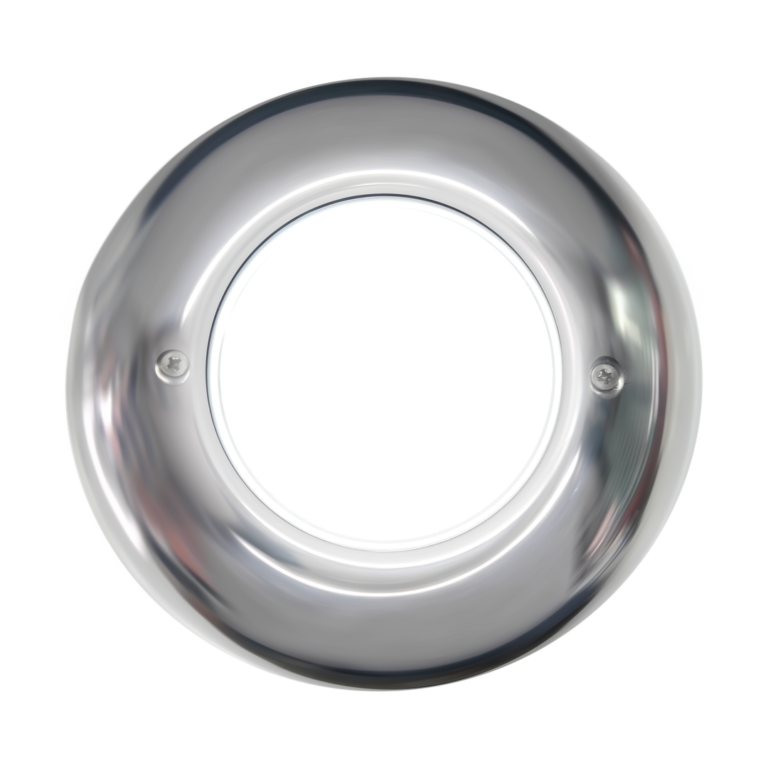

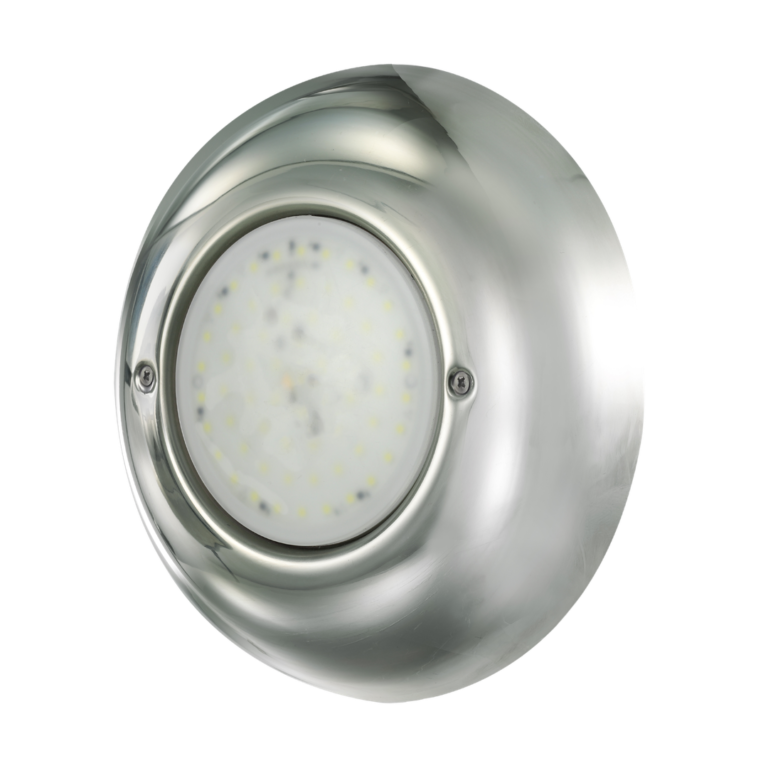

Stainless steel (AISI-316) wall mounting LED pool light designed only for concrete pools.
Equipped with a resin-filled LED bulb of 30W, 25W or 45W available in daylight white, warm white, blue or RGB colour, available in 14 illumination programme modes. Its face has an overall diameter of 195mm and a faceplate thickness of 40mm.
Exceptional chemical resistance. Ideal for underwater lighting.
Dimming ability for daylight white & warm white colour.
Extra Equipment is required to switch the lighting program to RGB lights:
– RCP-1500: Control panel with remote control.
Specifications
- Material: stainless steel AISI-316.
- IP rating: IP68 up to 1m depth.
- Installation: wall mounting.
- Light colour: warm white, daylight white, blue or RGB.
- Dimming ability for warm white and daylight white illumination.
- 14 illumination programme modes.
- 2.5m of H07RN-F, cable size 2x1mm².

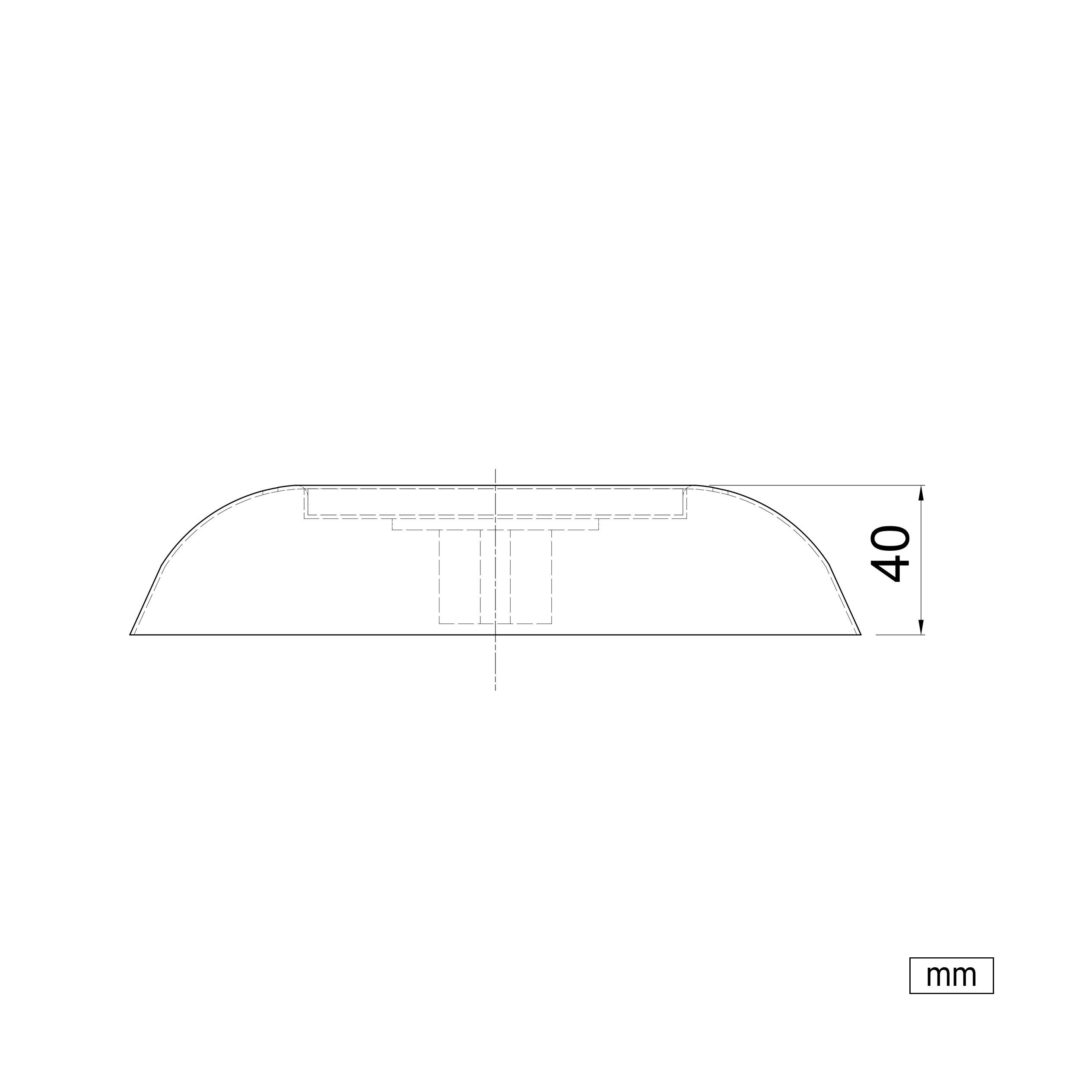

- Faceplate thickness: 40mm.

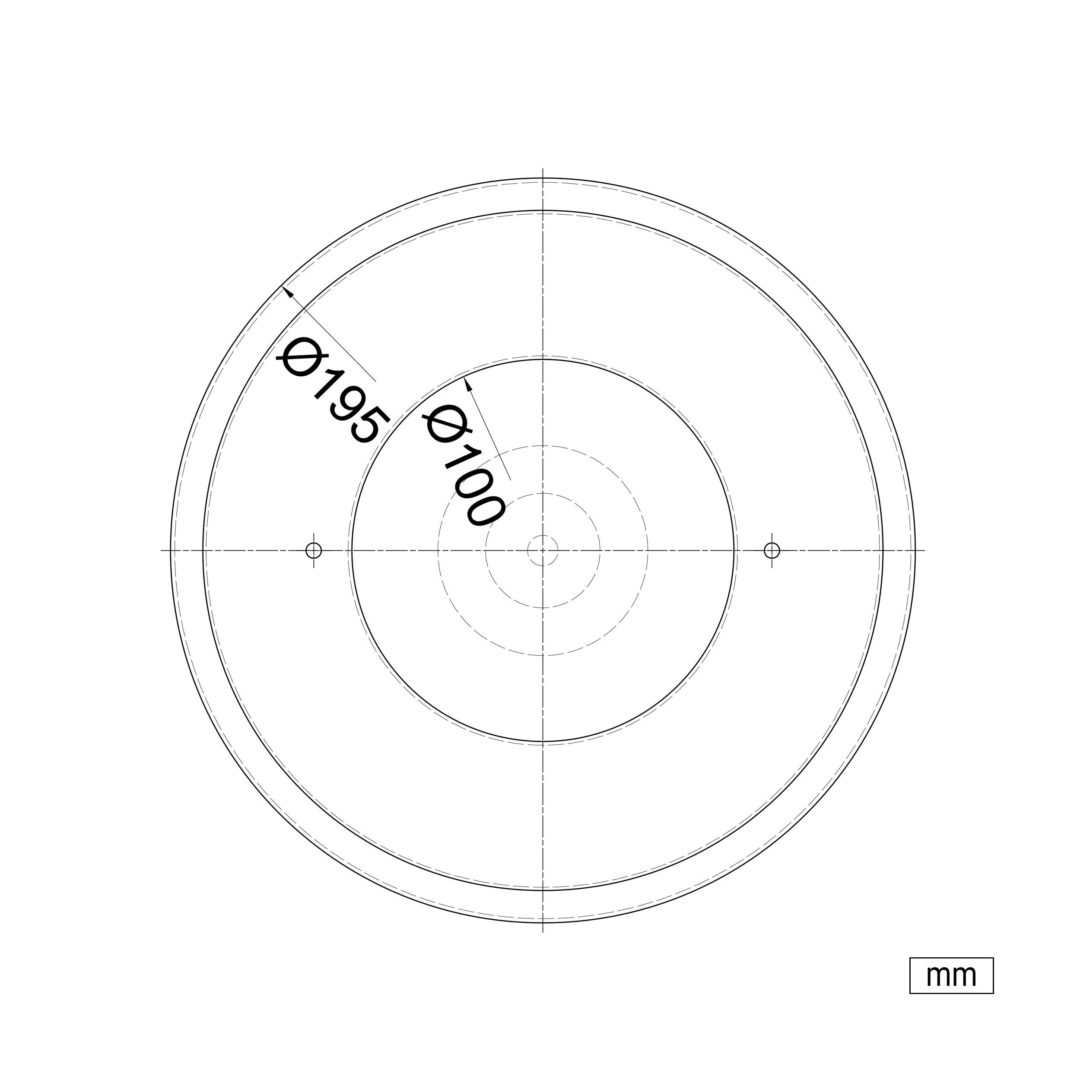

- Dimensions: Ø 195x40mm.
- Underwater installation.
- Installation position: wall.
- Type of pool: concrete.
- Chemical resistance.

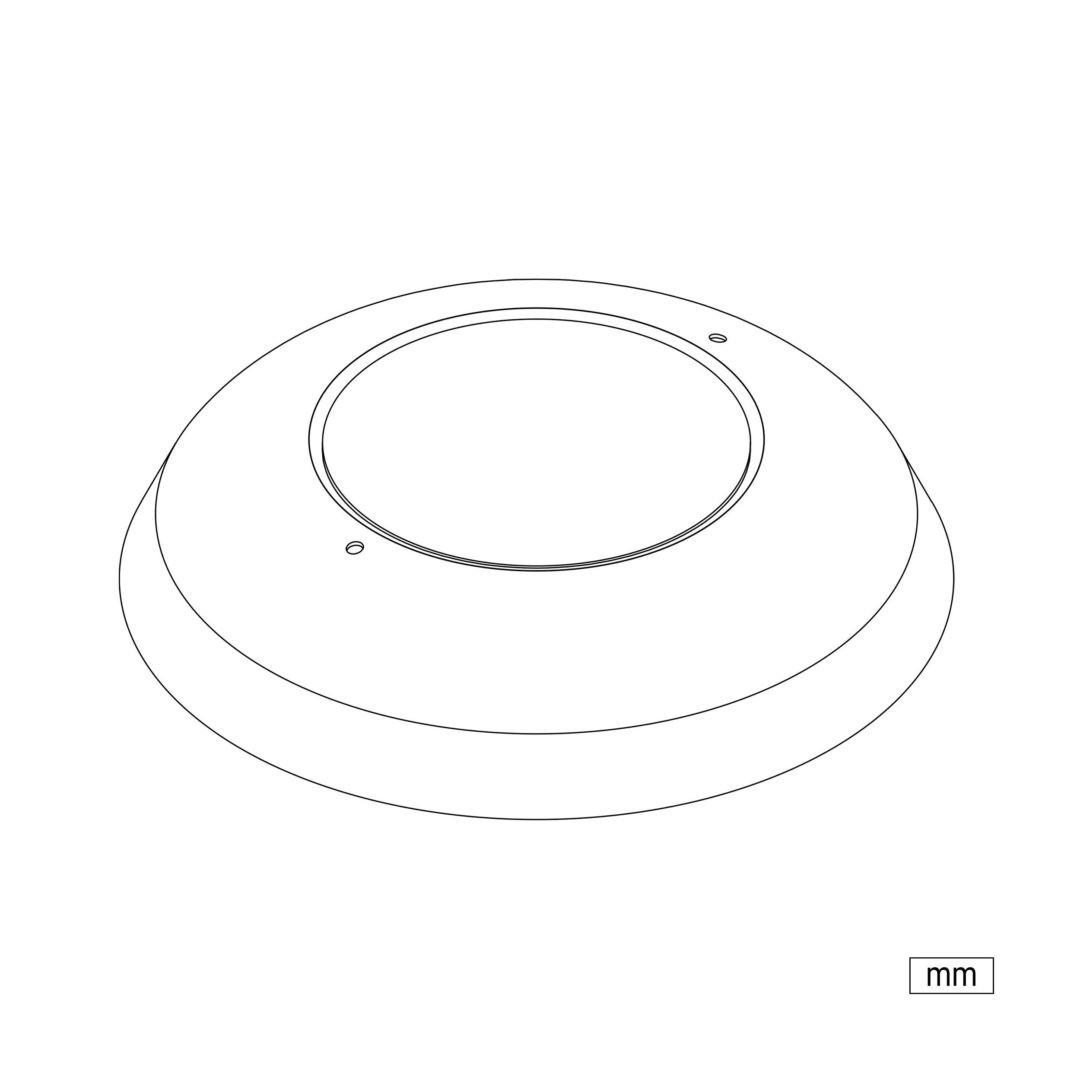

Dimensions & Performances
