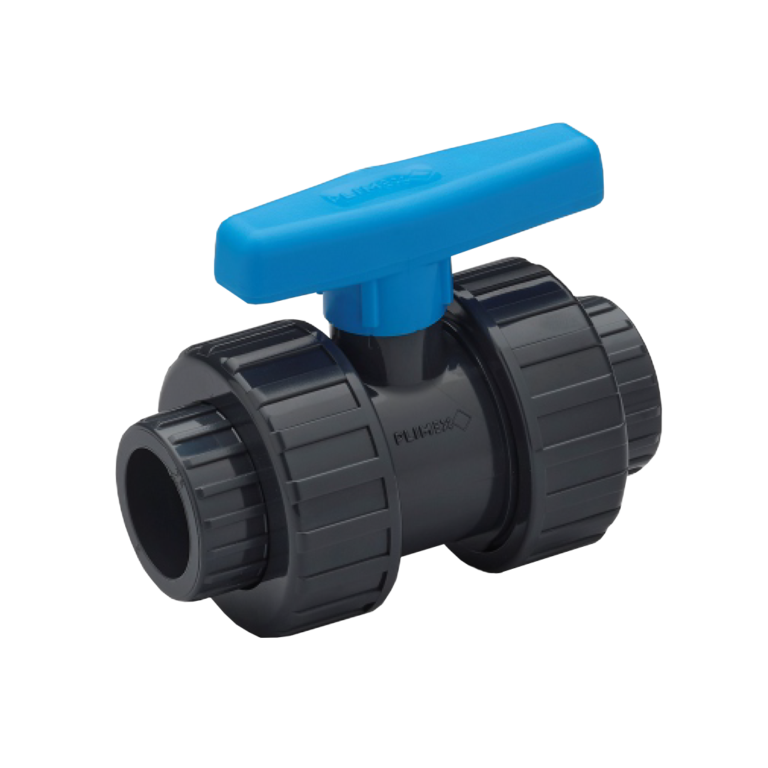

2-way ball valve, PN16
MODEL:
01.61.1077.000
MANUFACTURER:
Seats: PE | O−rings: EPDM
The valve is made of unplasticized polyvinyl chloride (PVC-U), a material known for its resistance to extreme operating conditions and corrosion resistance.

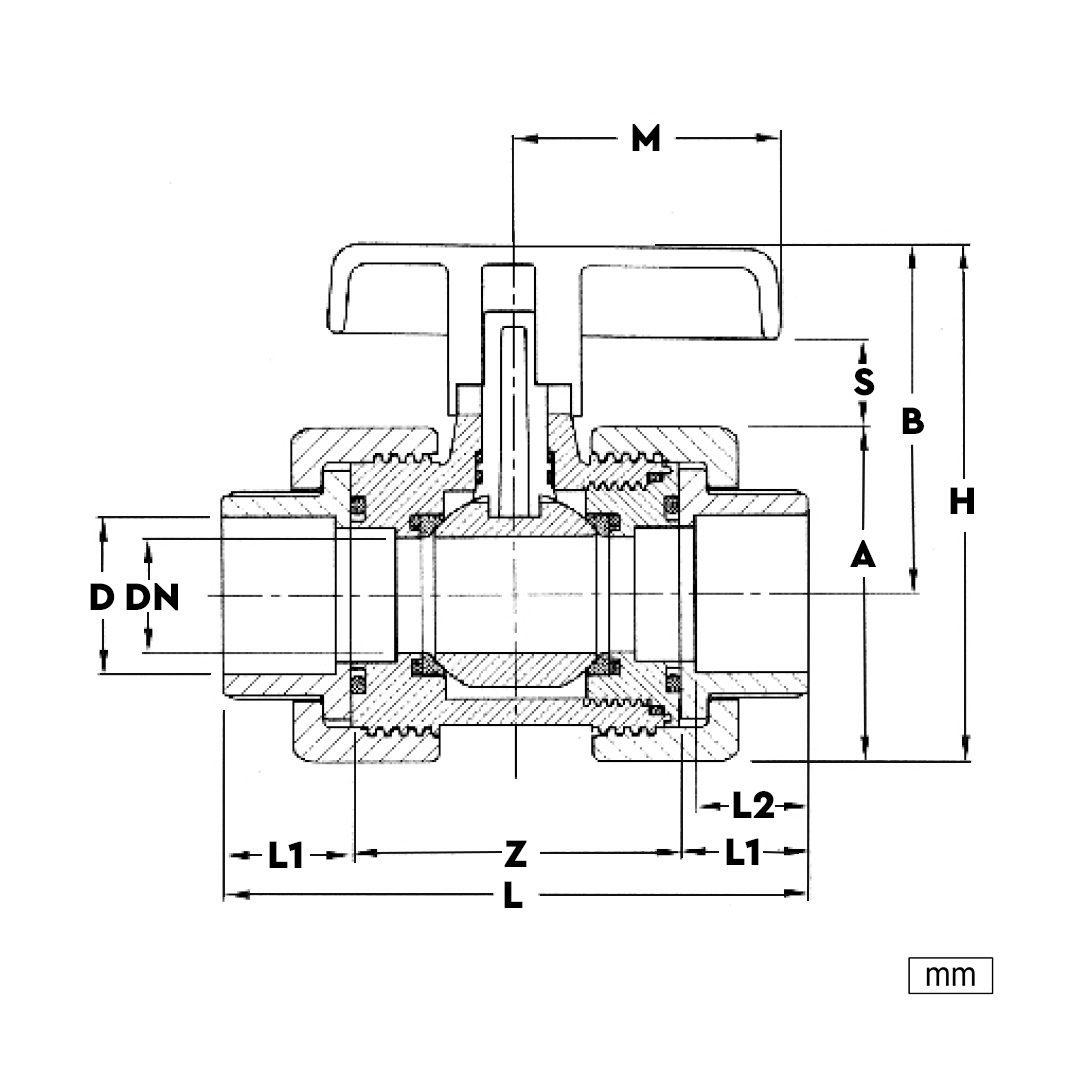

Dimensions & Performances
ZOOM IN
| Code | Ø | DN | A | B | H | L | M | S | Z | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01 61 1077 050 | 50 | 40 | 95 | 93 | 141 | 157 | 65 | 21 | 88 | 34,5 | 31 |
| 01 61 1077 063 | 63 | 50 | 115 | 107 | 164 | 190 | 74 | 23 | 102 | 44 | 38 |
| 01 61 1077 075 | 75 | 65 | 151 | 122 | 197 | 214 | 100 | 25 | 116 | 49 | 44 |
