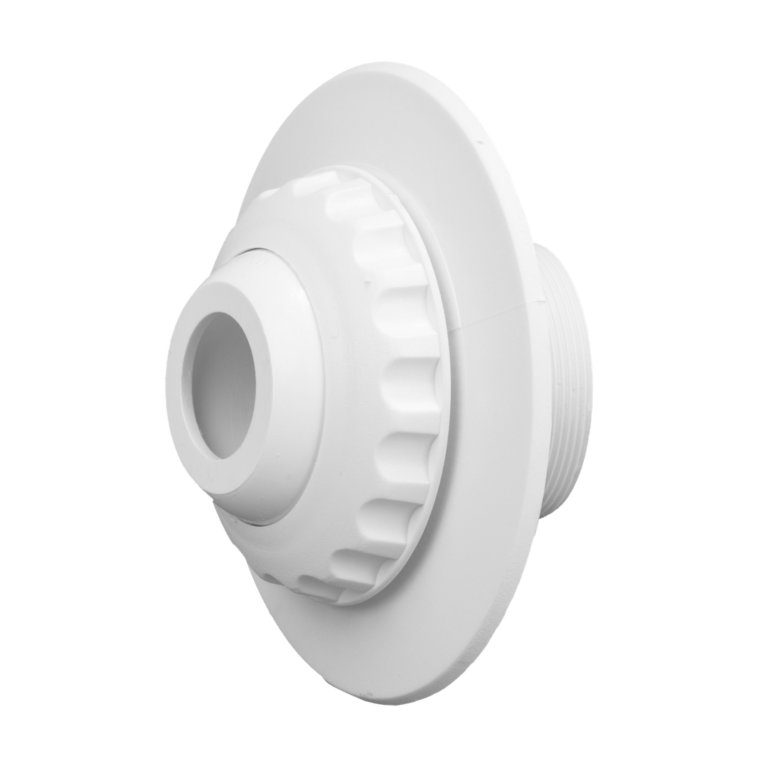

RI-150S

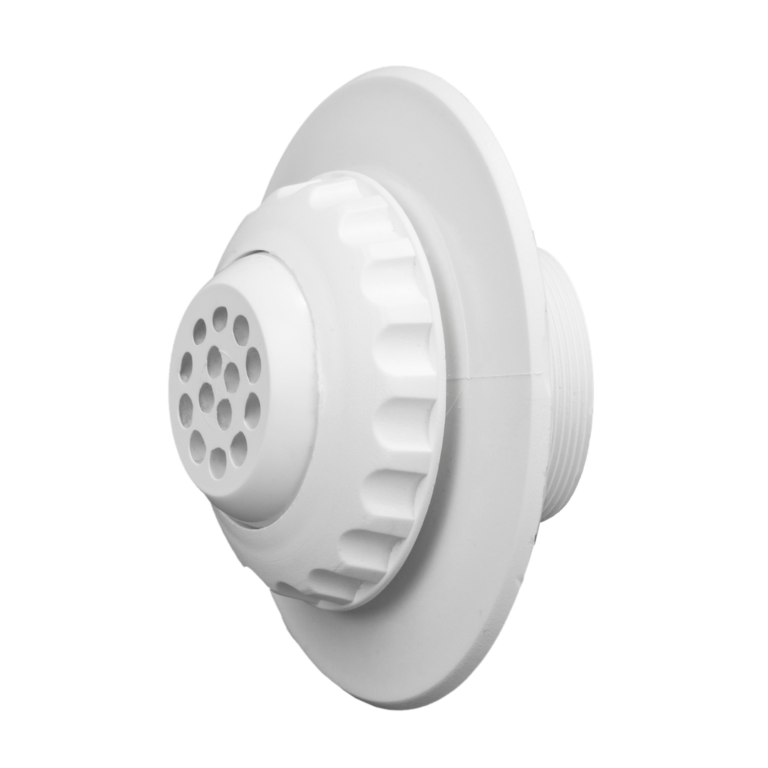

RI-150S/SFT

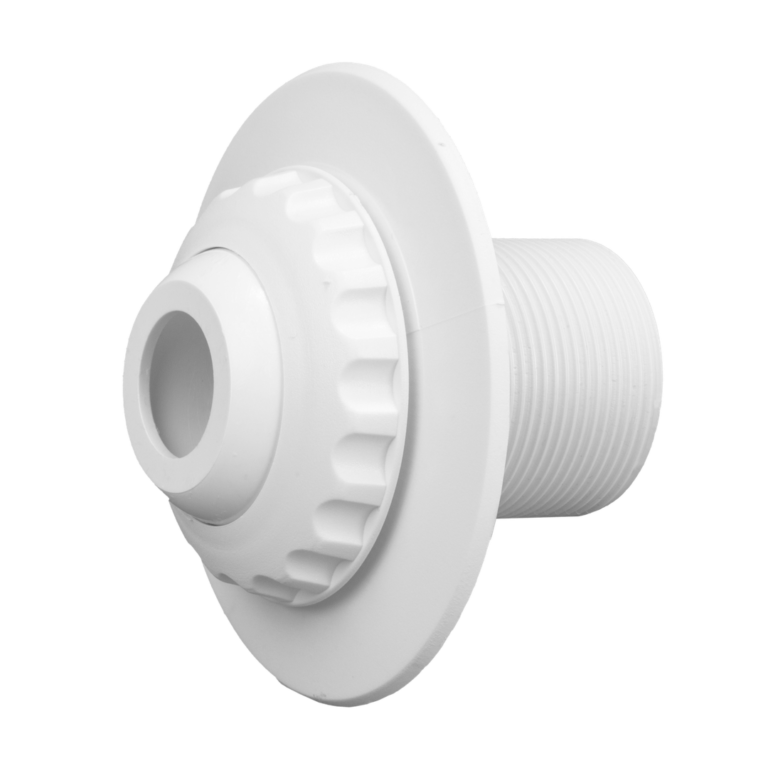

RI-150

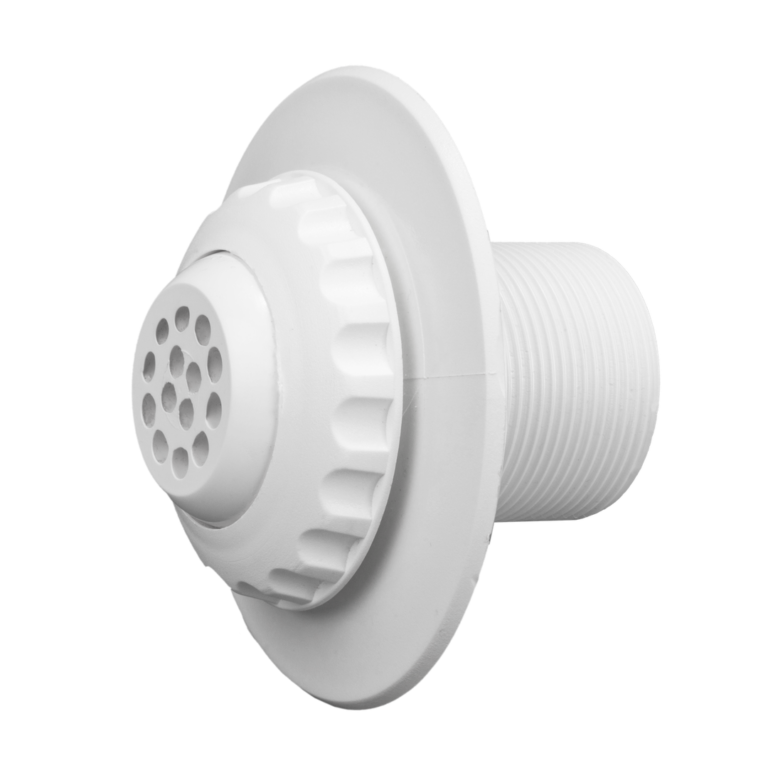

RI-150/SFT

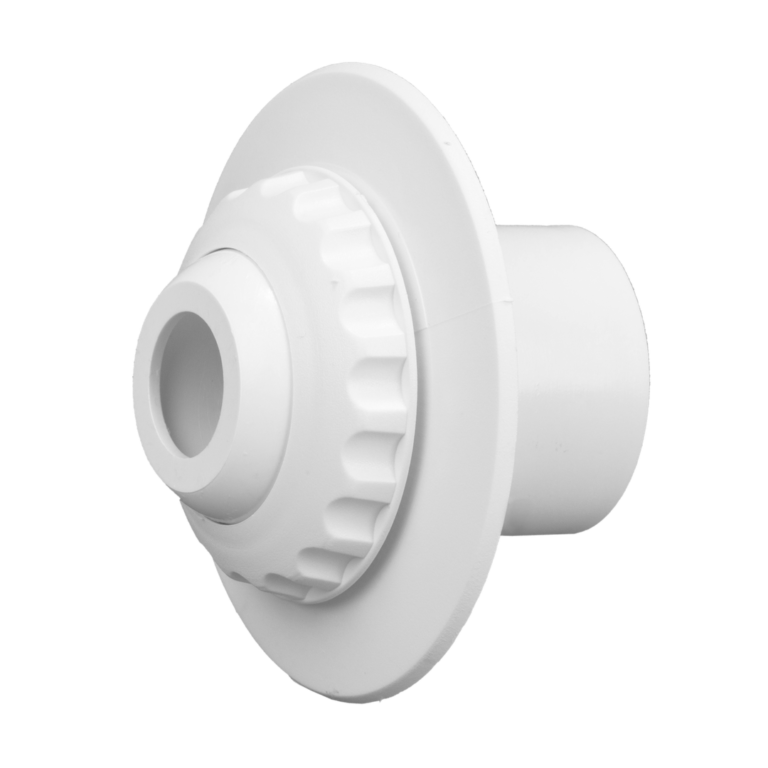

RI-151

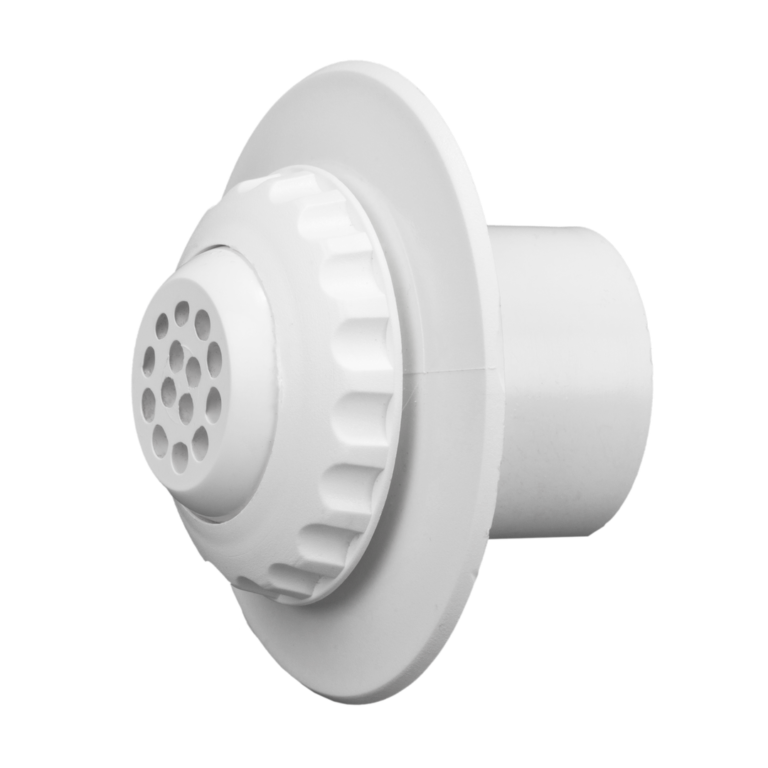

RI-151/SFT

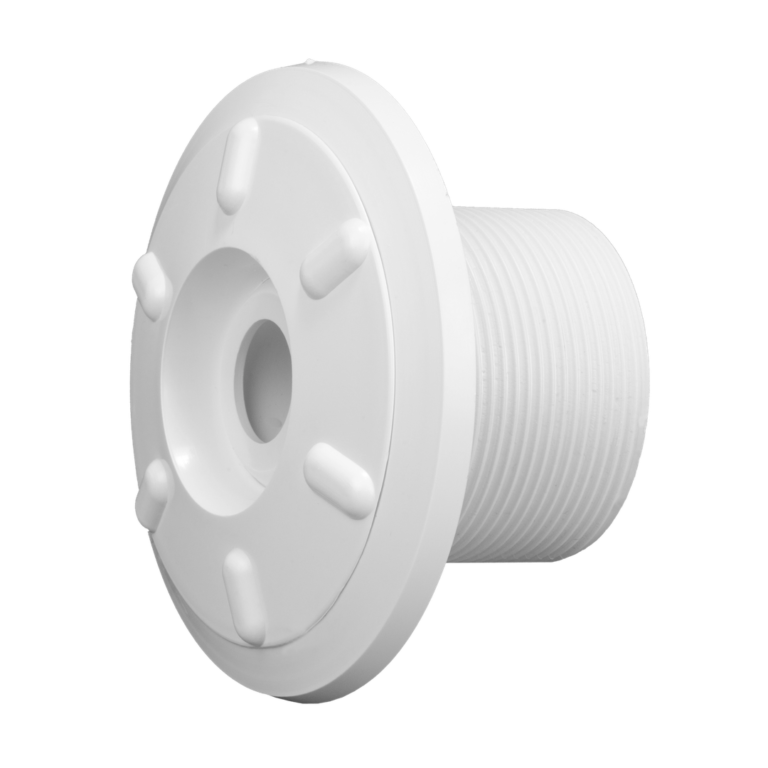

RI-200

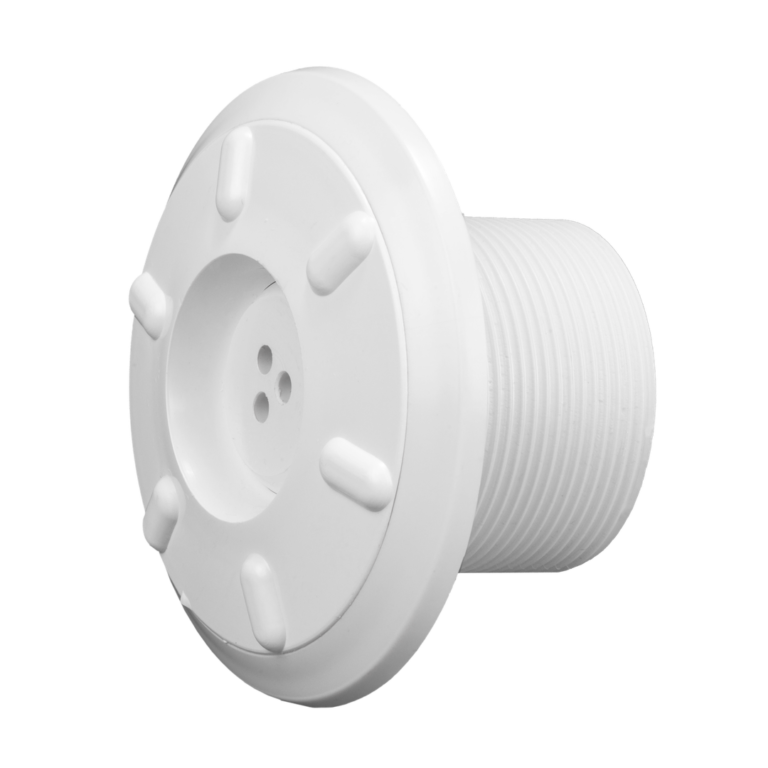

RI-200/SFT

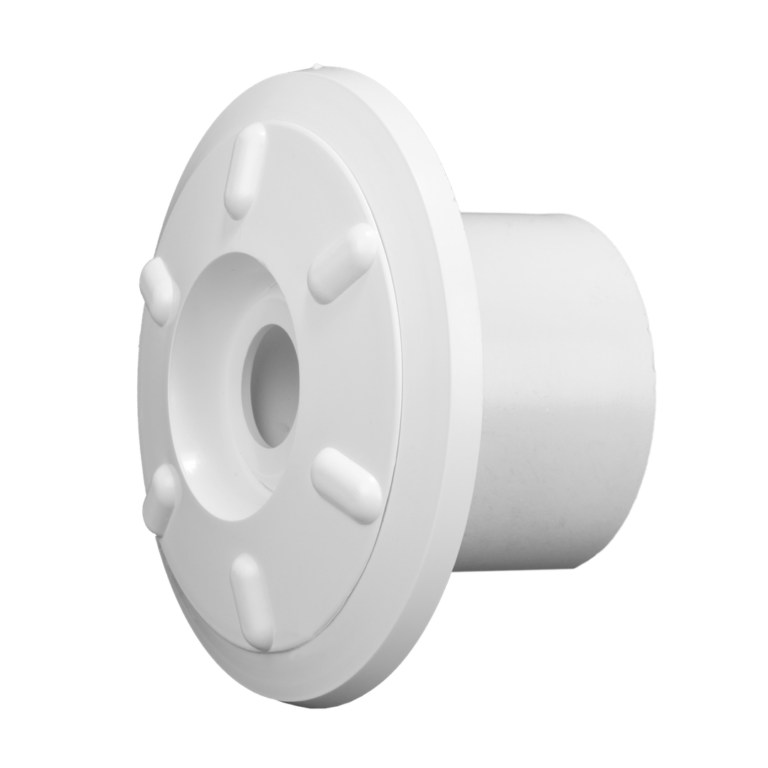

RI-201, RI-630

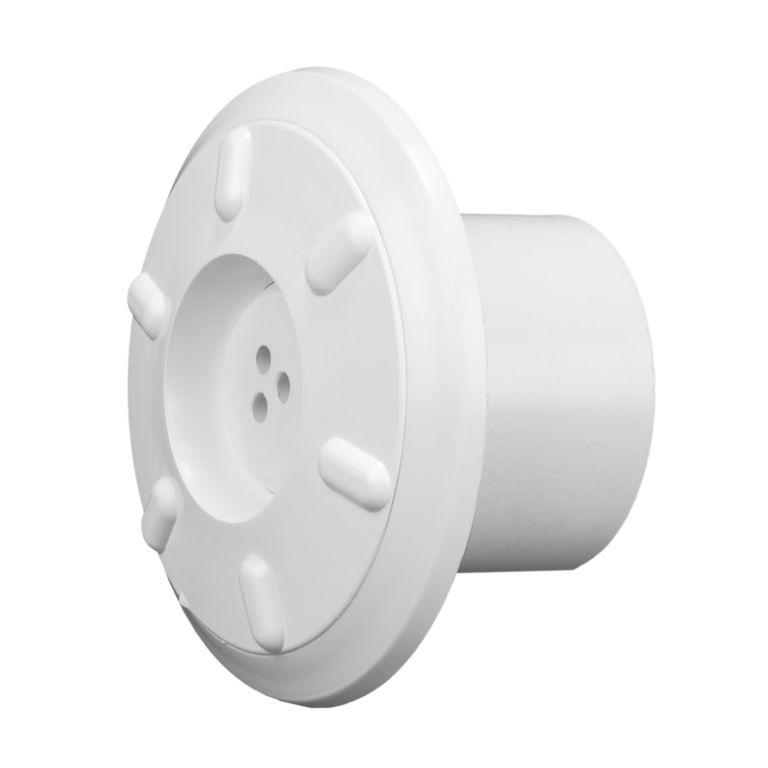

RI-201/SFT, RI-630/SFT
RI-150S/SFT
RI-150
RI-150/SFT
RI-151
RI-151/SFT
RI-200
RI-200/SFT
RI-201, RI-630
RI-201/SFT, RI-630/SFT
Specifications
- Highly resistant ABS material.
- Available eyeballs: STANDARD or SAFETY (EN-13451 compliant).
- Directional eyeball.
- Eyeball orifice: 8, 12, 16, 20mm (supplied with standard eyeball size Ø20. Otherwise, please indicate required size).
Flow rate/eyeball orifice:
– Ø8: 1.5m³/h
– Ø12: 2.5m³/h
– Ø16: 3.5m³/h
– Ø20: 5.0m³/h - Designed for concrete swimming pools.
- UV protection.
Dimensions & Performances
ZOOM IN

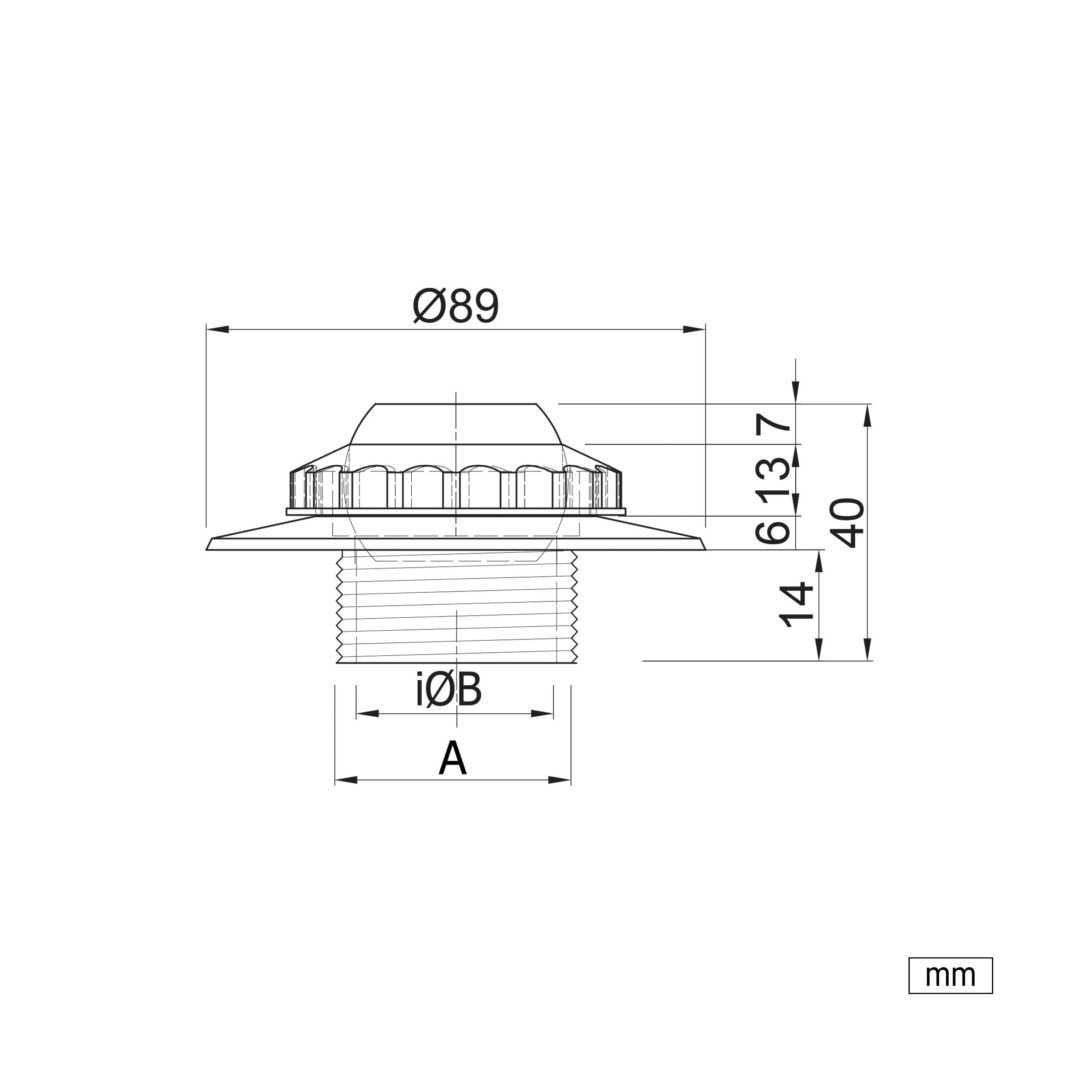

RI-150S
RI-150S, RI-150

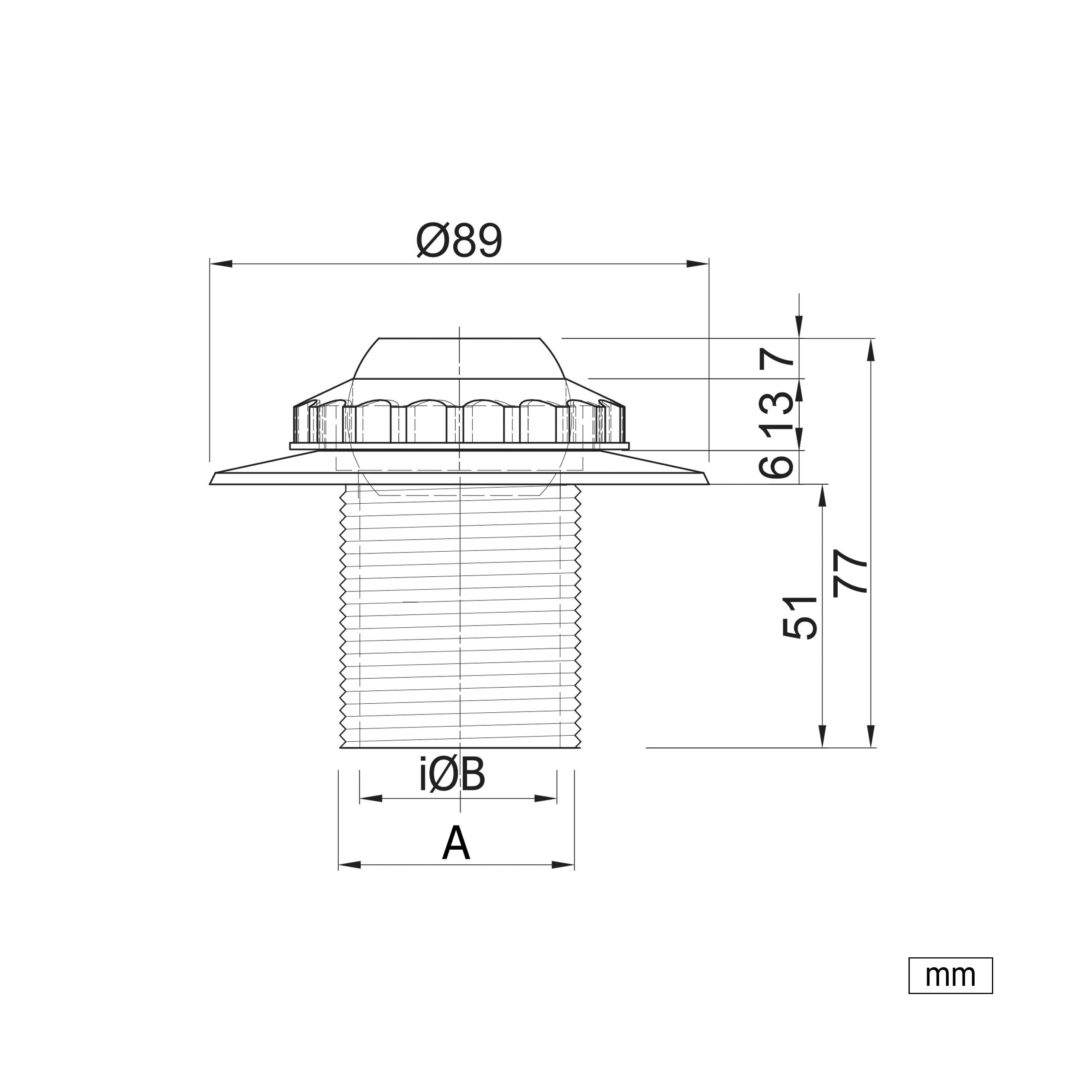

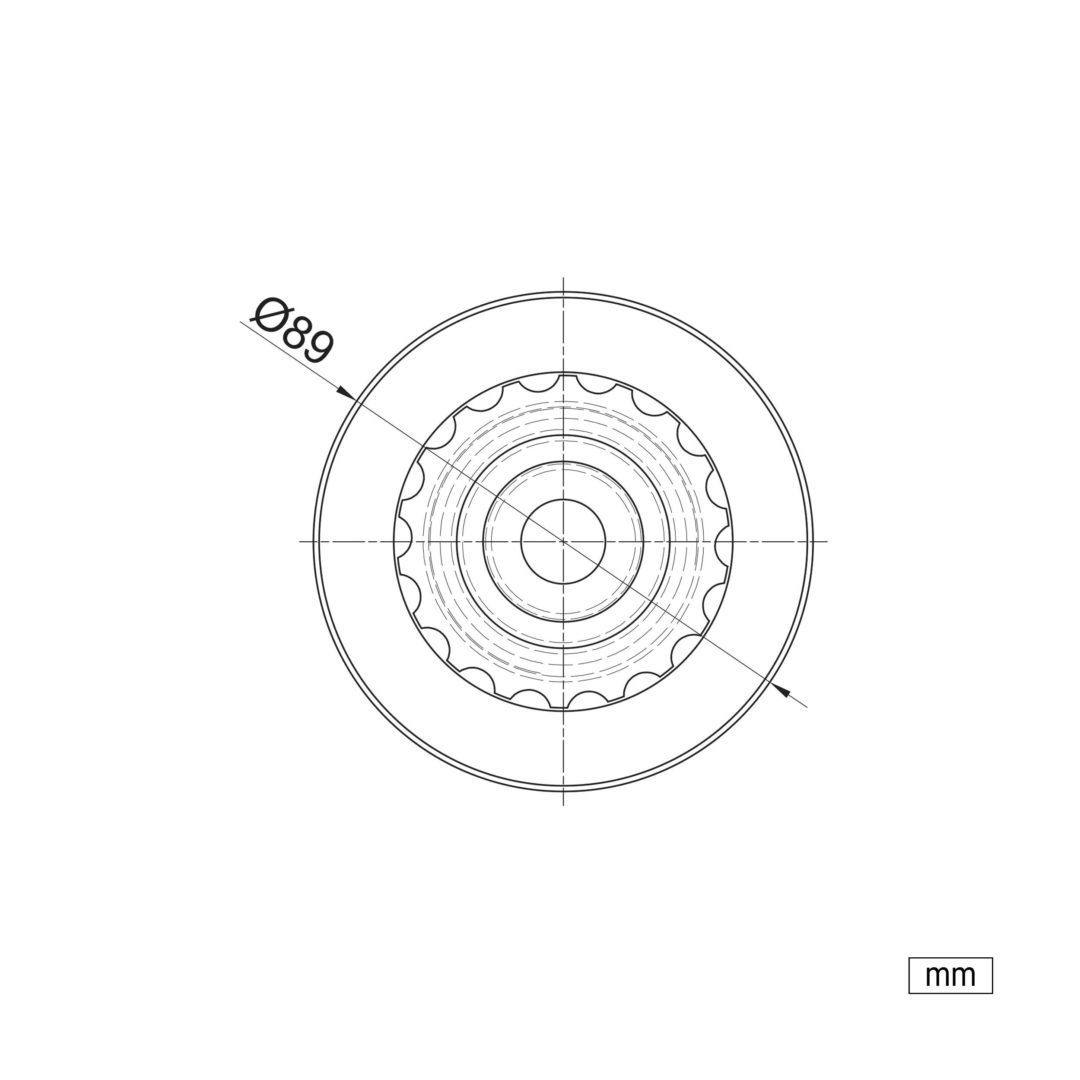

RI-150

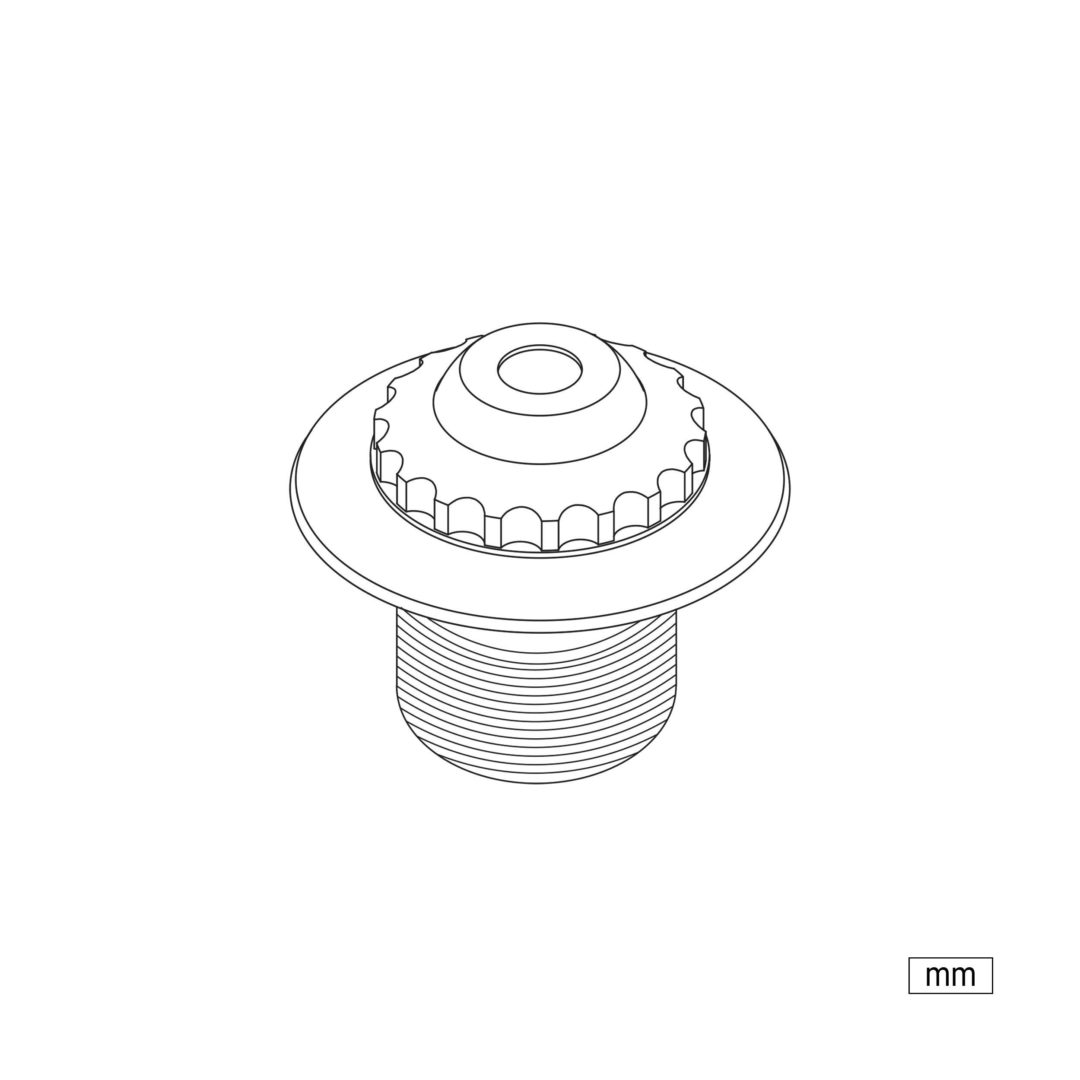

RI-150

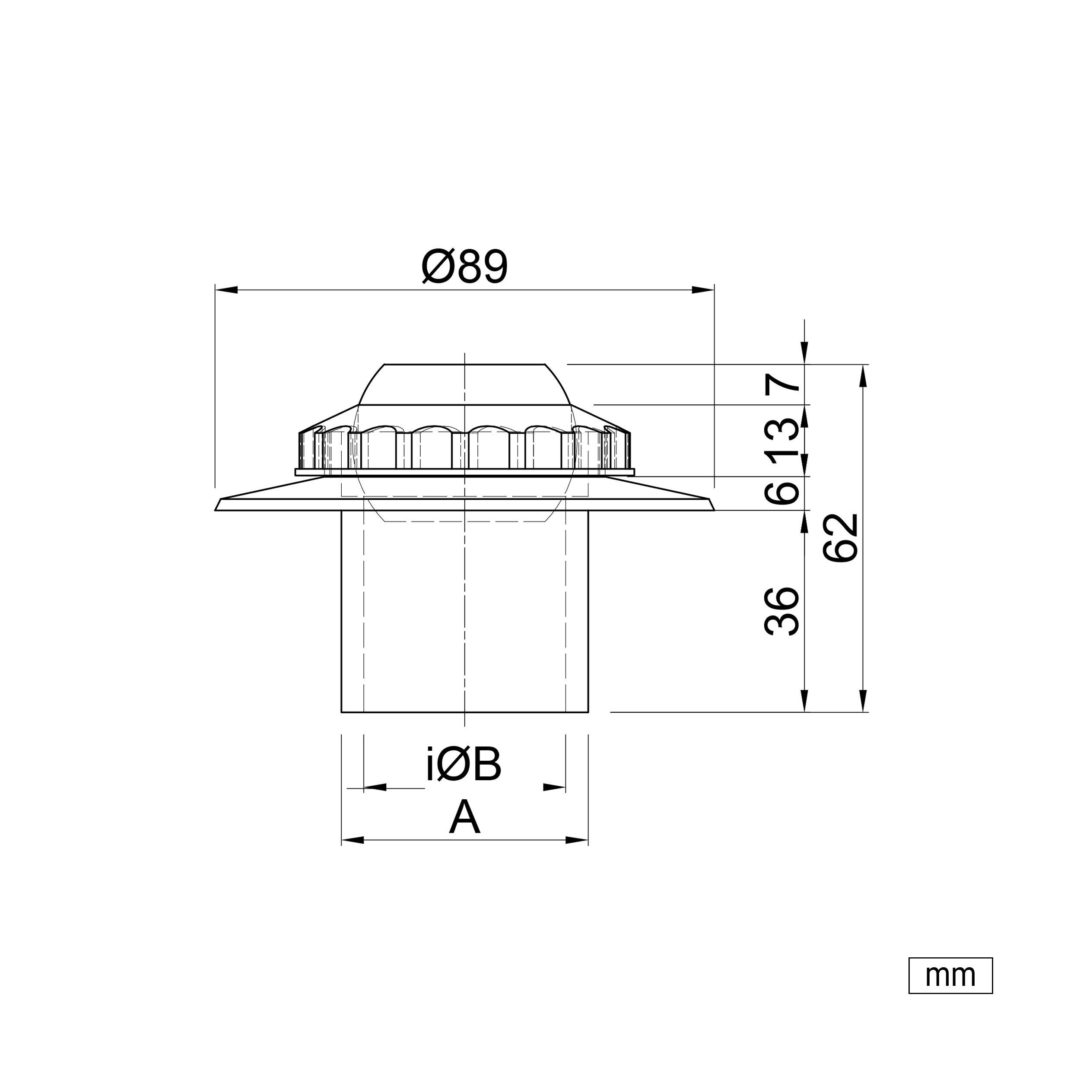

RI-151, RI-151/SFT
RI-151

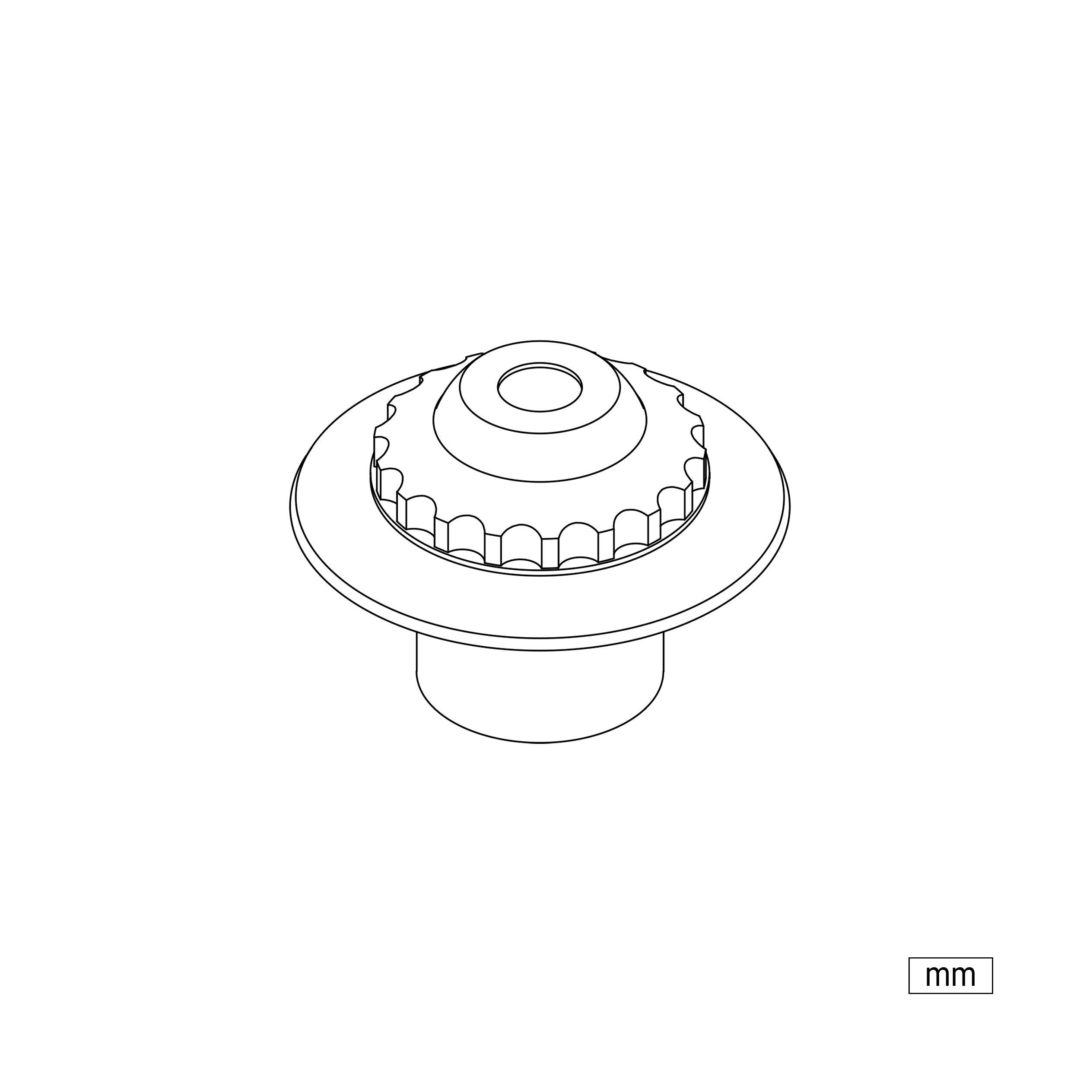

RI-151

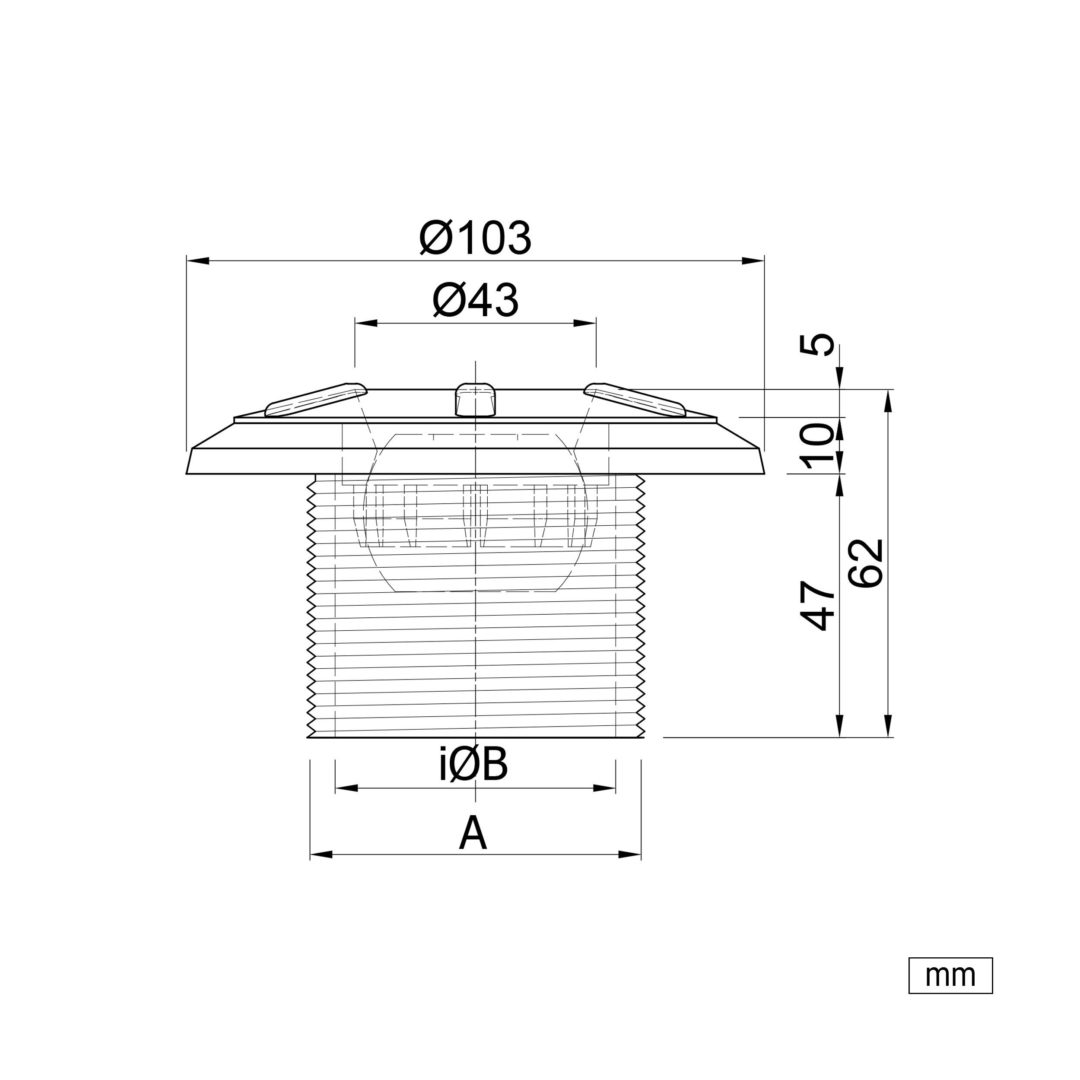

RI-200, RI-200/SFT

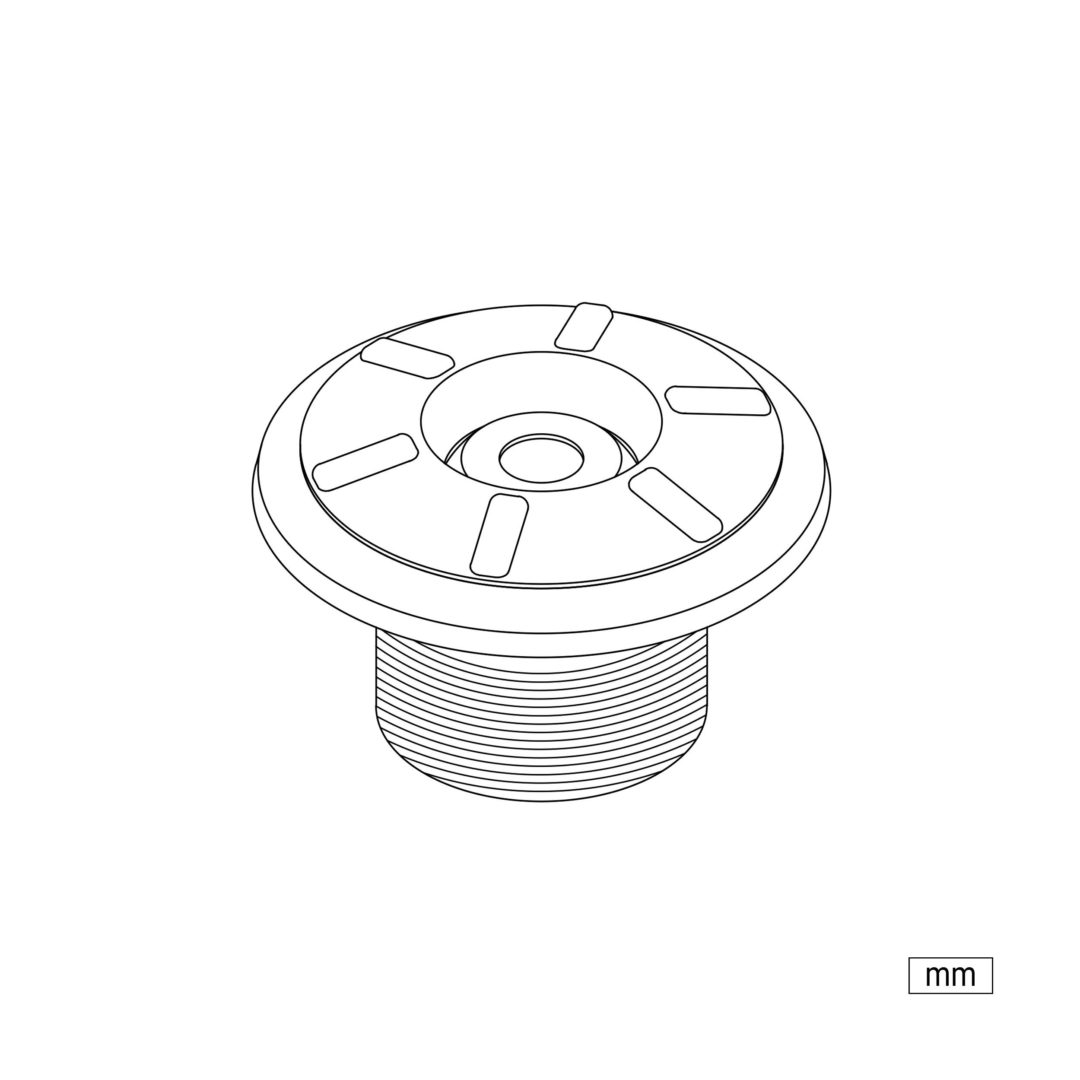

RI-200

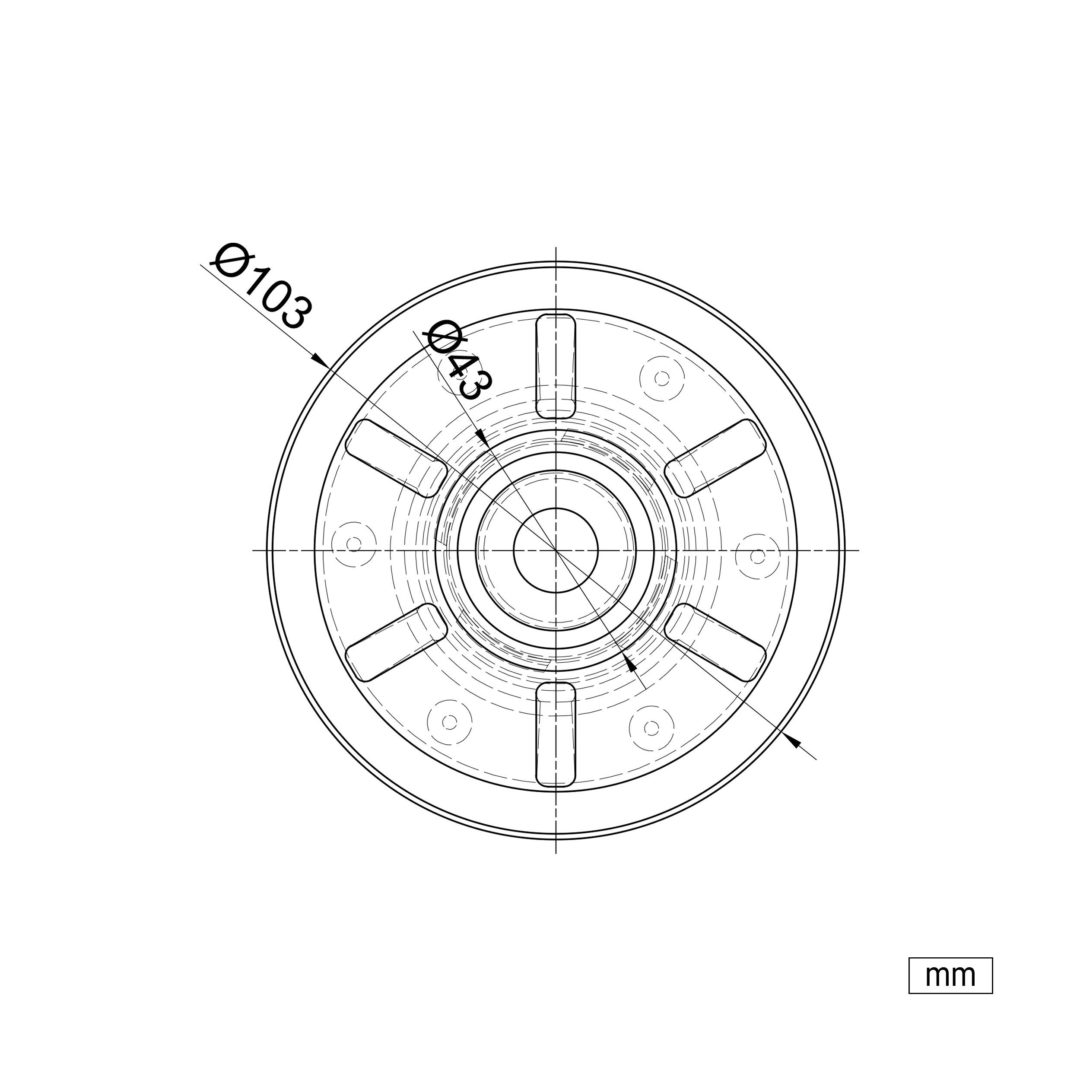

RI-200
RI-630, RI-630/SFT, RI-630T, RI-630T/SFT, RI-201, RI-201/SFT

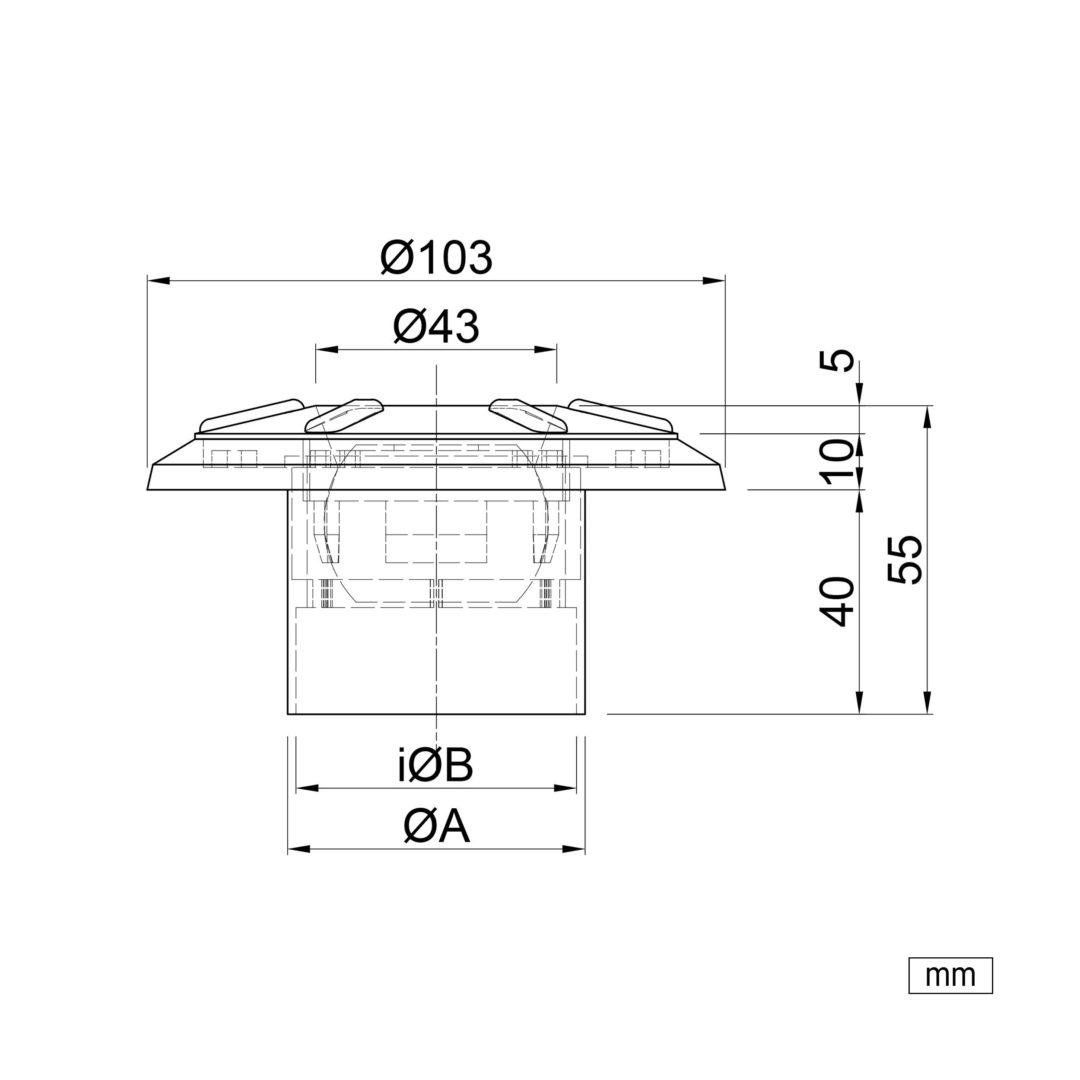

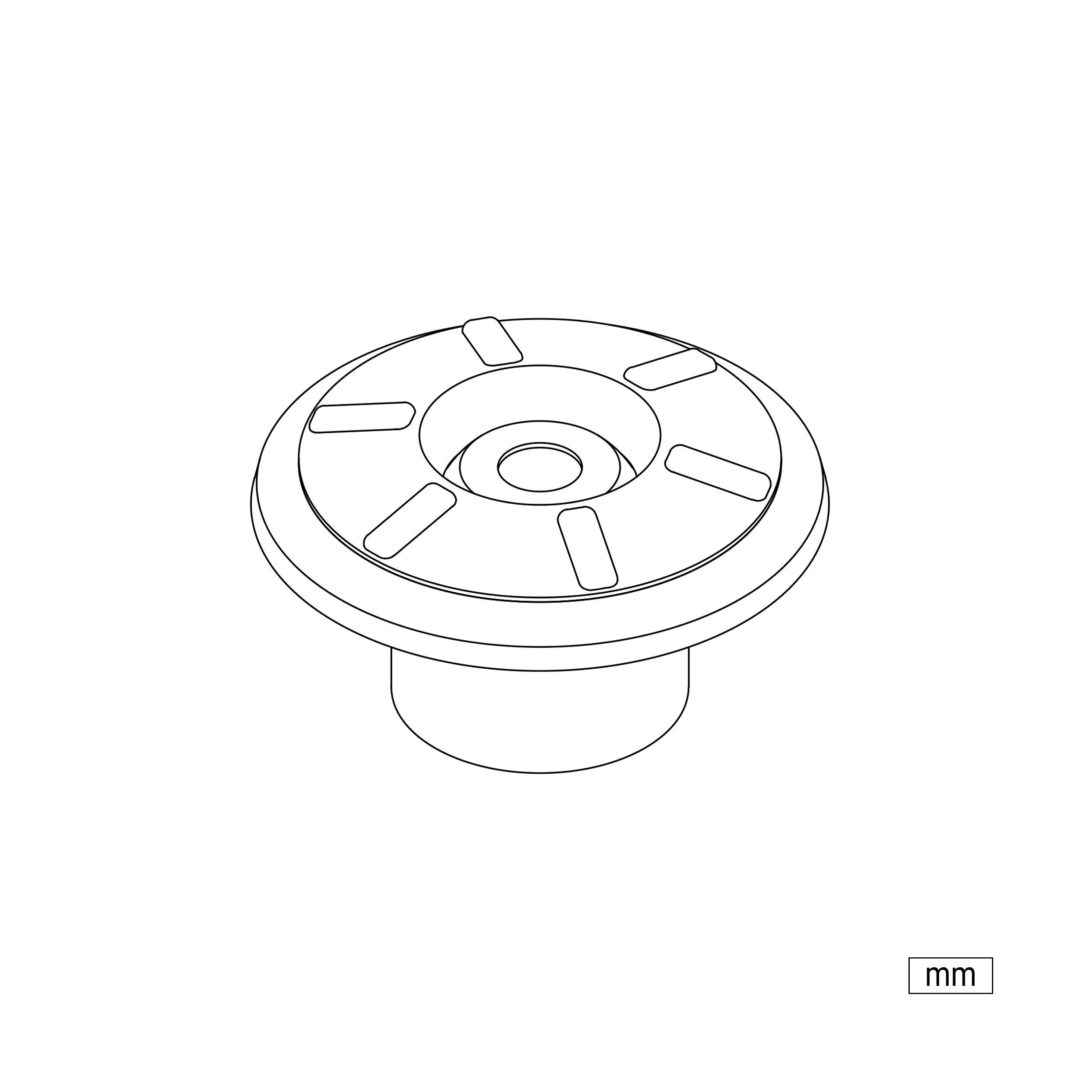

RI-201
RI-201
| Model | Connection | A (mm) | B (mm) |
|---|---|---|---|
| RI-150S | 1½” thread | 1½” | 40 |
| RI-150S/SFT | 1½” thread | 1½” | 40 |
| RI-150 | 1½” thread | 1½” | 40 |
| RI-150/SFT | 1½” thread | 1½” | 40 |
| RI-200 | 2” thread | 2” | 50 |
| RI-200/SFT | 2” thread | 2” | 50 |
| RI-630 | 63mm | 56 | 50 |
| RI-630/SFT | 63mm | 56 | 50 |
| RI-630T | 63 mm PN16 | 53 | 50 |
| RI-630T/SFT | 63 mm PN16 | 53 | 50 |
| RI-151 | 1½” slip | 41 | 36 |
| RI-151/SFT | 1½” slip | 41 | 36 |
| RI-201 | 2” slip | 53 | 50 |
| RI-201/SFT | 2” slip | 53 | 50 |
