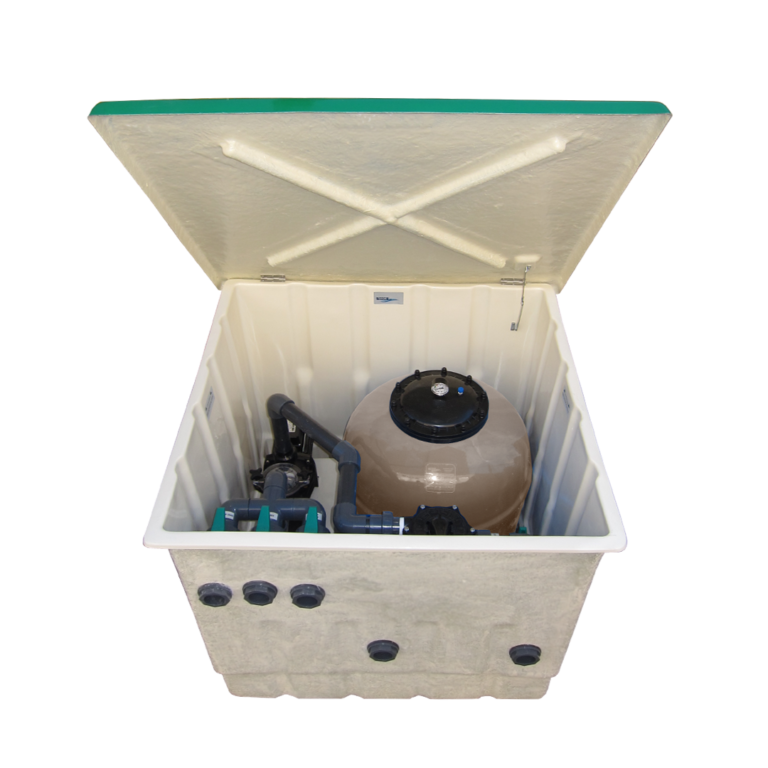

Filtration housing made of polyester with fiberglass and a reinforced cover.
Available in three different sizes, either empty or fully equipped and ready for operation.
Α complete filtration housing includes: a filter, pump, multiport valve, pressure gauge, five ball valves (main drain, skimmer, vacuum, drainage, and return), and all required connection fittings.
Upon request, additional equipment can be pre-installed, such as an electrical control panel (230/380V), salt electrolysis system, pH controller, or submersible pump for impure water.
Customize your filtration housing by selecting the filter and pump that best suit your needs from our catalogue.

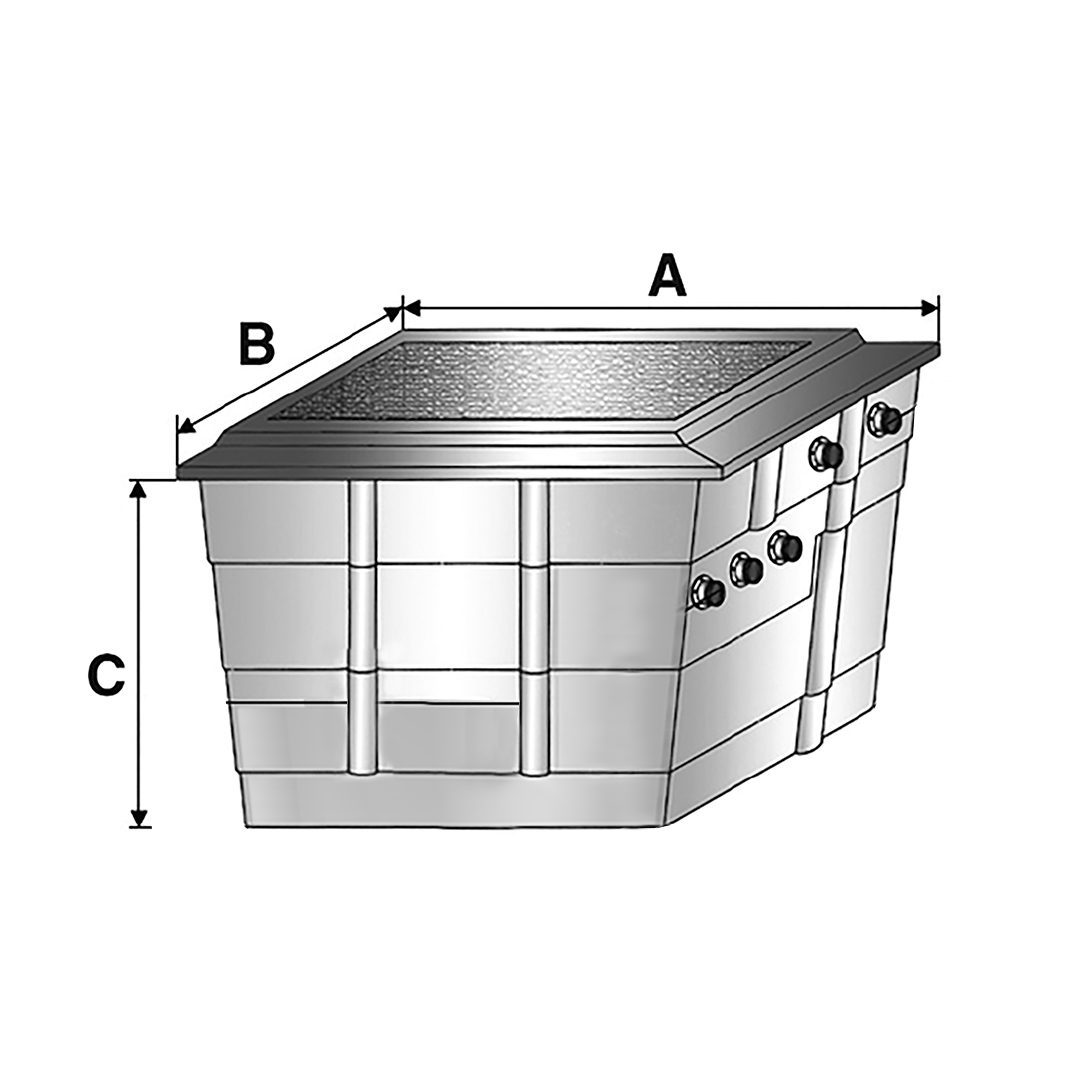

| Code | Flow rate | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| FHA-GPN8-MP050 | 8m³/h | 1000 | 1000 | 900 |
| FHA-GPN14-MP075 | 14m³/h | 1000 | 1000 | 900 |
| FHA-GPN14-MP100 | 14m³/h | 1000 | 1000 | 900 |
| FHAM-GPN22-LIFE201 | 22m³/h | 1720 | 1180 | 1110 |
| FHAL-GPN32-LIFE301 | 32m³/h | 1900 | 1600 | 1300 |
| FHE-100100 | BODY ONLY | 1000 | 1000 | 900 |
| FHE-172118 | BODY ONLY | 1720 | 1180 | 1110 |
| FHE-190160 | BODY ONLY | 1900 | 1600 | 1300 |
