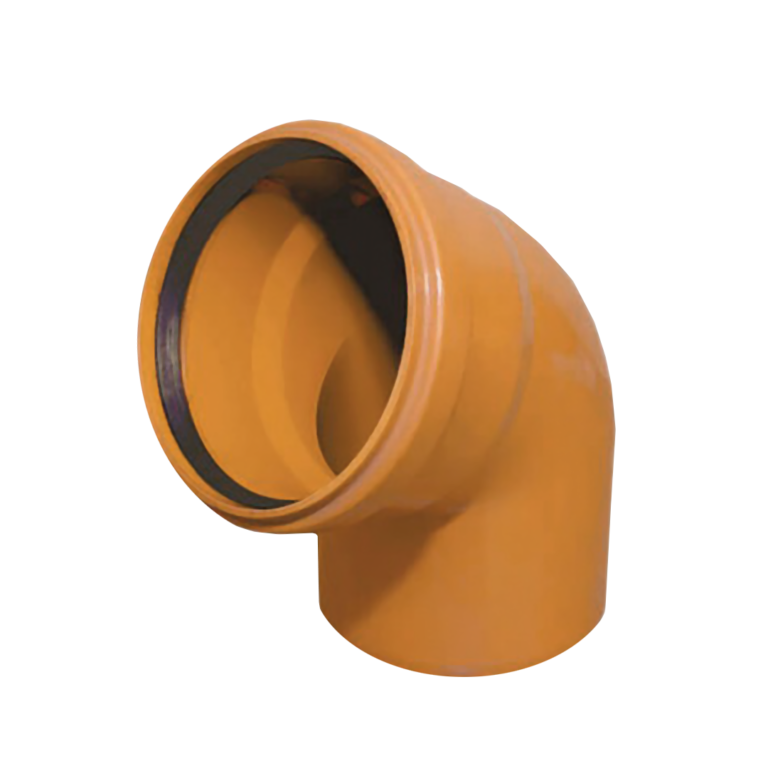

Bend 67,5° with O-ring
MODEL:
211110673000
Pipes for domestic and street sewerage systems together with the appropriate coupling sleeves are intended to be used for the removal of all kinds of wastewater.
They are produced from unplasticized polyvinyl chloride (PVC-U).

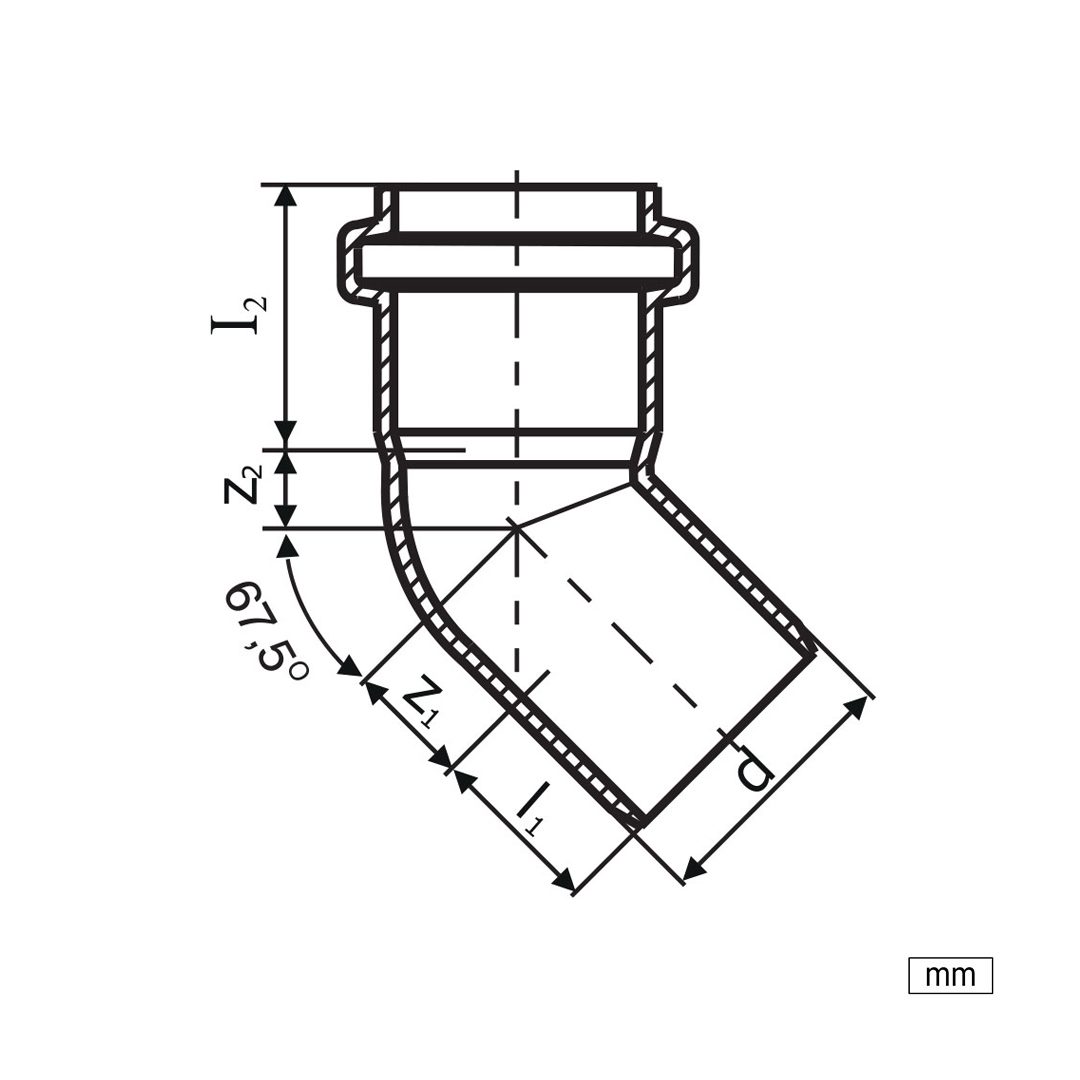

Dimensions & Performances
ZOOM IN
| Code | D | S | Z 1 | Z 2 | I 1 min | I 2 |
|---|---|---|---|---|---|---|
| 211110673000 | 110 | 3,3 | 54,67 | 43,68 | 61 | 49,1 |
| 211125673000 | 125 | 3,3 | 59,475 | 51,07 | 68 | 54,6 |
| 211160673000 | 160 | 4 | 67,955 | 63,7 | 81 | 86 |
| 211200673000 | 200 | 4,9 | 61,81 | 80,74 | 99 | 106 |
| 211250673000 | 250 | 6,2 | 77,31 | 101,03 | 125 | 128 |
Catalogue
