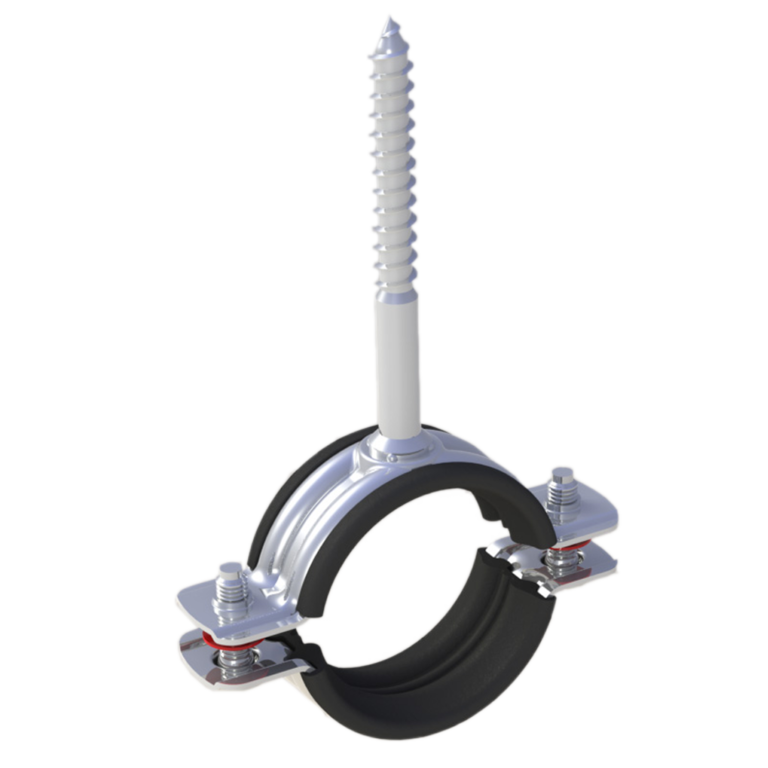

Pipe clamp with triphone & rubber
MODEL:
NTC
Galvanized pipe fittings are designed to support and fasten the pipes.
Used in the assembly of the pipes to the wall (vertically and horizontally), to the ceiling, and to the ground.
Available in many dimensions and for various applications.

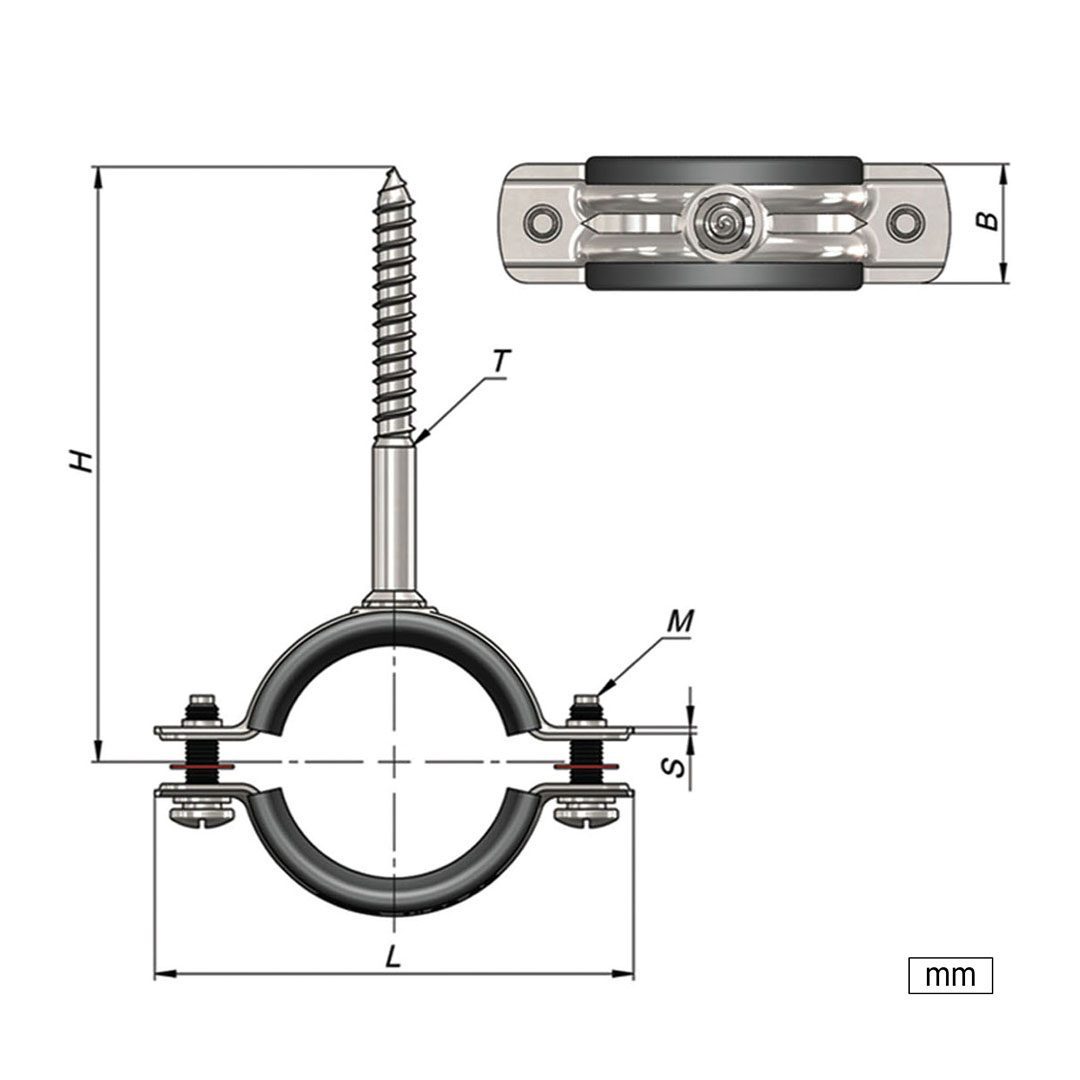

Dimensions & Performances
ZOOM IN
| Code | Size | Claming ragne (mm) | L (mm) | H (mm) | M | SxB (mm) | N | Quantity per box |
|---|---|---|---|---|---|---|---|---|
| NTC010 | 3/8” | 17-23 | 58,5 | 86 | M5 | 1,0×20 | Ø 7×70 | 150 |
| NTC015 | 1/2” | 21-26 | 62,5 | 88 | M5 | 1,0×20 | Ø 7×70 | 150 |
| NTC020 | 3/4” | 26-30 | 68,5 | 91 | M5 | 1,0×20 | Ø 7×70 | 125 |
| NTC025 | 1” | 33-37 | 76 | 94,5 | M5 | 1,0×20 | Ø 7×70 | 100 |
| NTC032 | 1¼” | 40-46 | 91,5 | 99 | M5 | 1,2×20 | Ø 7×70 | 75 |
| NTC040 | 1½” | 48-53 | 99 | 102,5 | M5 | 1,2×20 | Ø 7×70 | 50 |
| NTC050 | 2” | 60-66 | 112 | 109 | M5 | 1,2×20 | Ø 7×70 | 50 |
| NTC065 | 2½” | 75-84 | 134 | 118 | M6 | 1,5×25 | Ø 7×70 | 25 |
