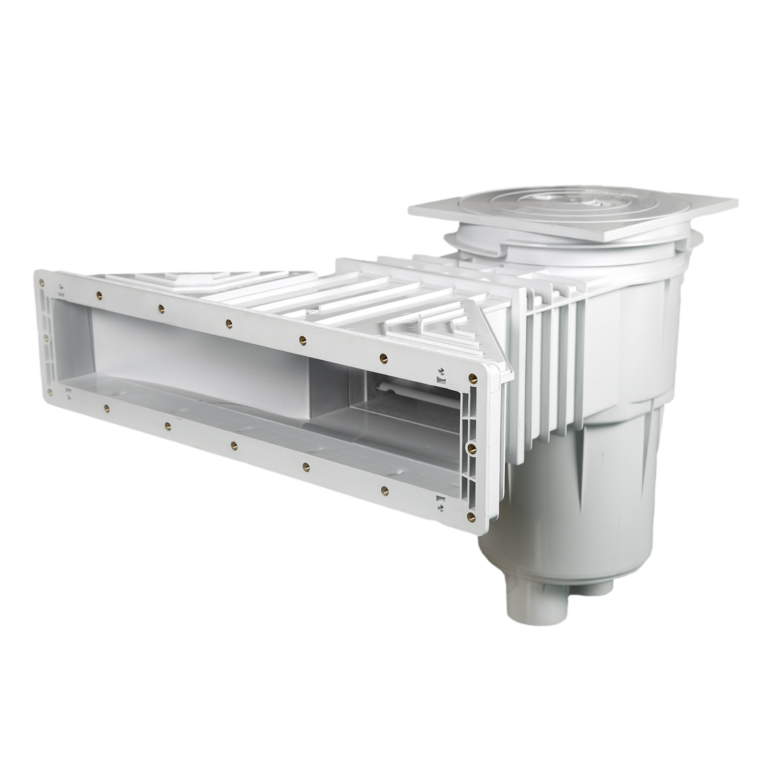

Specifications
- Extra-large basket with twist lock system.
- Safety lid.
- Two vertical exits: one in 1½” female thread and one in 2″ female thread. Seal off plug and ring are supplied.

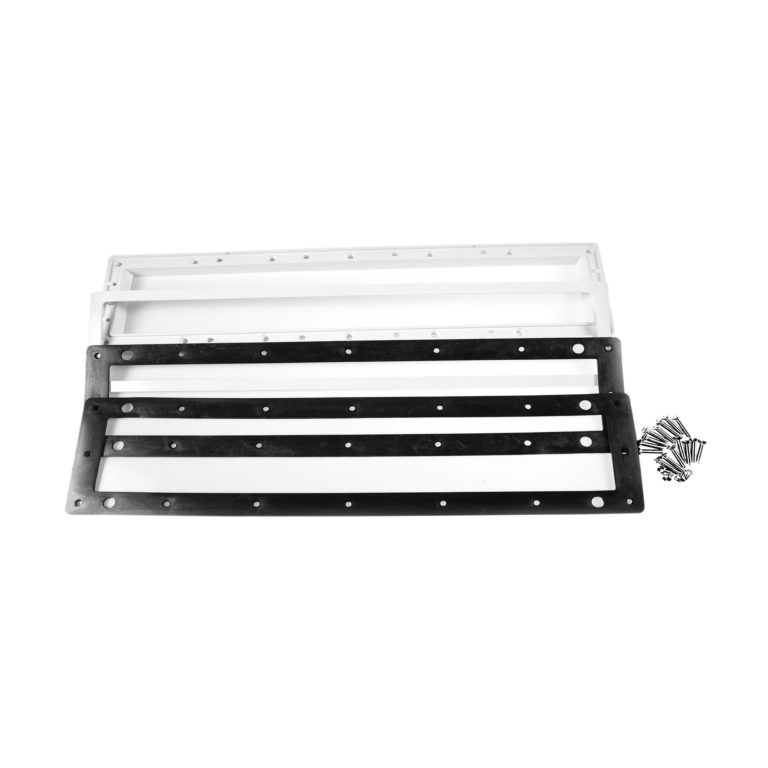

- 2 x Seals.
- Skimmer flange.
- AISI-316 stainless steel screw kit.
- Screws for fastening to flange cover panel.
- Flow rate: 15m³/h.
- UV protection.
Dimensions & Performances
ZOOM IN
| Model | A (mm) | A1 (mm) | B (mm) | C (mm) | C3 (mm) | D2 (mm) | E1 (mm) | F (mm) | G (mm) | H (mm) | L (mm) | N (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LHLS-200 | 483,8 | 14,5 | 250,3 | 634 | 117,4 | 142,5 | 539,1 | 60 | 45 | 60 | 32 | 249,2 |
