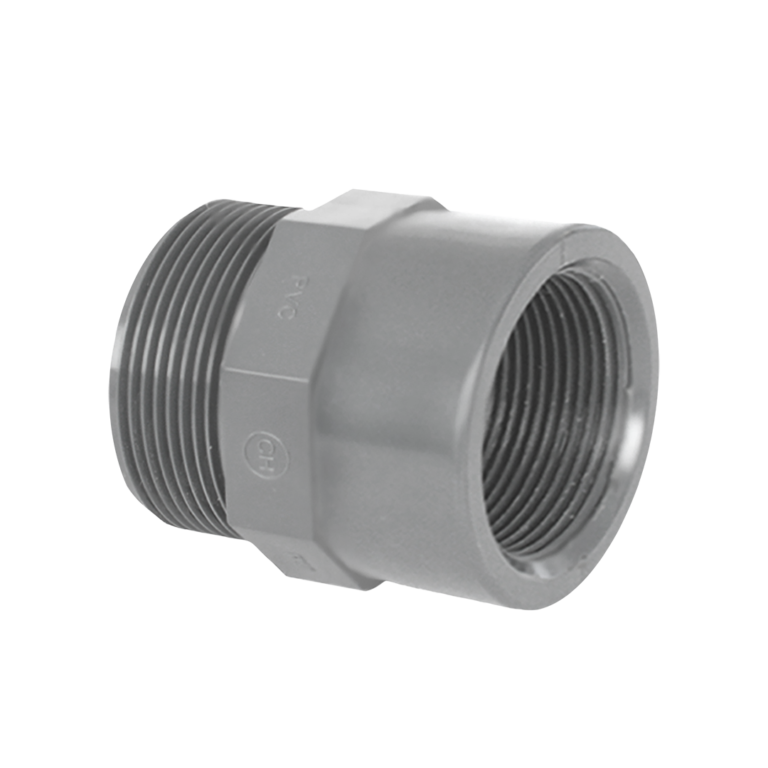

Long-reducing nipple female/male

Name: Long-reducing nipple female/male
SKU: 7211
Price: 1.00 EUR
Availability: InStock

MODEL: 7211

MANUFACTURER:

Code

Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

Cement joint fittings:
From 16mm to 140mm = PN16.
From 160mm to 315mm = PN10.
Threaded fittings:
All sizes PN10.

Assembly:

The use of PTFE film is recommended for threaded fittings.
The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

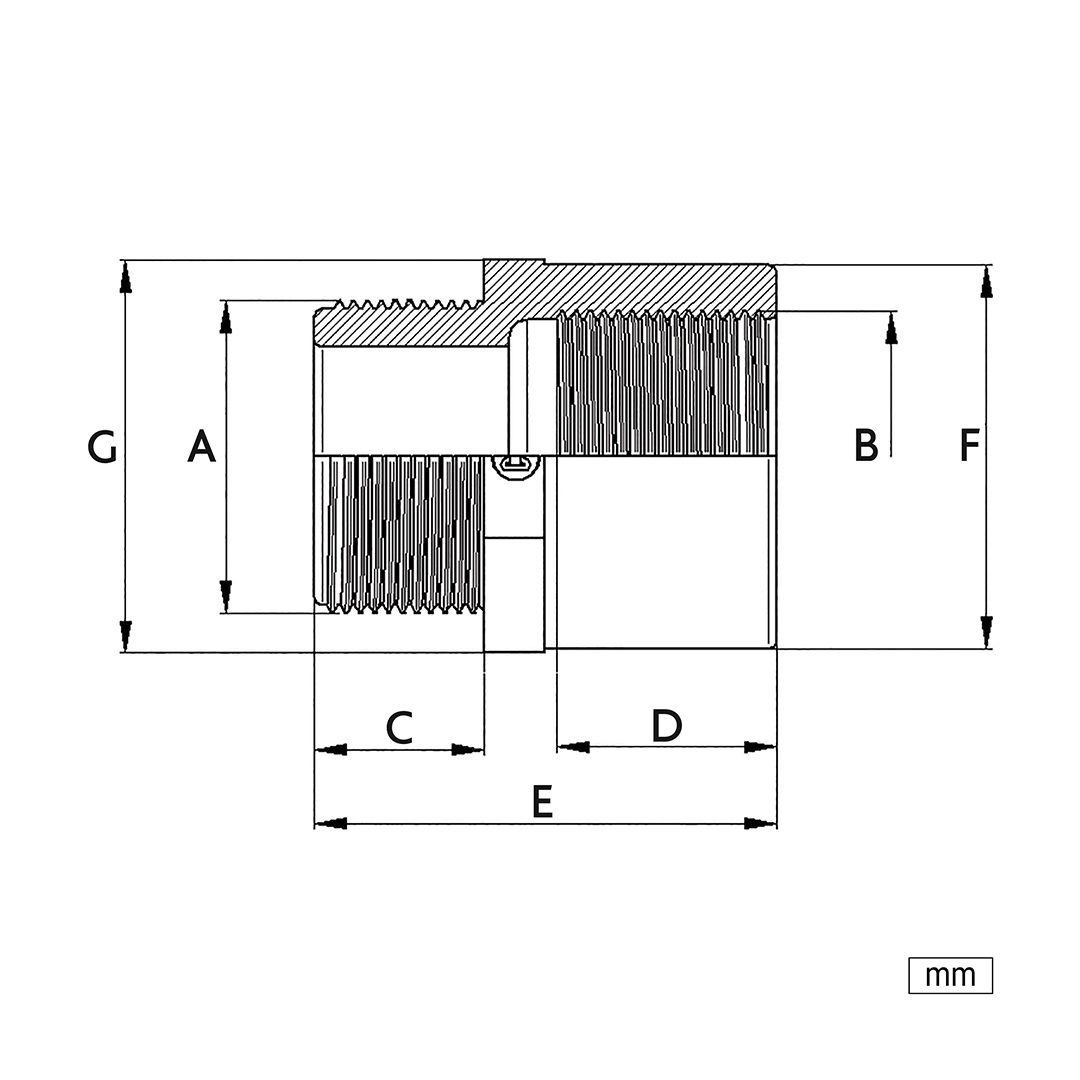

Code	DN	AxB	C	D	E	F	G	Ø
7211016	10	⅜”−⅜”	12	14	34	20	22	⅜”−⅜”
7211017	10	⅜”−½”	12	18	34	27	32	⅜”−½”
7211020	10	½”−⅜”	15	22	42	25	27	½”−⅜”
7211021	15	½”−½”	15	22	42	25	27	½”−½”
7211022	15	½”−¾”	15	21	41	32	36	½”−¾”
7211025	10	¾”−⅜”	18	20	45	25	32	¾”−⅜”
7211026	15	¾”−½”	17	20	45	29	32	¾”−½”
7211027	20	¾”−¾”	17	19	48	32	34	¾”−¾”
7211028	20	¾”−1”	17	25	47	41	41	¾”−1”
7211032	10	1”−⅜”	20	19	44	27	36	1”−⅜”
7211033	15	1”−½”	20	19	44	27	36	1”−½”
7211034	20	1”−¾”	20	19	53	32	36	1”−¾”
7211035	25	1”−1”	20	23	57	40	42	1”−1”
7211036	25	1”−1¼”	20	27	53	50	50	1”−1¼”
7211040	15	1 ¼”−½”	22	19	46	27	46	1 ¼”−½”
7211041	20	1 ¼”−¾”	22	21	47	33	46	1 ¼”−¾”
7211042	25	1 ¼”−1”	22	25	51	41	46	1 ¼”−1”
7211043	32	1 ¼”−1¼”	21	27	62	50	50	1 ¼”−1¼”
7211044	32	1 ¼”−1½”	22	30	57	63	63	1 ¼”−1½”
7211050	20	1½”−¾”	25	24	54	33	50	1½”−¾”
7211051	25	1½”−1”	25	26	56	41	50	1½”−1”
7211052	32	1½”−1¼”	25	28	66	50	50	1½”−1¼”
7211053	40	1½”− 1½”	28	41	76	63	64	1½”− 1½”
7211054	40	1½”−2”	22	35	64	75	75	1½”−2”
7211063	25	2”−1”	25	25	54	41	64	2”−1”
7211064	32	2”−1¼”	25	29	58	50	64	2”−1¼”
7211065	40	2”−1½”	25	35	73	63	64	2”−1½”
7211066	50	2”−2”	26	49	83	75	80	2”−2”
7211067	50	2”−2½”	26	35	72	90	90	2”−2½”
7211075	32	2½”−1¼”	30	27	57	53	80	2½”−1¼”
7211076	40	2½”−1½”	30	30	60	63	80	2½”−1½”
7211077	50	2½”− 2”	30	50	87	75	80	2½”− 2”
7211078	65	2½”−2½”	30	44	93	90	95	2½”−2½”
7211079	65	2½”−3”	30	43	81	110	110	2½”−3”
7211090	40	3”−1½”	33	30	70	63	93	3”−1½”
7211091	50	3”−2”	33	35	75	75	93	3”−2”
7211092	65	3”−2½”	33	50	99	90	93	3”−2½”
7211093	80	3”−3”	33	52	109	110	115	3”−3”
7211094	80	3”−4”	33	50	97	135	135	3”−4”
7211110	50	4”−2”	40	39	86	75	120	4”−2”
7211111	65	4”−2½”	40	42	89	90	120	4”−2½”
7211112	80	4”−3”	40	43	92	108	120	4”−3”
7211113	100	4”−4”	40	55	123	125	129	4”−4”
