Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:

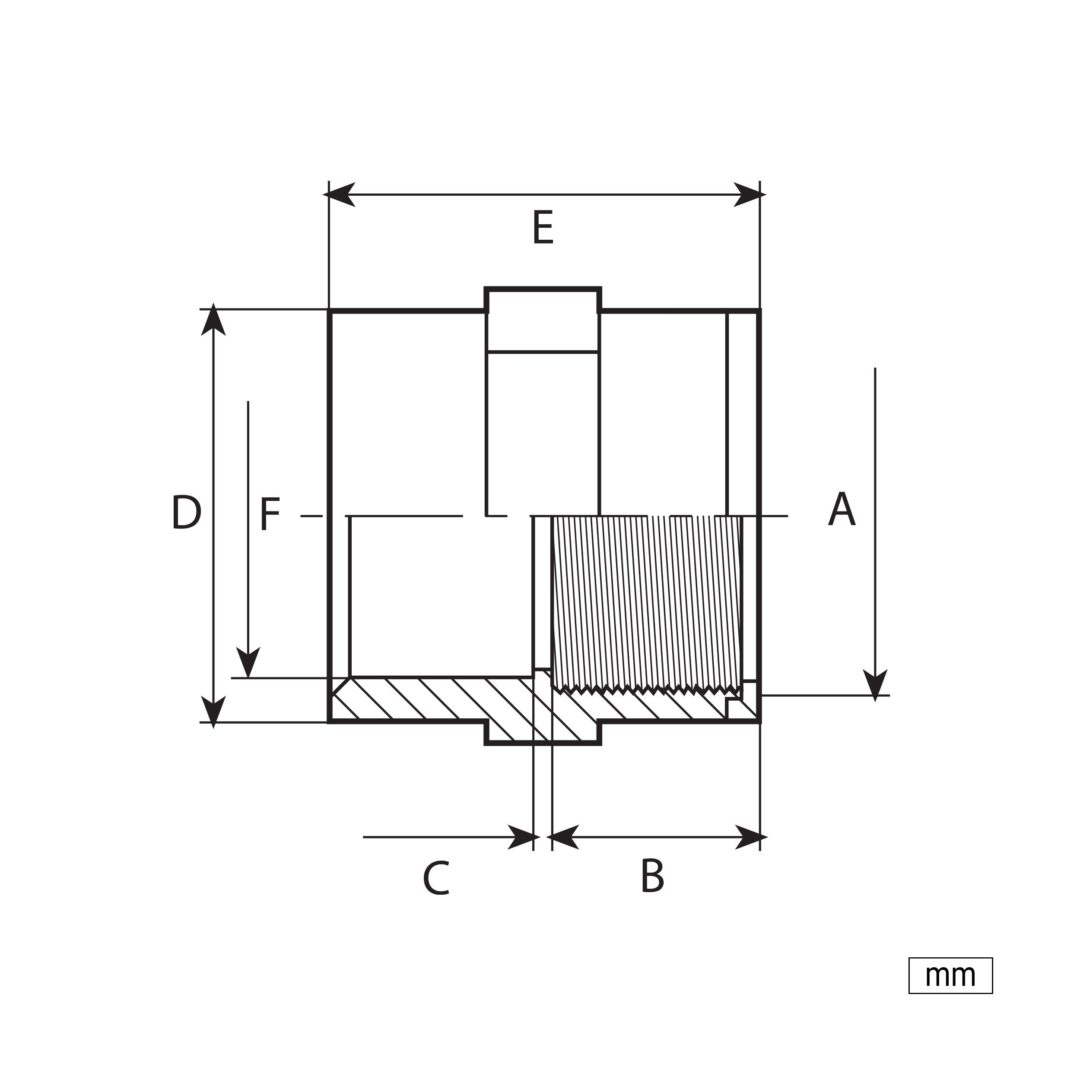

Code | Ø | A | B | C | D | E | F |
---|---|---|---|---|---|---|---|
7305620 | 20-1/2” | 1/2” | 16 | 3 | 27 | 35 | 20 |
7305625 | 25-3/4” | 3/4” | 19 | 3 | 33 | 41 | 25 |
7305632 | 32-1” | 1” | 22 | 3 | 41 | 47 | 32 |
7305640 | 40-1¼” | 1¼” | 26 | 3 | 50 | 55 | 40 |
7305650 | 50-1½” | 1½” | 31 | 3 | 61 | 65 | 50 |
7305663 | 63-2” | 2” | 38 | 3 | 75 | 79 | 63 |
